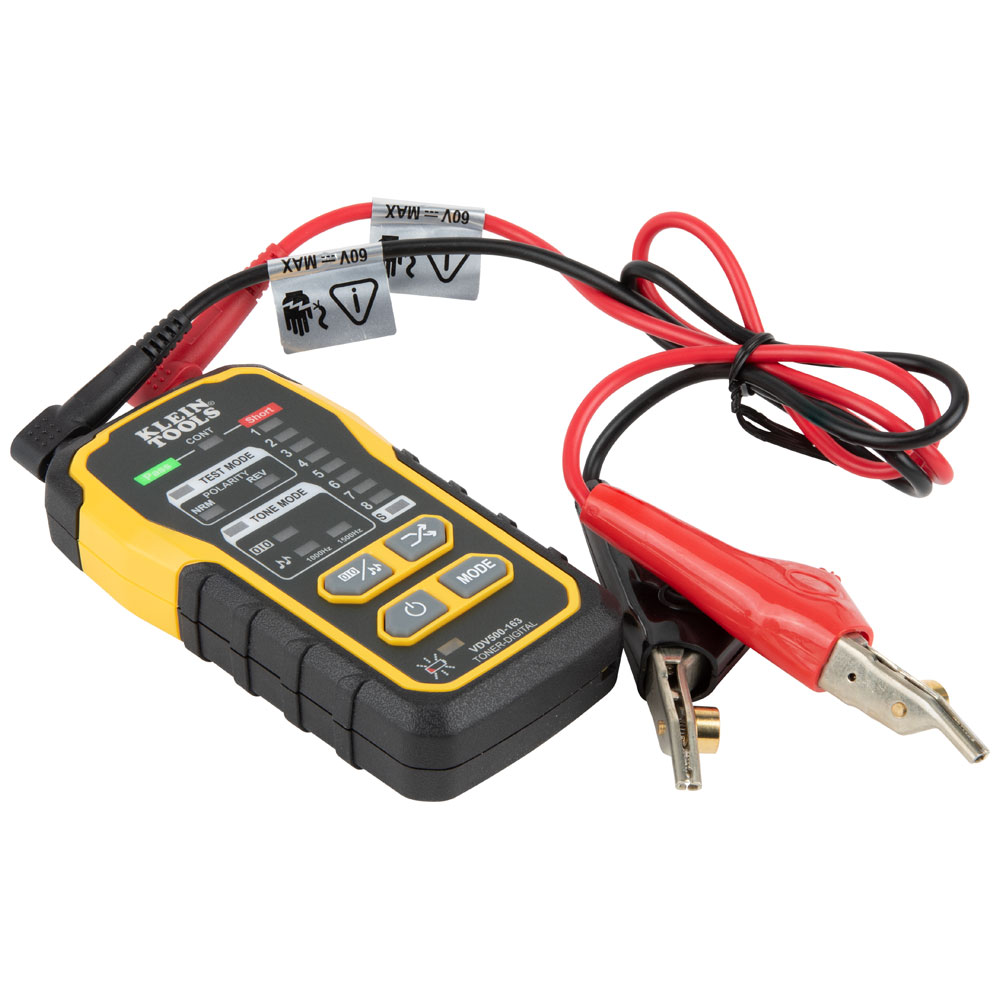

Digital Tone Generator
VDV500-163
- Digital tone generator traces and locates cables on an active network when used with Digital Tracing Probe (Cat. No. VDV500-223; sold separately)
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection (requires Digital Tracing Probe, (Cat. No. VDV500-223; sold separately)

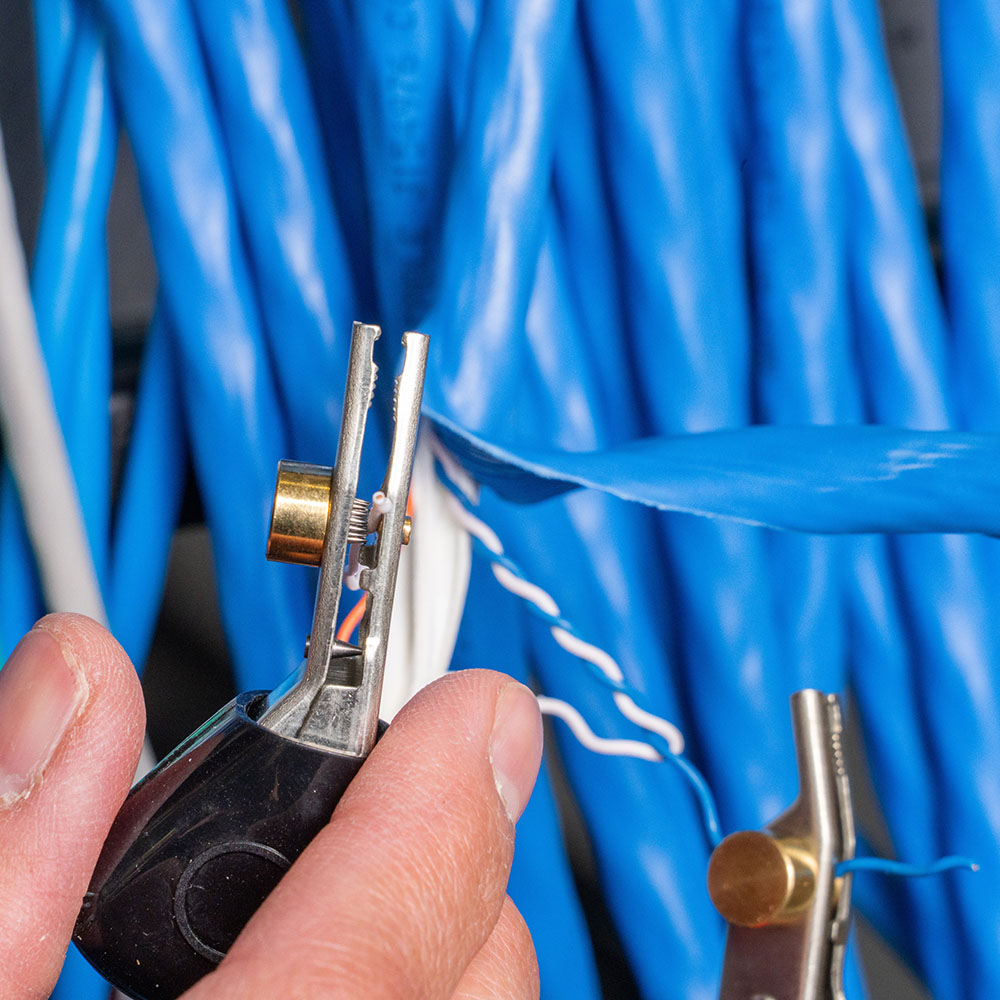

- Rugged Angled Bed of Nails (ABN) clips securely attach to wires

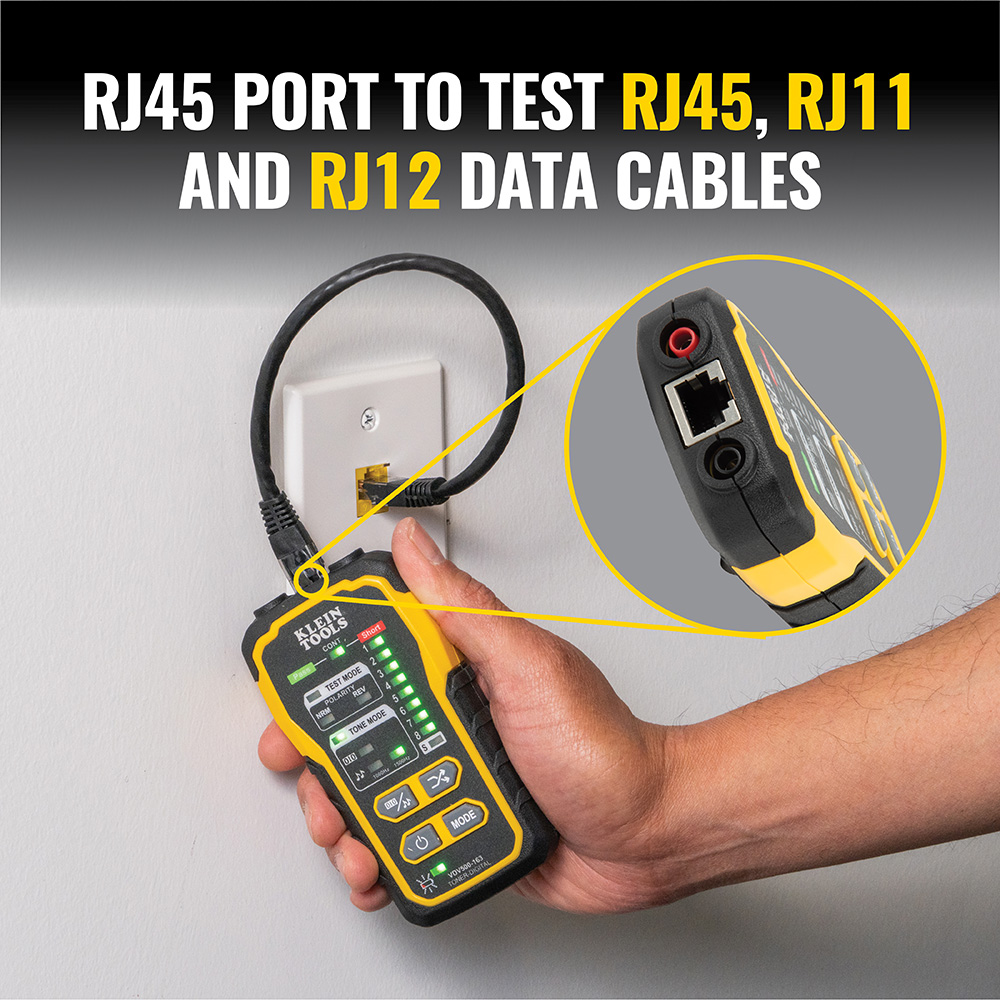

- RJ45 port to test RJ45, RJ11 and RJ12 data cables

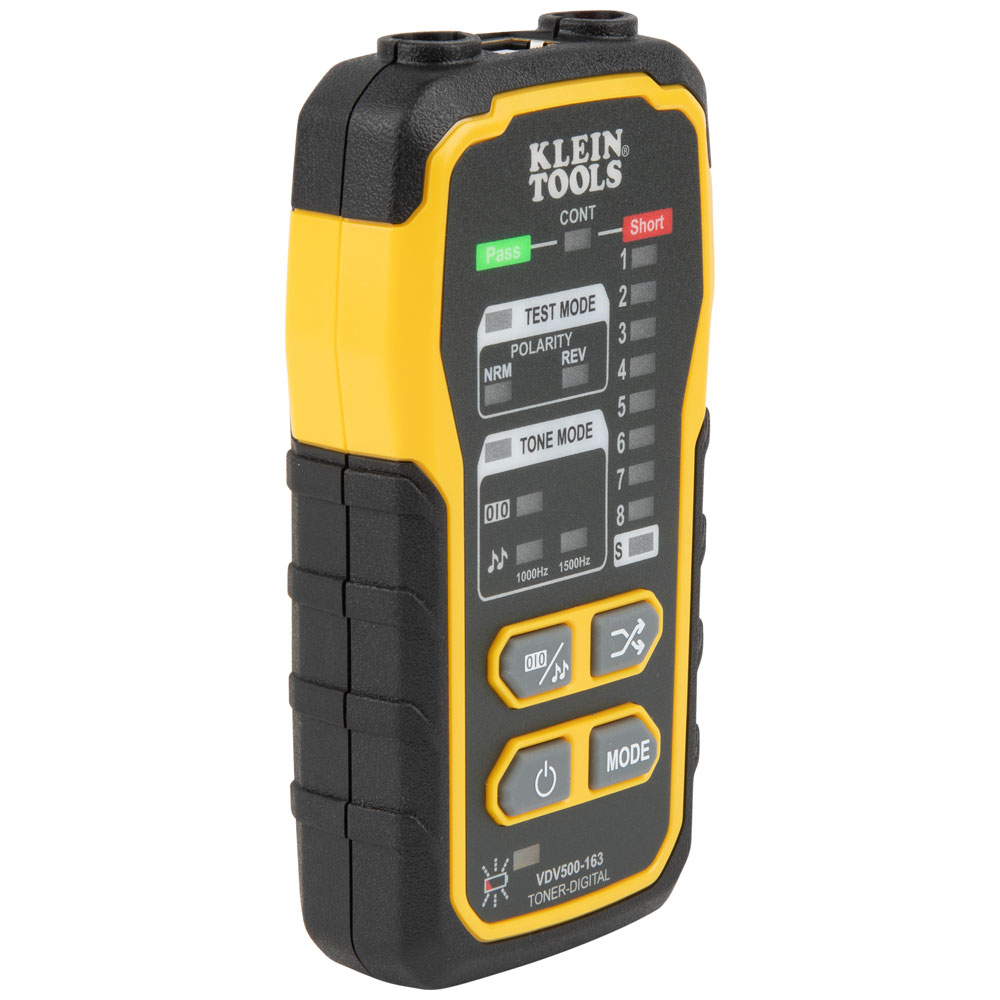

- Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
- Three distinct tone cadences
- Auto Power-Off and Low Battery Indicator

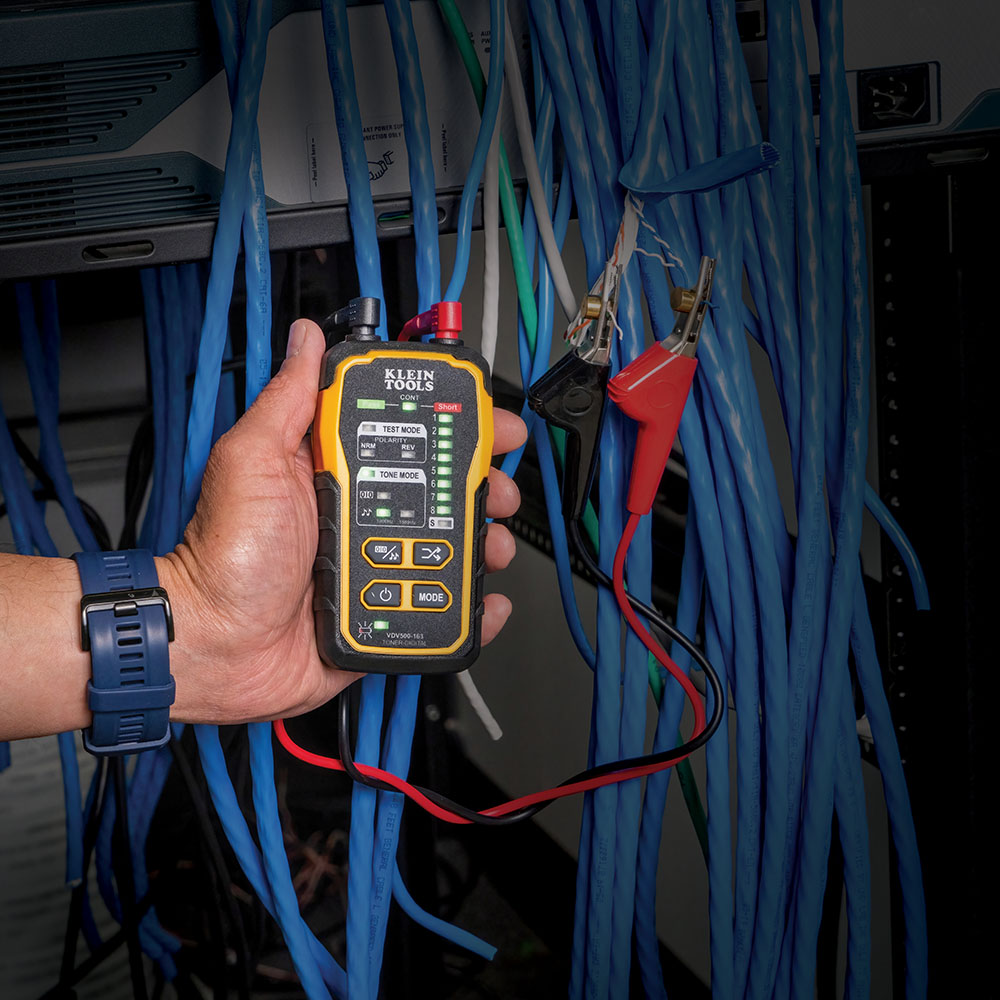

Use Klein Tools Digital Tone Generator for wire identification, wire tracing and wire pair identification. When used with the Digital Tracing Probe (Cat. No. VDV500-223; sold separately), you can trace and locate cables on an active network and wire map to check Pin-to-Pin connections with shield detection and features angled bed-of-nails (ABN) clips to securely attach to wires. Use the RJ45 port to easily test RJ45, RJ11, and RJ12 data cables.
Specifications
Type:
Digital Wire Tracing
Application:
Wire Toning
Special Features:
Performs Analog and Digital Toning
Material:
ABS

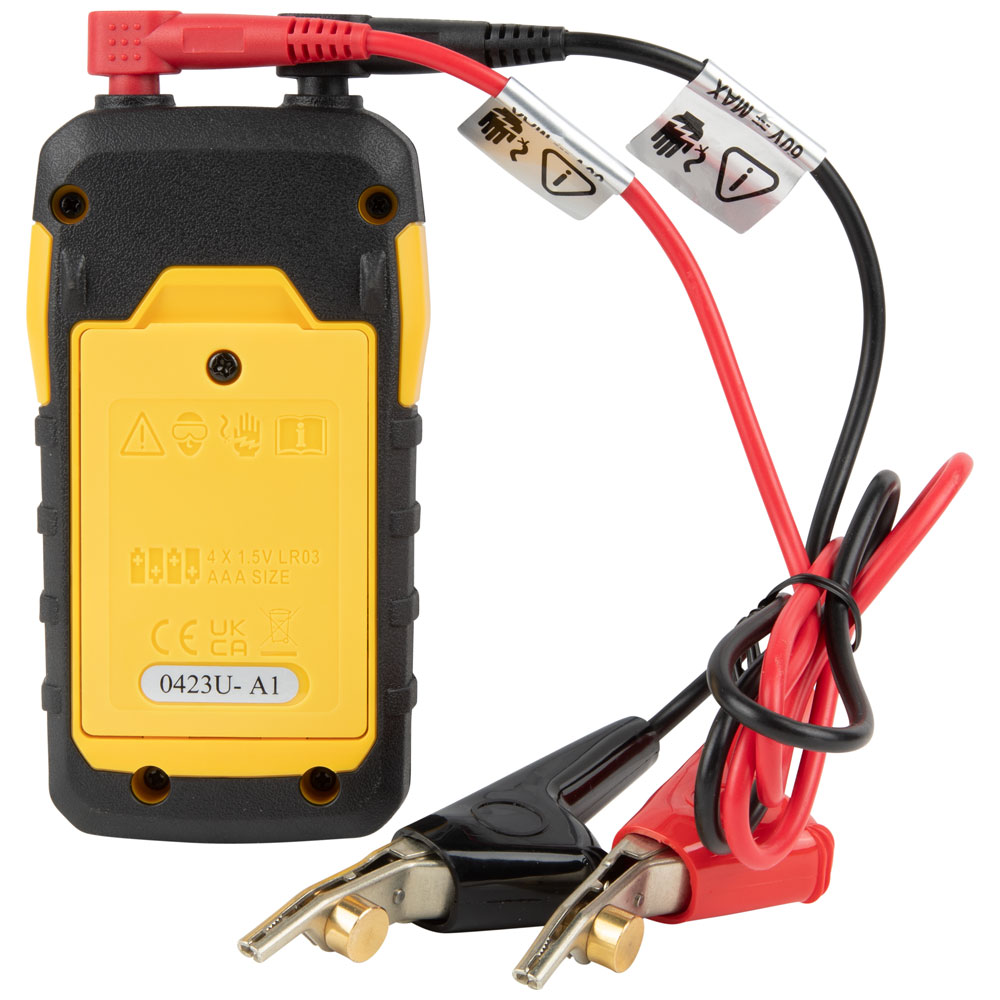

Batteries:
4 x AAA
Battery Life:
20 hr
Low Battery Indicator:
Yes
Power On LED Indicator:
Yes
Auto-Power Off:
Yes
Adjustable Volume:
No
Amplifier Overload Indication:
No
Continuity Testing:
Yes
Tones:
3
Visual Notification:
LED
Replaceable Tip:
No
Self-Storing Remote:
No
Included:
Tone Generator; 4 x AAA Batteries
Overall Length:
2.2'' (5.6 cm)
Overall Height:
4.7'' (11.9 cm)
Overall Width:
1.1'' (2.8 cm)
Weight:
5.3 oz (150 g)
UPC:
092644583896
