Tape Measure 25-Foot Magnetic Double-Hook
86225
This product is no longer in production
There is a newer model of this item:

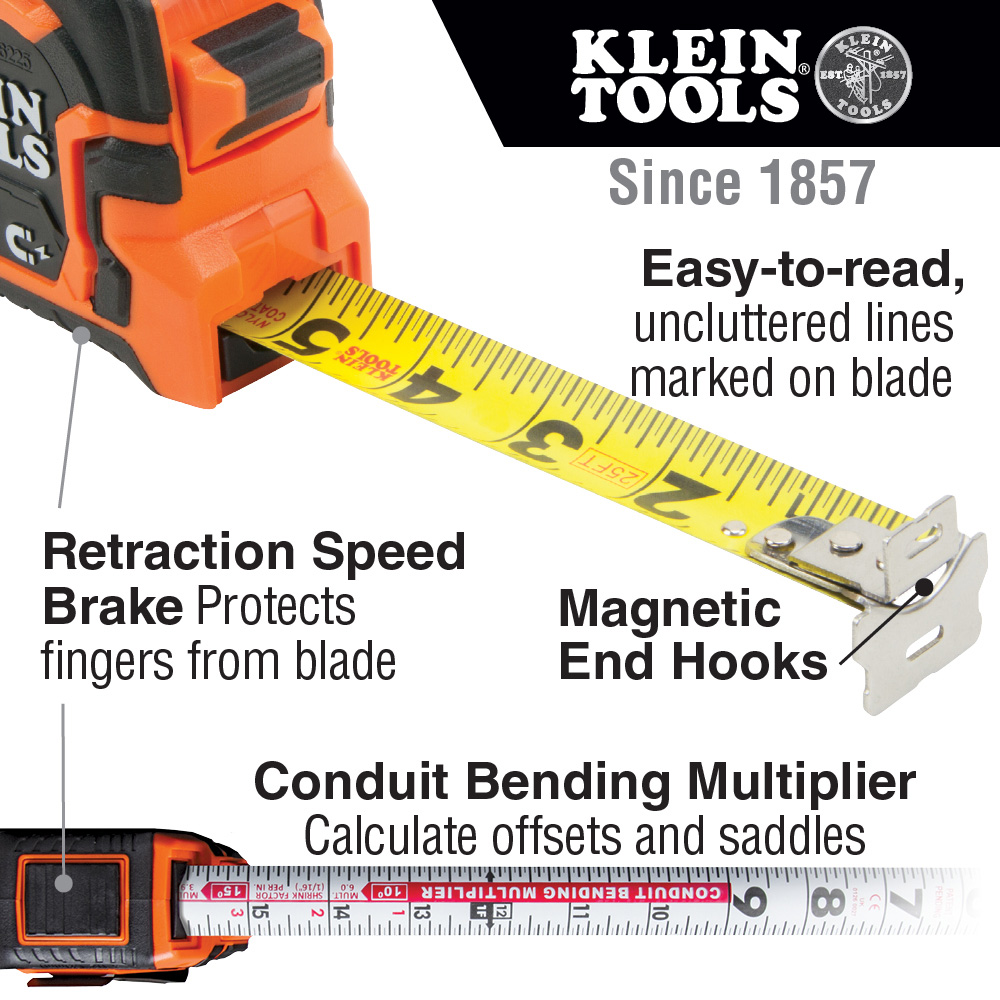

- Uncluttered, easy-to-read bold lines marked on blade every 1/8-Inch

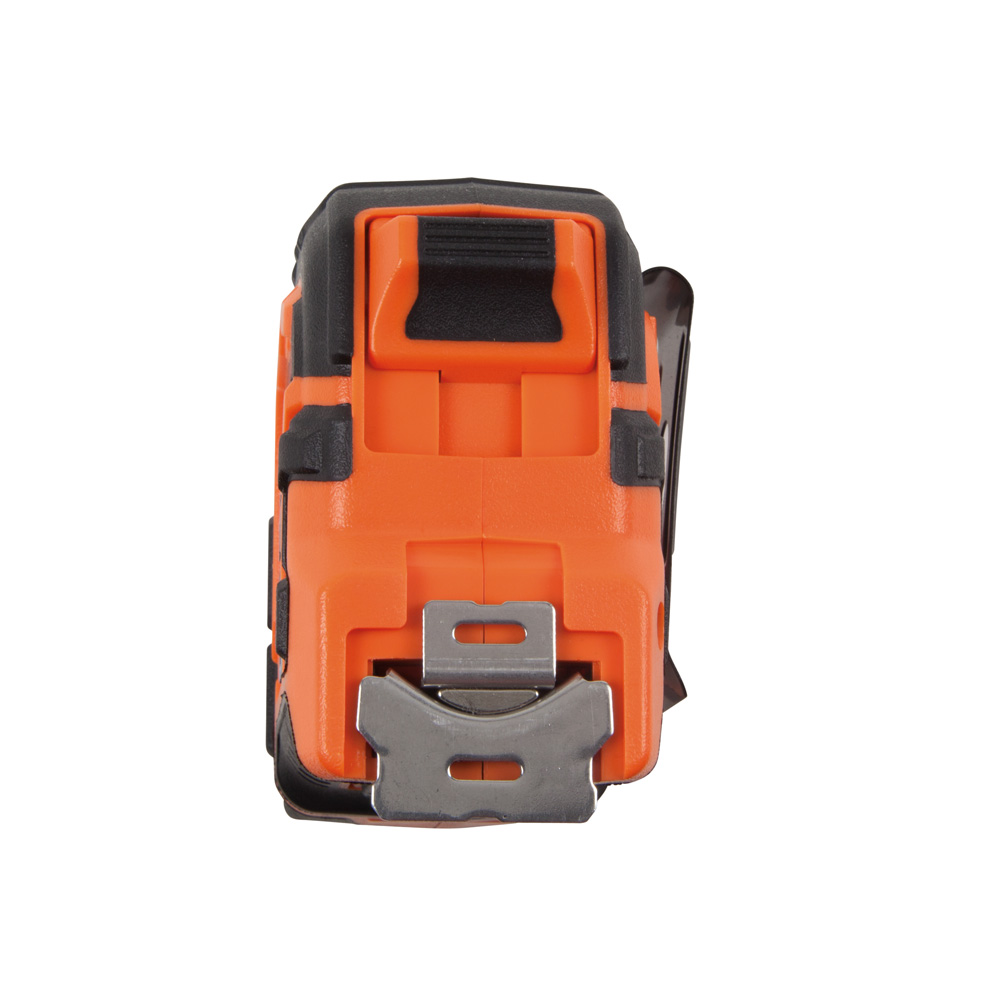

- Dual angle magnetic hooks attach to conduit and steel studs
- Heavy-duty nylon-coating protects blade printing
- Retraction speed brake controls blade speed and protects fingers from touching blade

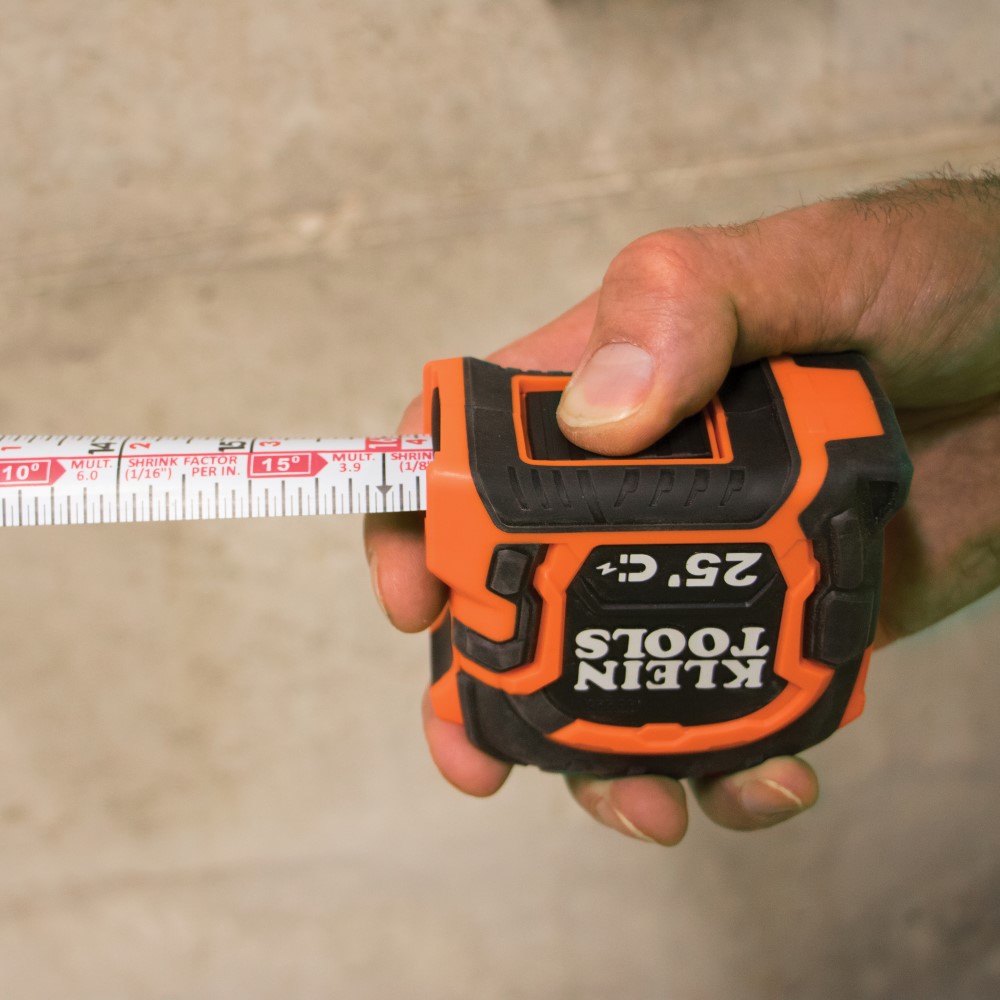

- Blade printed Conduit Bending Table helps calculate offsets and saddles

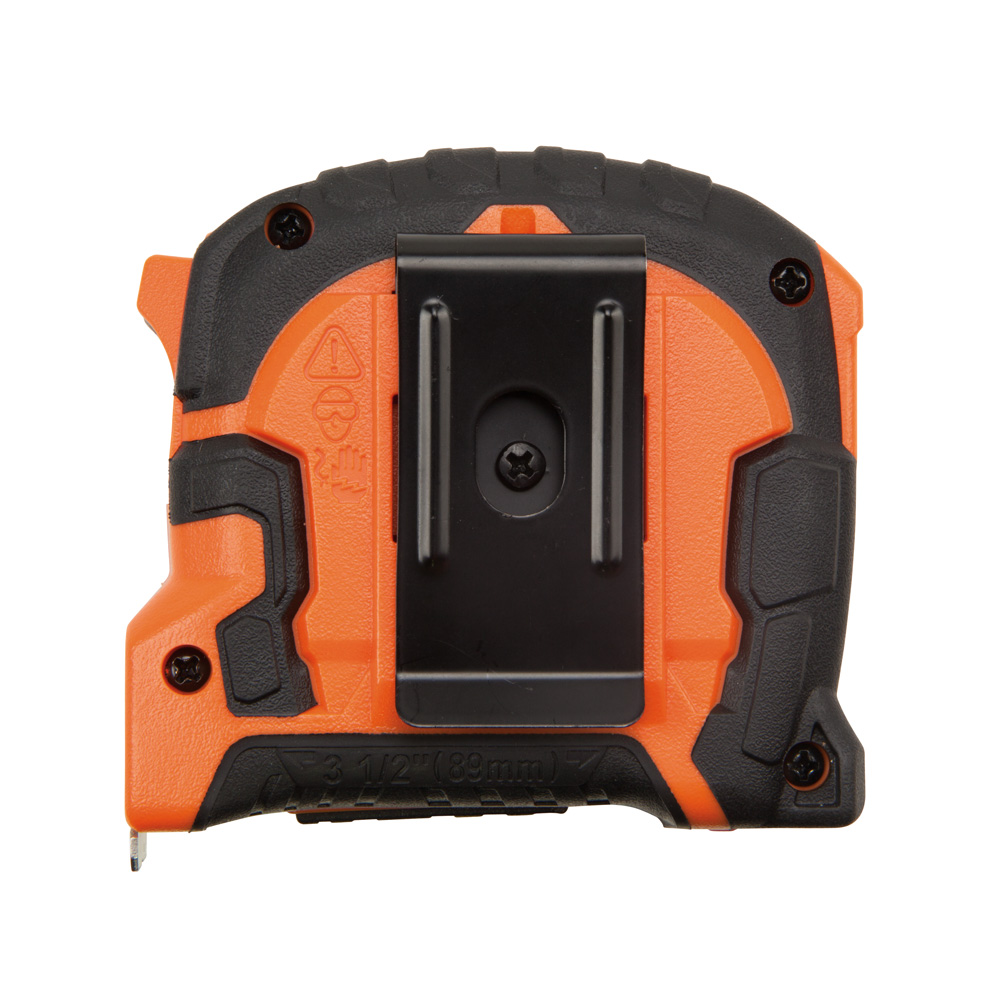

- Super-sized back clip holds securely to wide belts and extends deep into pockets
- Up to 9-1/2-foot stand-out
- US Patent D803711
Klein Tools Tape Measures offer inventive first-rate features derived from jobsite professionals, to make jobs easier and more efficient. A magnetic double hook has a center top portion for hanging onto conduit right side up and upside down, while a 1-1/4 inch flared hook was designed specifically to pass through 1-3/8 inch holes drilled for 1 inch conduit. This large magnet profile attaches to steel and along EMT conduit. A sealed tape brake panel is large enough to allow 2-3 fingers to operate at once for safe retraction, and keeps water and dirt out to prevent tape blade rust and degradation. The high impact rugged rubberized industrial design offers a better grip and stands up to any task the jobsite demands.
Specifications
Type:
Double Sided
Special Features:
Uncluttered, Easy to Read Bold Lines Every 1/8''
Tape Length:
25' (7.6 m)
Standout Length:
Up to 9.5' (2.9 m)
Tape Material:
Steel
Tape Coating:
Nylon
Measurement Standard:
SAE
Graduations:
1/16''
Lockable Tape:
Yes
Rewind Type:
Automatic
Hook:
Double
Magnetic:
Yes
Belt Clip:
Yes
Case Material:
ABS Plastic
Case Color:
Orange
Overall Width:
4.25'' (10.8 cm)
Overall Height:
2.25'' (5.7 cm)
Overall Length:
6.5'' (16.5 cm)
Weight:
1.1 lb (0.5 kg)
UPC:
092644862250
Additional Information
Warnings
- Always wear eye protection.
- Do NOT open case. Spring motor is under tension and opening may cause injury.
- Not insulated. Do NOT use on live circuits. Avoid magnetic contact with sensitive electronic or computer equipment.
- To avoid personal injury and prevent damage to product, do not allow the blade to retract into case at full speed.
