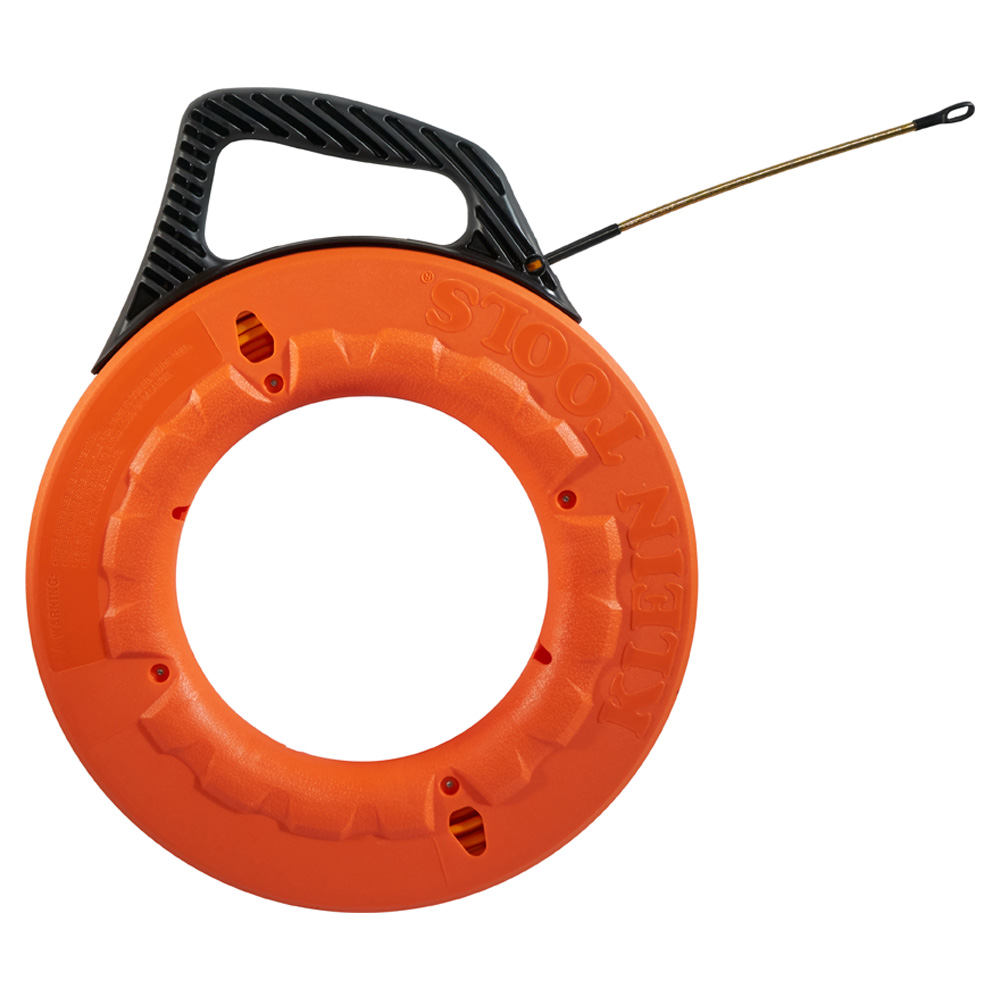

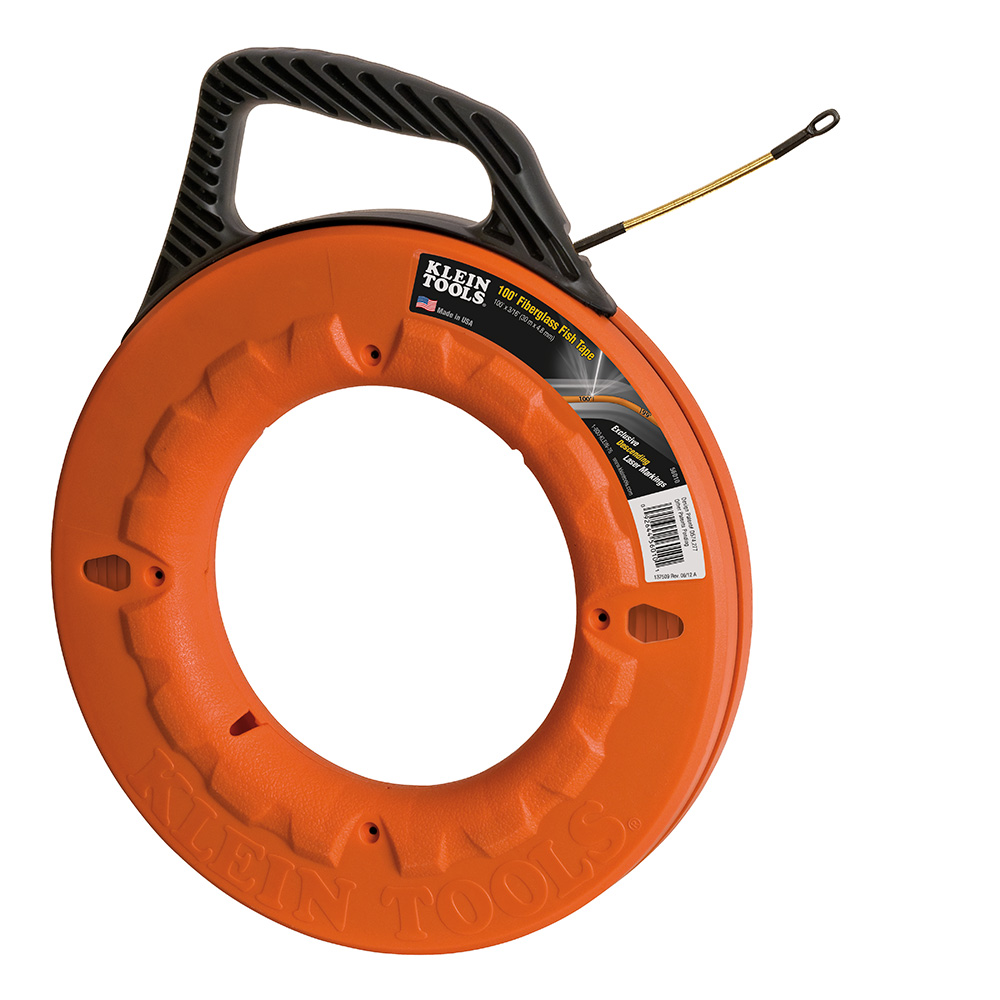

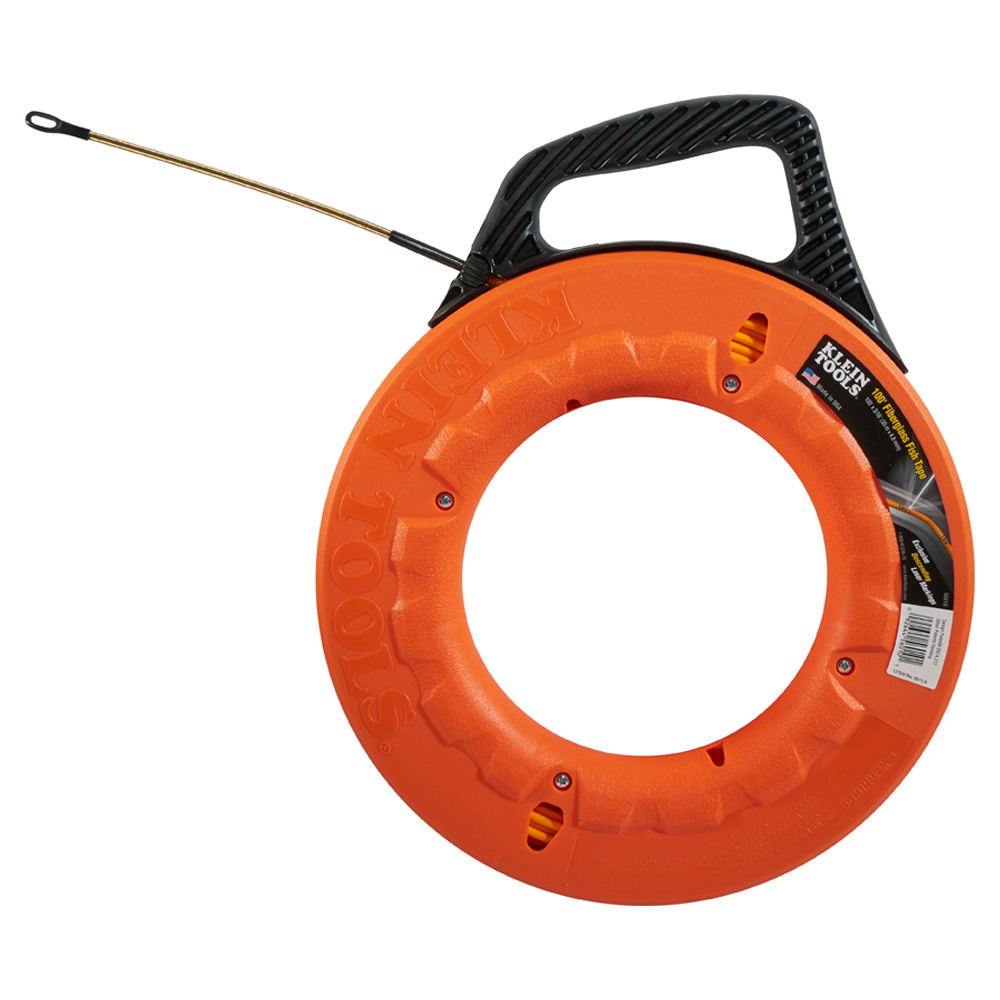

Fiberglass Fish Tape with Spiral Leader, 100-Foot

56010

This product is no longer in production

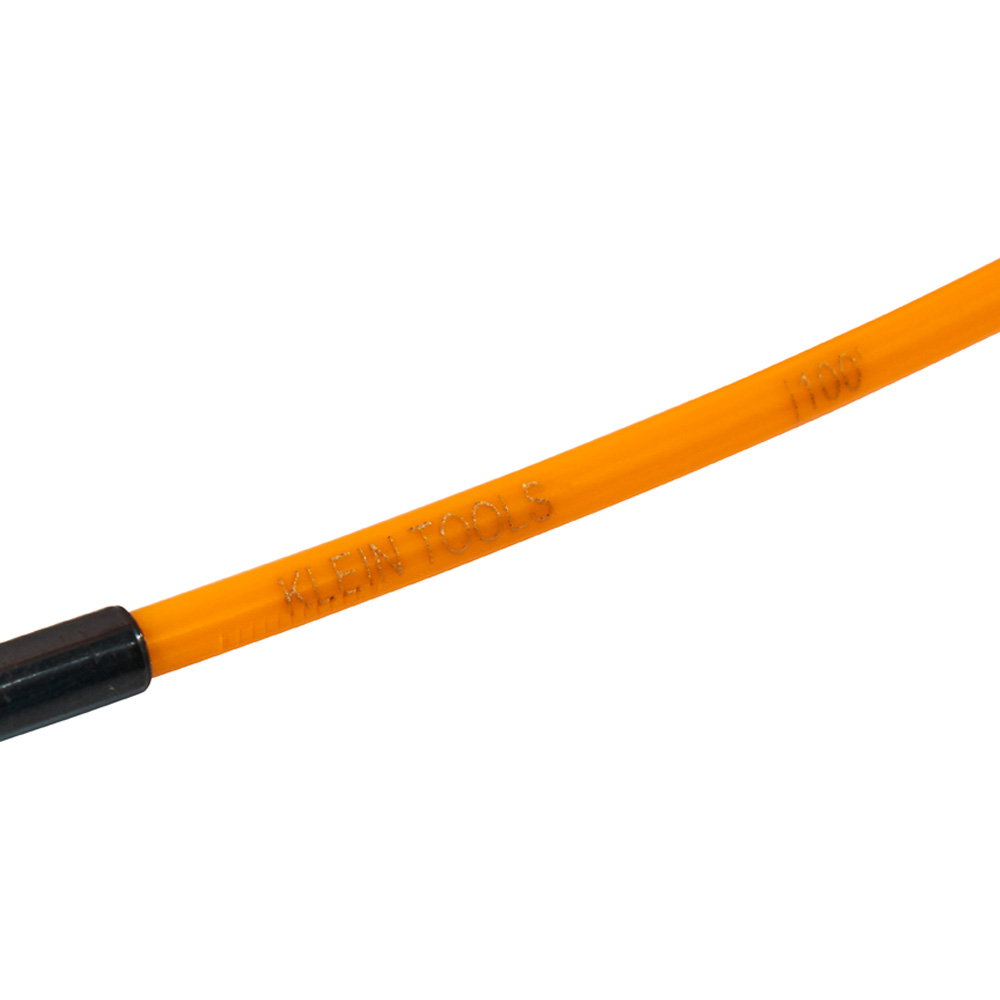

  • Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out; Updated model Cat. No. 56380 available
  • Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends
  • The lightweight, strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds
  • The 13-Inch case diameter means you can reel in 15-percent more tape in a single revolution vs. a standard 12-Inch case

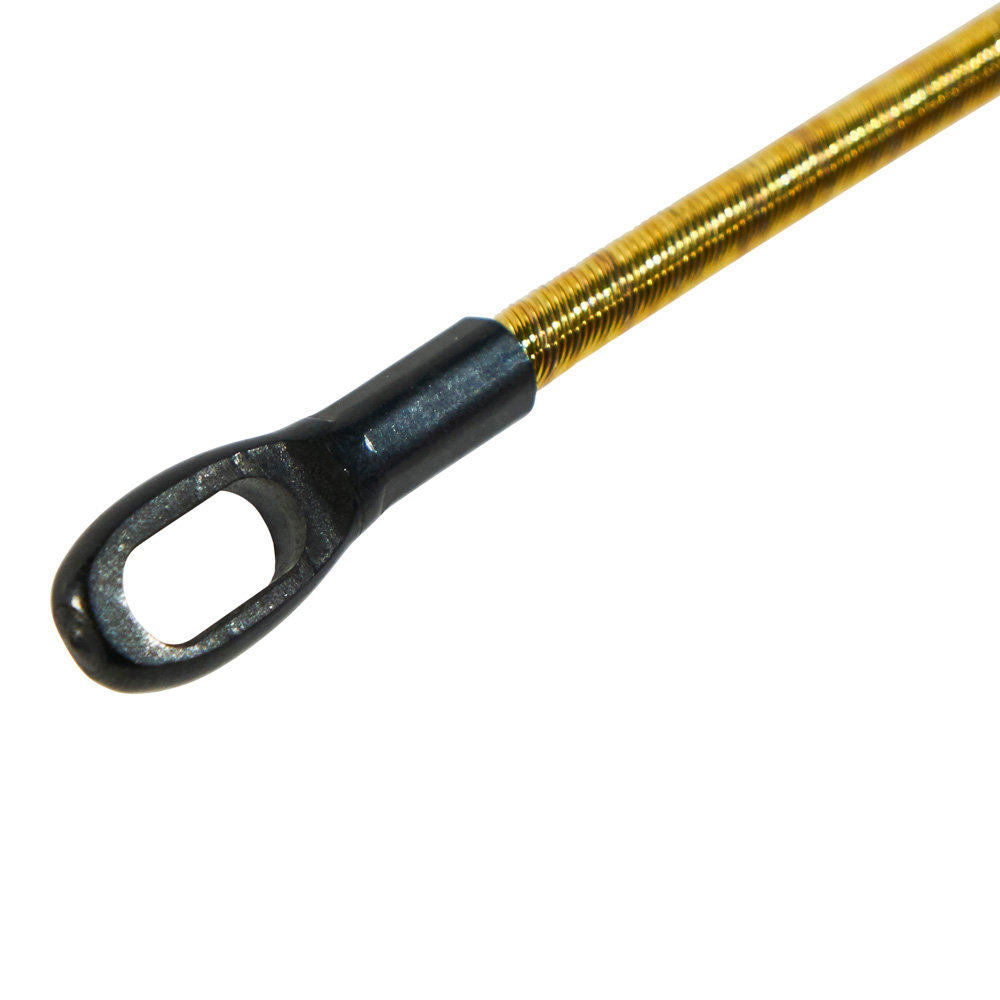

  • Durable 7-Inch leader helps push through crowded conduit

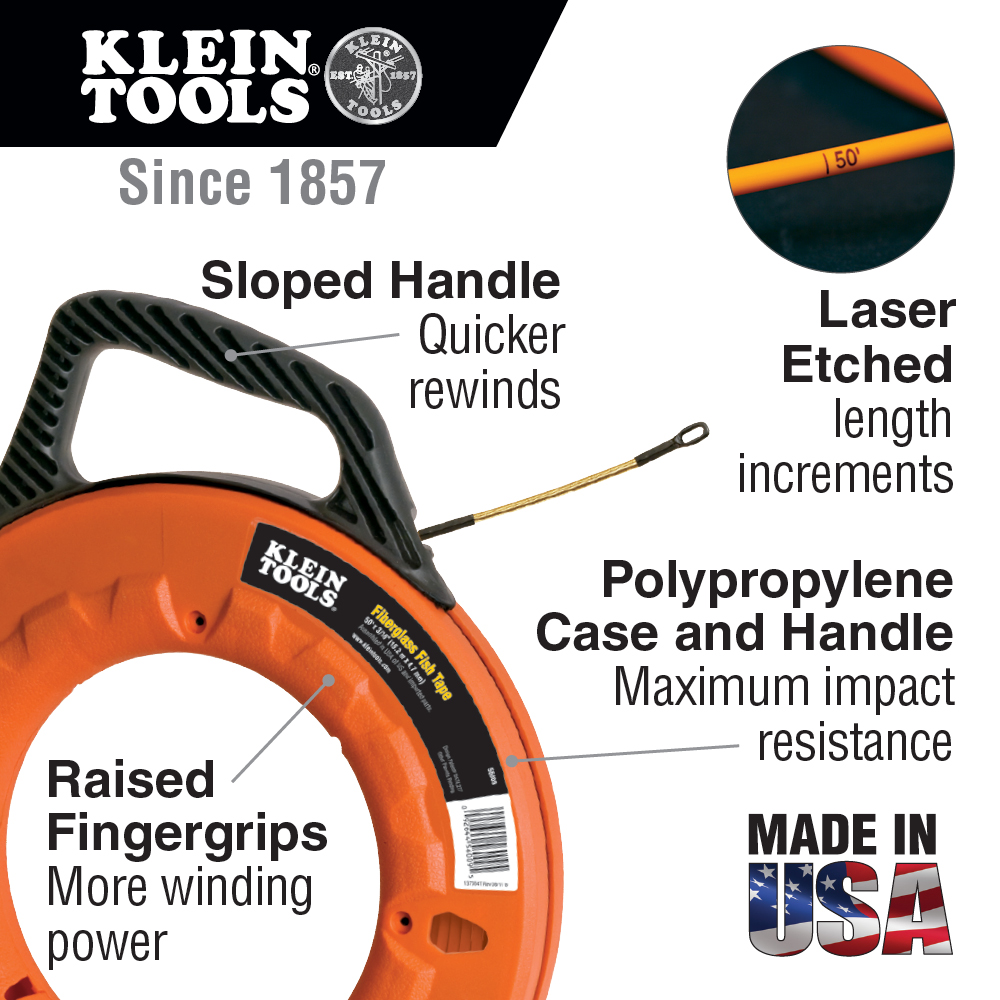

  • Raised finger grips help transfer 100-percent of the winding power from your hand and fingers

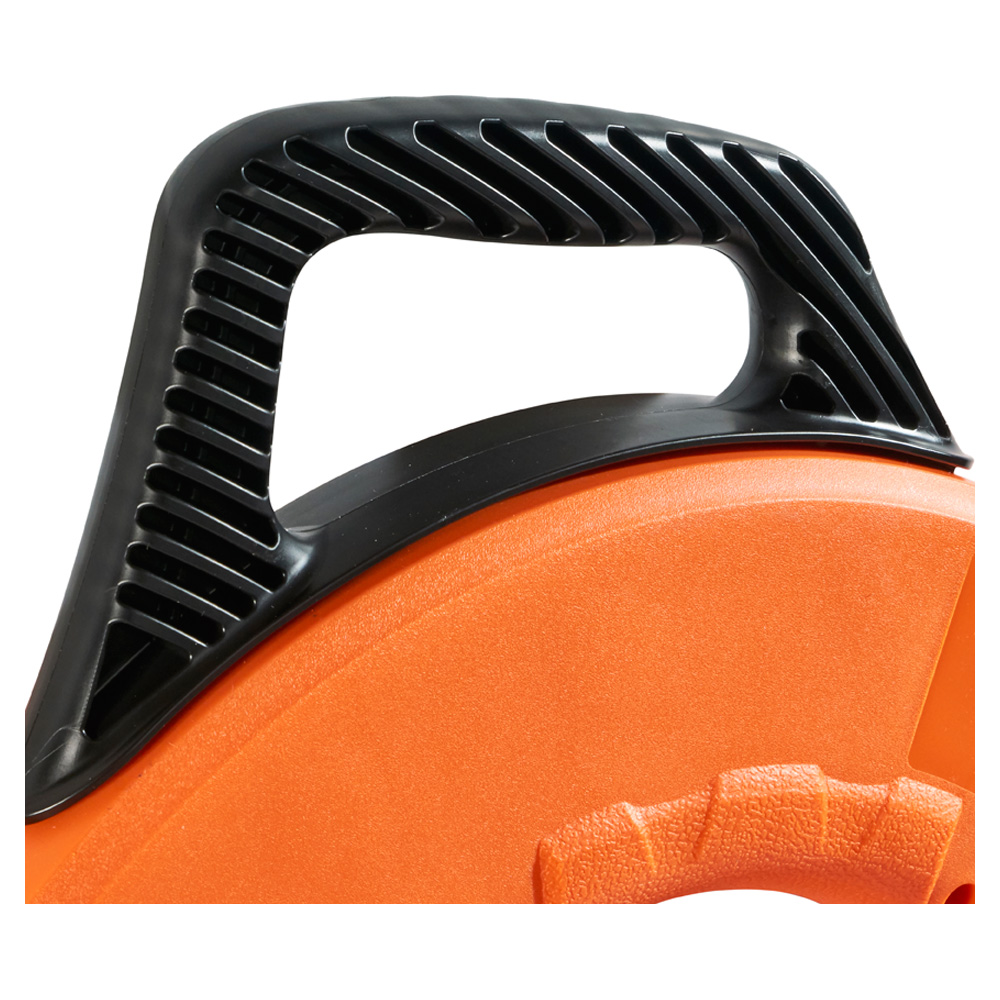

  • Unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
  • Repair kit (Cat. No. 56115), replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available
Videos
Images
High-Res JPG 56010_photo.jpg
PNG 56010.png

Klein Tools' 100-foot (30.48 m) Fiberglass Fish tapes feature Klein's exclusive laser-etched 1-foot descending markings to measure the depth of conduit runs more accurately and determine the amount of tape left to pay out. The lightweight, strong, non-conductive fiberglass slides easily over existing wires and through multiple bends. Strength-rated up to 500 pulling pounds and resists harsh elements.

Specifications
Material:
Fiberglass
Tape Size:
100' x 3/16'' (30.5 m x 4.8 mm)
Diameter:
13'' (33 cm)
Weight:
3.5 lb (1.6 kg)
UPC:
092644560101
Additional Information
Warnings
  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
  • Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
  • Never remove screws while fish tape is coiled inside reel.
