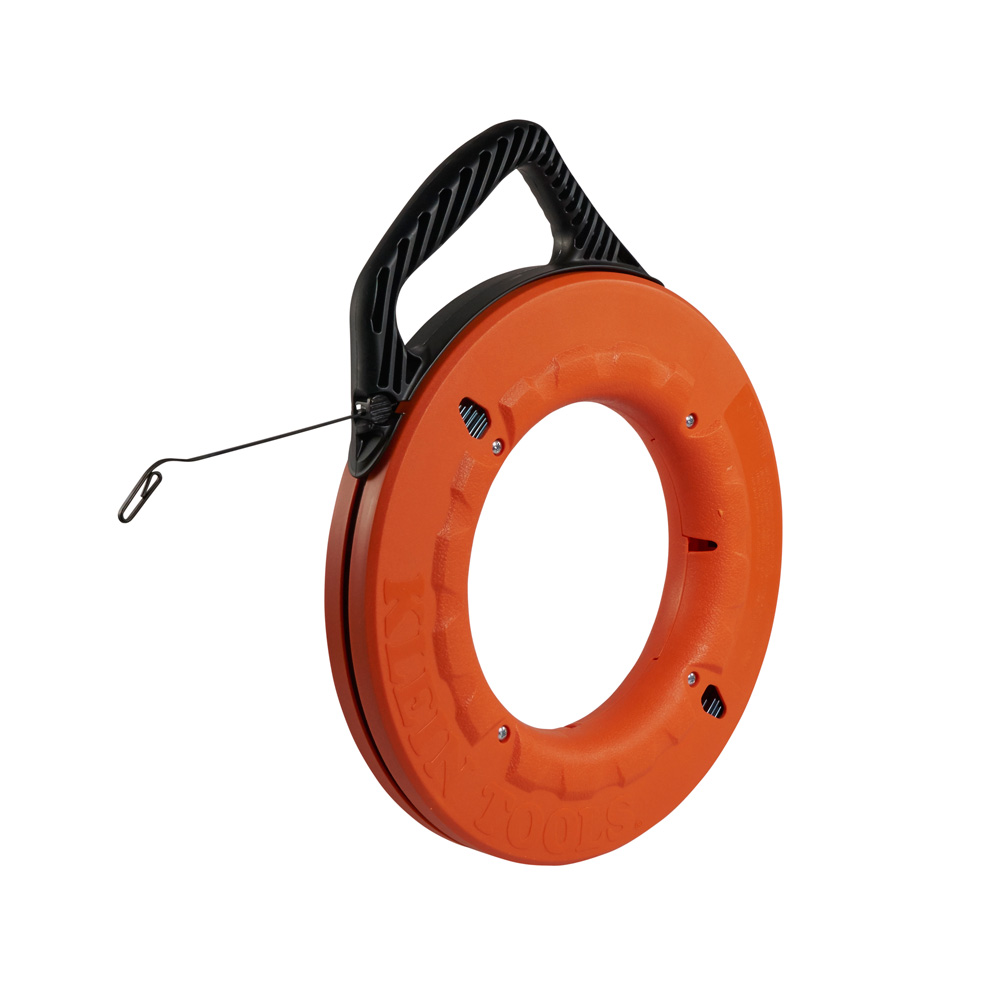

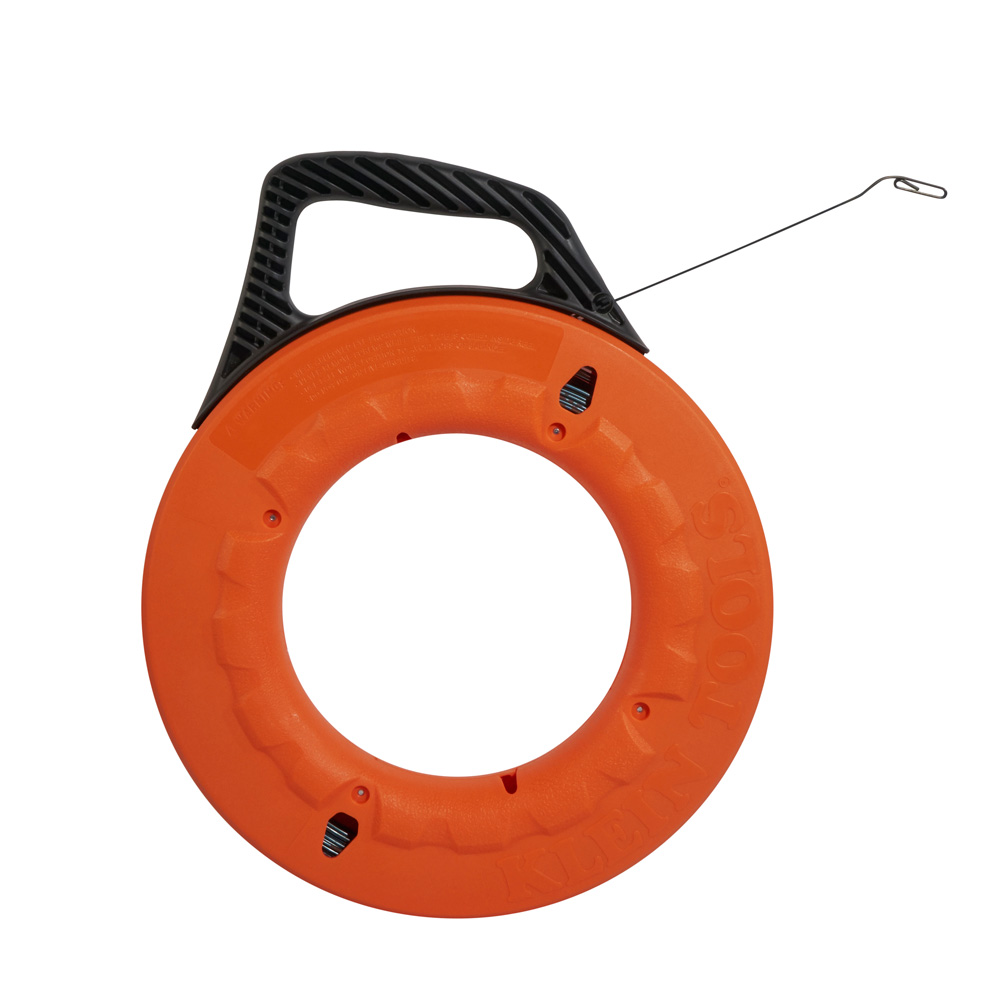

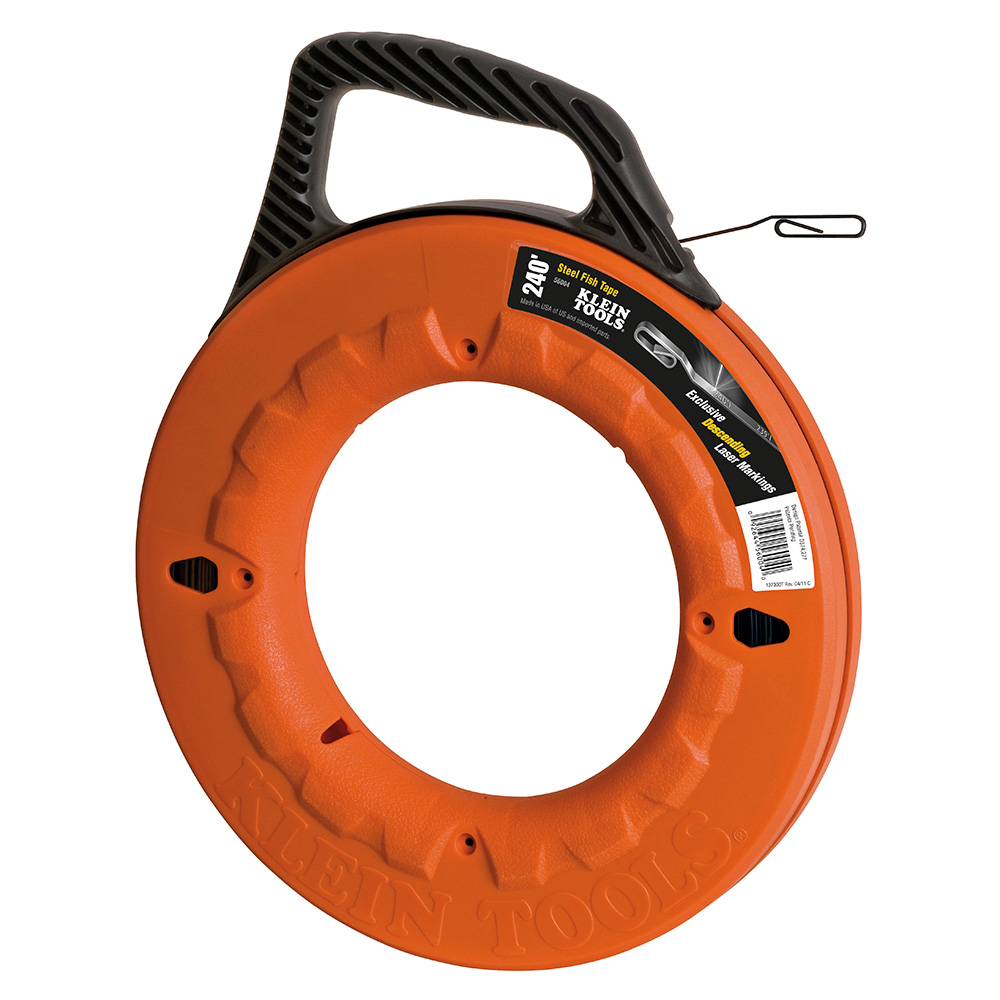

1/8-Inch Wide Steel Fish Tape 240-Foot
56004
This product is no longer in production
There is a newer model of this item:
- Fish tapes are 1/8-Inch wide high strength spring steel which are stiff for long runs and great for heavy duty wire pulls; Updated Model Cat. No. 56334 available

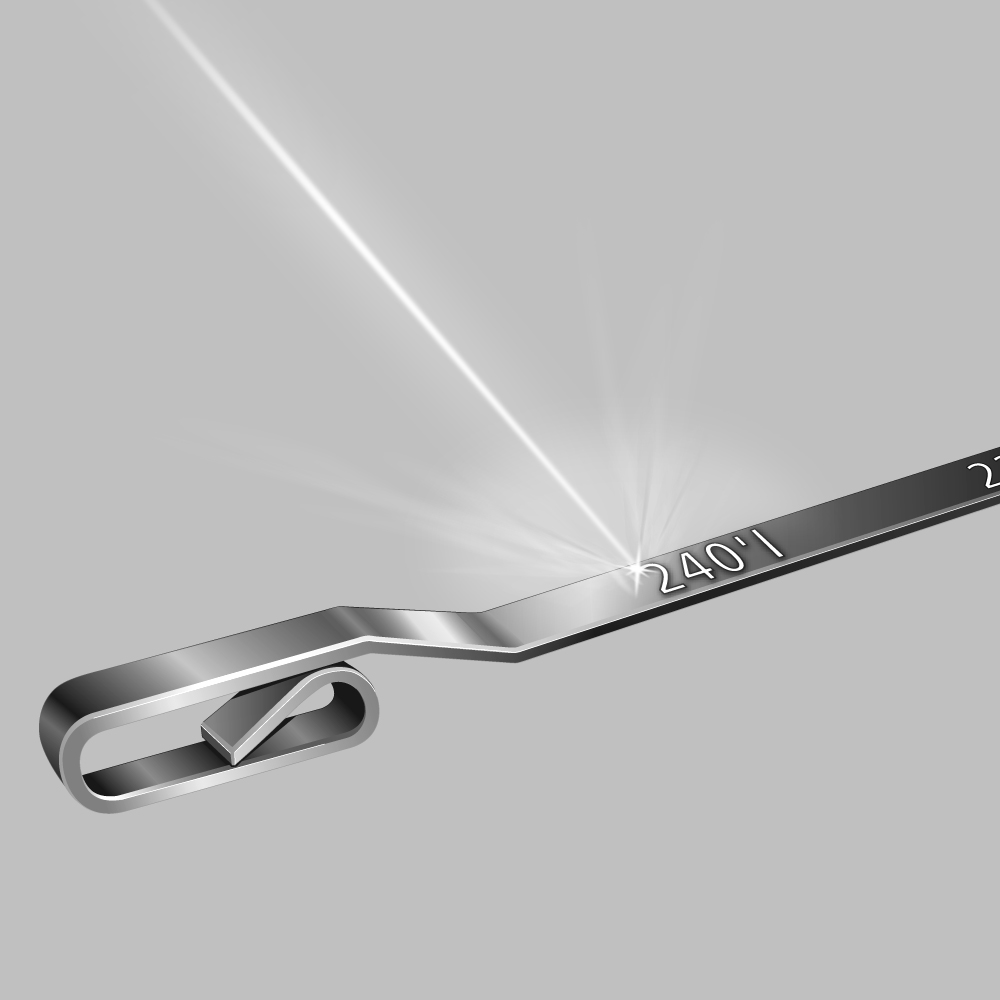

- Laser etched markings in 1-foot (0.3 m) increments allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
- Polypropylene case and handle offer the maximum in impact resistance
- Raised finger grips transfer 100-percent of the winding power from your hand and fingers
- Full grip style handle gives you a firm, steady grip as you pull tape from the case
- Unique sloped handle optimizes hand position for quick hand-over-hand rewinds
- The 13-Inch (330 mm) case diameter means you can reel in 15-percent more tape in a single revolution than similar sized 12-Inch (305 mm) tapes, saving you time and effort
- Patents: D574,277; 8,212,178; 8,168,921; 8,164,025. Other Patents Pending
This Klein Tools 1/8-Inch Wide 240-Foot Steel Fish Tape has a high strength spring for long runs and heavy duty pulls. The tape has laser etched markings in 1-foot (0.3 m) increments to allow more accurate depth measurements. It is equipped with an angled handle and raised fingertips to transfer 100-percent of the winding power from your hands and fingers.
Specifications
Overall Width:
0.125'' (0.3 cm)
Material:
Stainless Steel
Color:
Orange Reel
Tape Size:
240' x 1/8'' x 0.062'' (73.2 m x 3.2 mm x 1.57 mm)
Diameter:
13'' (33 cm)
Weight:
7.5 lb (3.4 kg)
UPC:
092644560040
Warnings
- Wear approved eye protection when feeding, pulling or rewinding fish tape.
- Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
- Use a safe work position to avoid loss of balance when using fish tape.
- Never remove screws while fish tape is coiled inside reel.
- Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.
