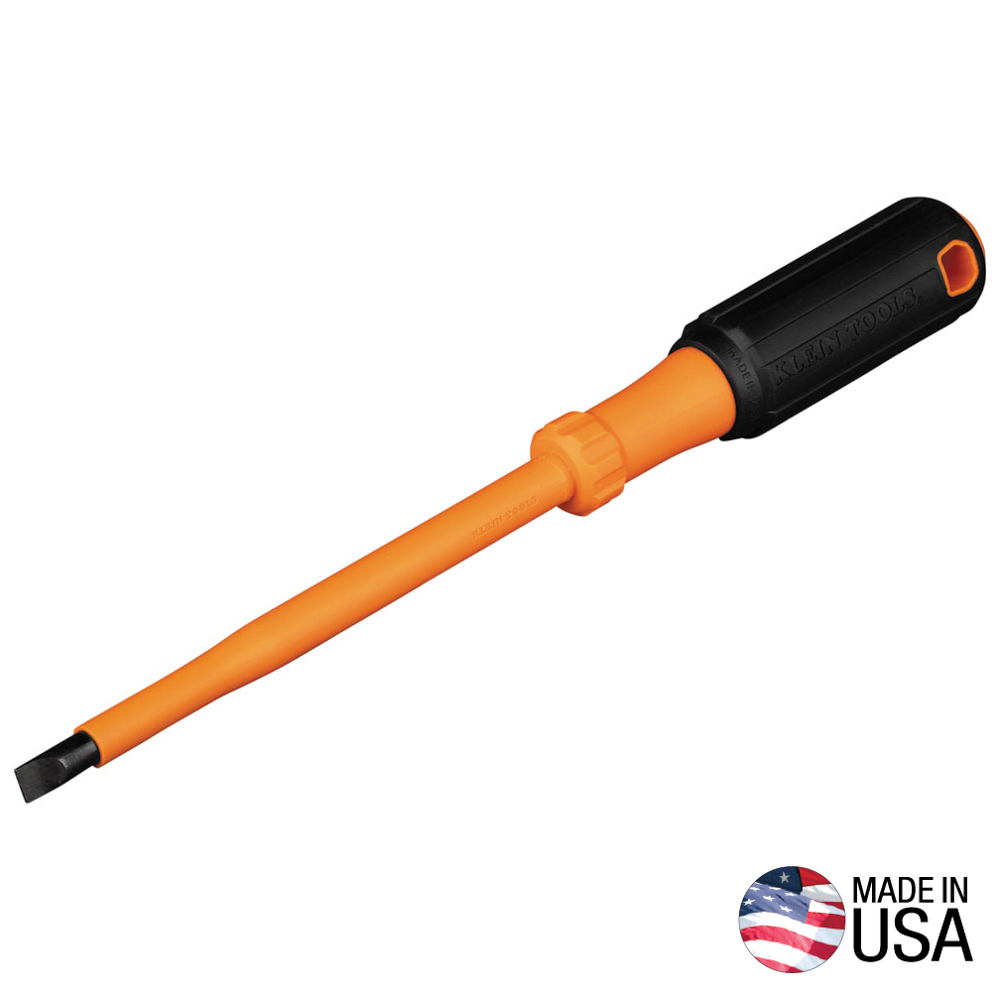

Insulated Screwdriver, 5/16-Inch Cabinet, 6-Inch Round Shank
6866INS
- Insulated Screwdriver with 5/16-Inch Cabinet tip protects against electric shock up to 1000V
- 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electrical shock
- Made in the USA
- Tether hole for added safety when working at height
- Cushion-Grip™ handle for greater torque and comfort

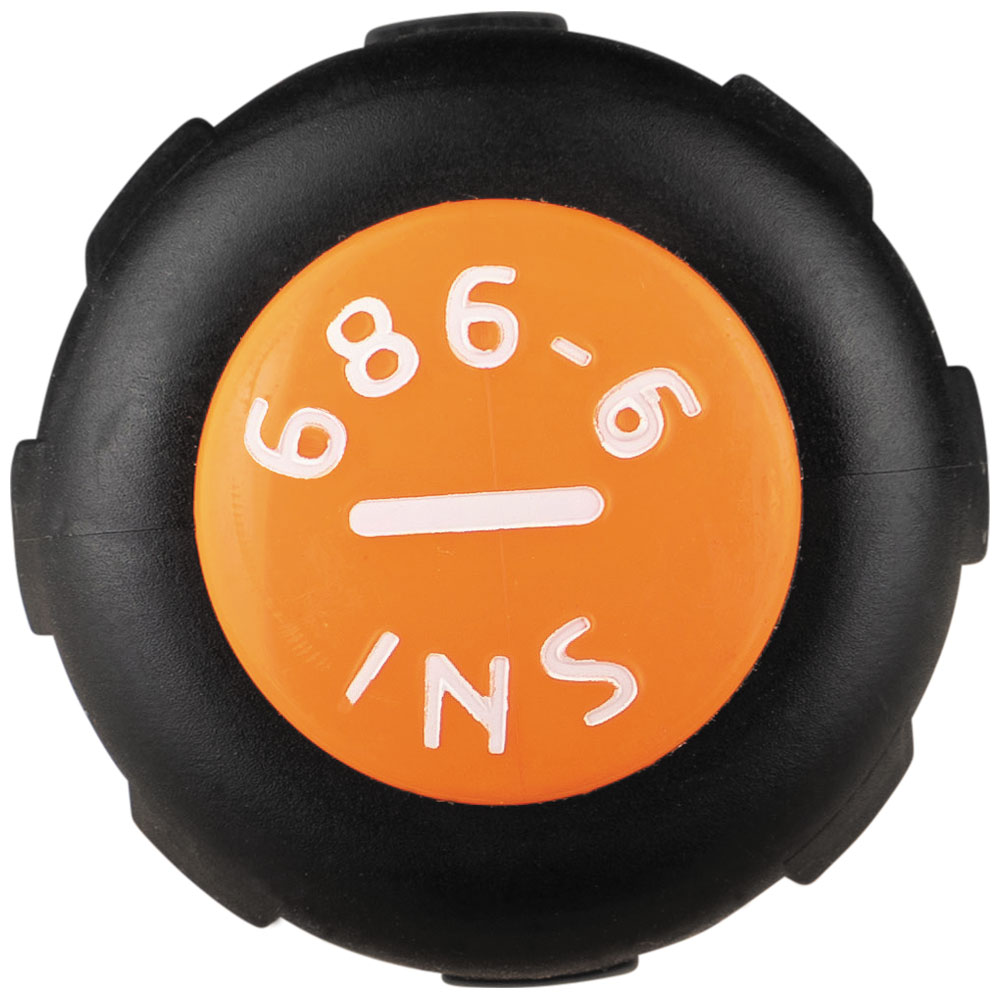

- Tip-Ident® quickly identifies the screwdriver tip orientation so you can easily engage the screwdriver tip with the screw
- Meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018
This 1000V rated screwdriver features a layer of bright orange impact and flame resistant insulation to protect from electric shock. Each tool is individually tested to exceed the IEC 60900 and ASTM F1505 standards for insulated tools. Made in the USA.
Specifications
Application:
For Work Near Energized Sources
Special Features:
Flame Retardant and Impact Resistant Handle, Tip-Ident® Handle
Tip Type:
Cabinet
Magnetic:
No
Tip Size:
5/16''
Shank Type:
Round
Shank Length:
6'' (15.2 cm)
Material:
Steel, Plastic
Insulated:
Yes
Handle Material:
Plastic
Handle Color:
Black
Handle Length:
1.24'' (3.2 cm)
Handle Diameter:
1.24'' (3.2 cm)
Color Code:
Orange
Overall Length:
11.07'' (28.1 cm)
Overall Height:
11.07'' (28.1 cm)
Overall Width:
1.24'' (3.2 cm)
Standard:
ASTM F1505-16(2021)
Type:
Driver
Weight:
5.15 oz (146 g)
UPC:
092644329203
Additional Information
Warnings
- Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
- Whenever possible, always de-energize lines and equipment prior to working on or around them.
- Always inspect your tools before use.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Keep tool clean, dry and free of any surface contaminants.
