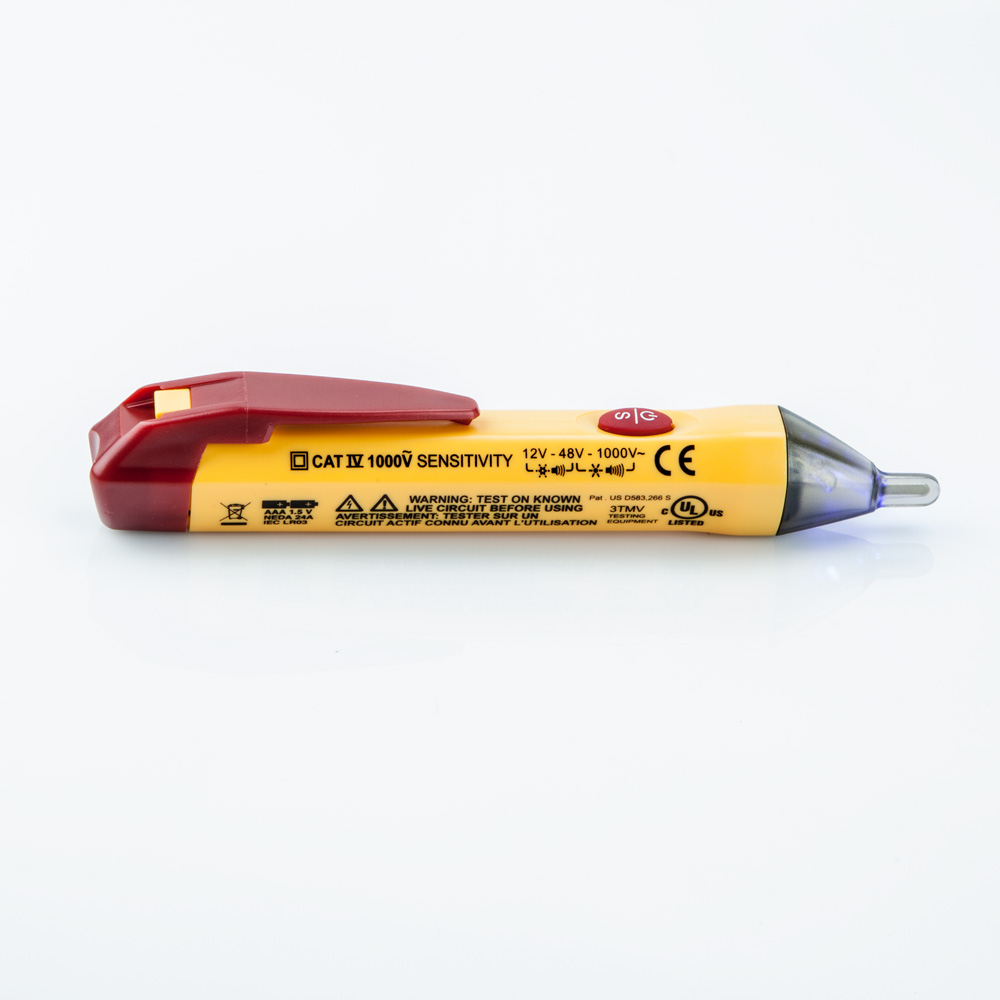

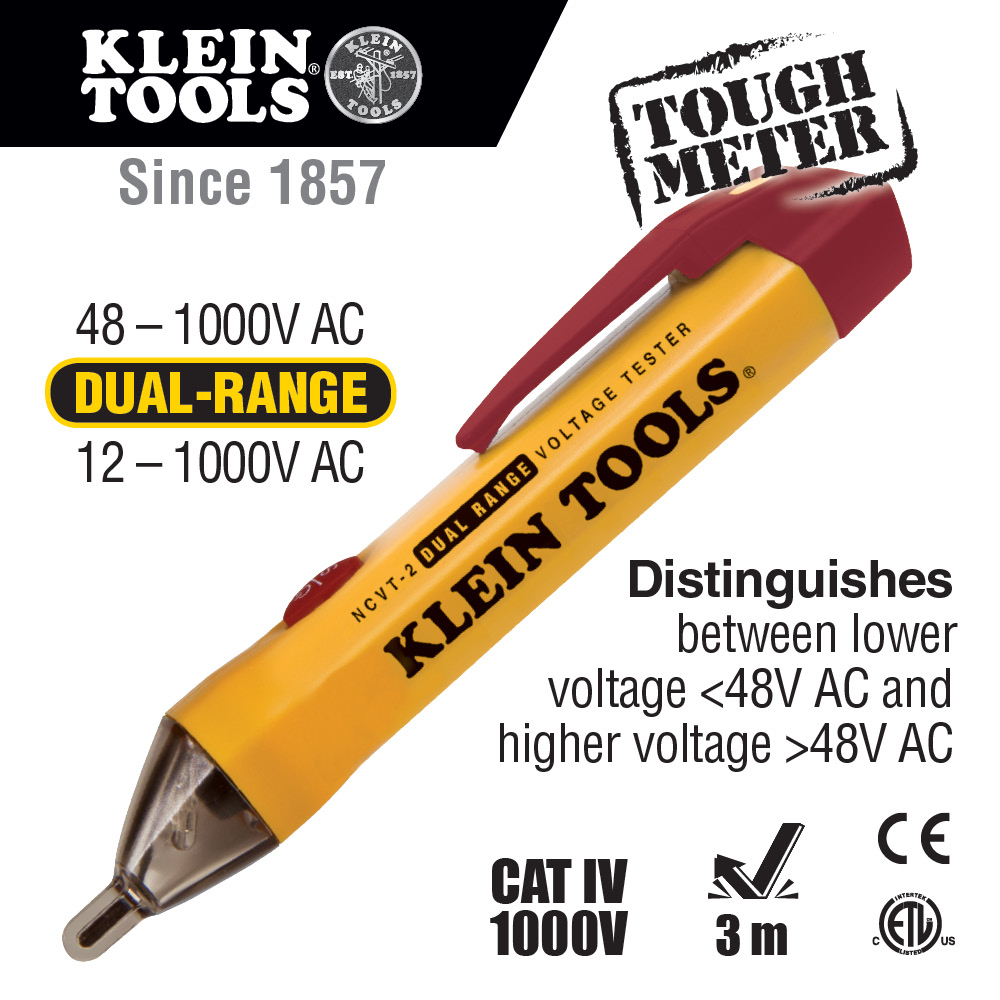

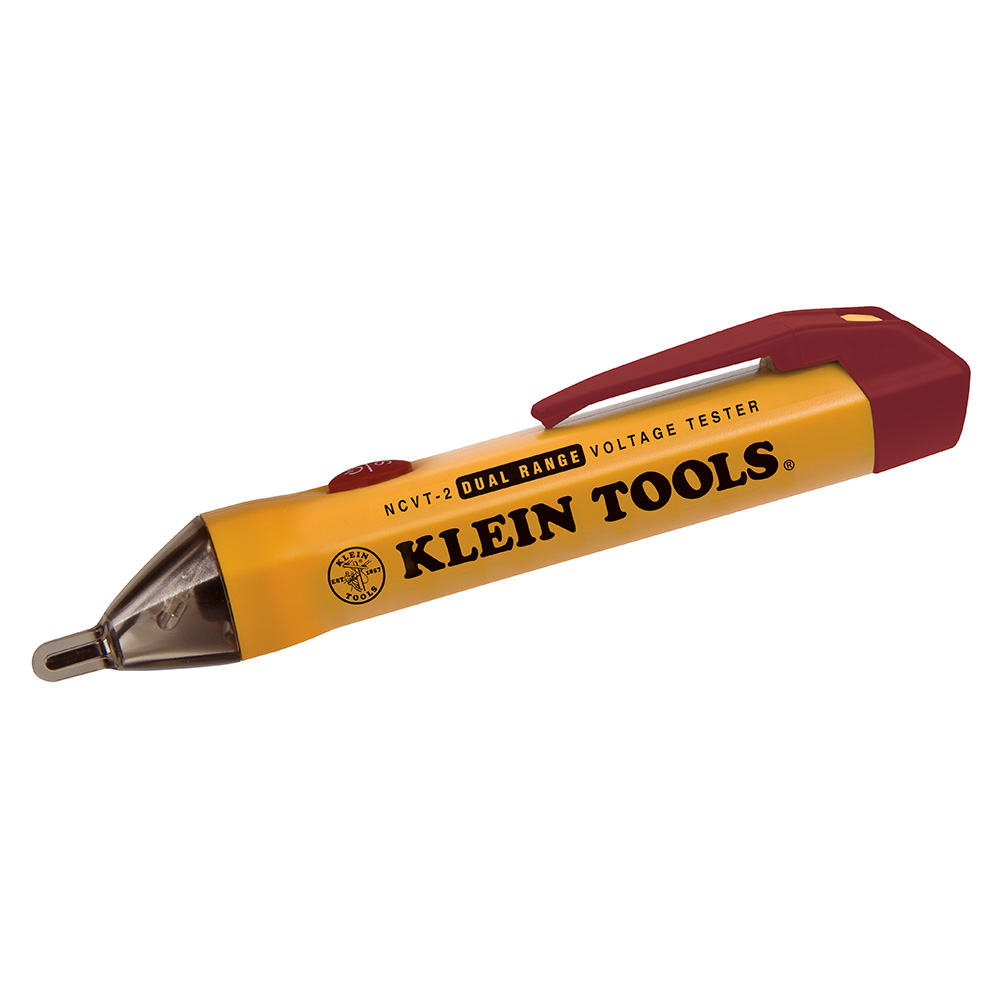

Non-Contact Voltage Tester Pen, Dual Range, 12-1000V AC or 48-1000V AC
NCVT-2
This product is no longer in production
There is a newer model of this item:
- Voltage Tester automatically detects and indicates low voltage (12-48V AC) and standard voltage (48-1000V AC) allowing broad application

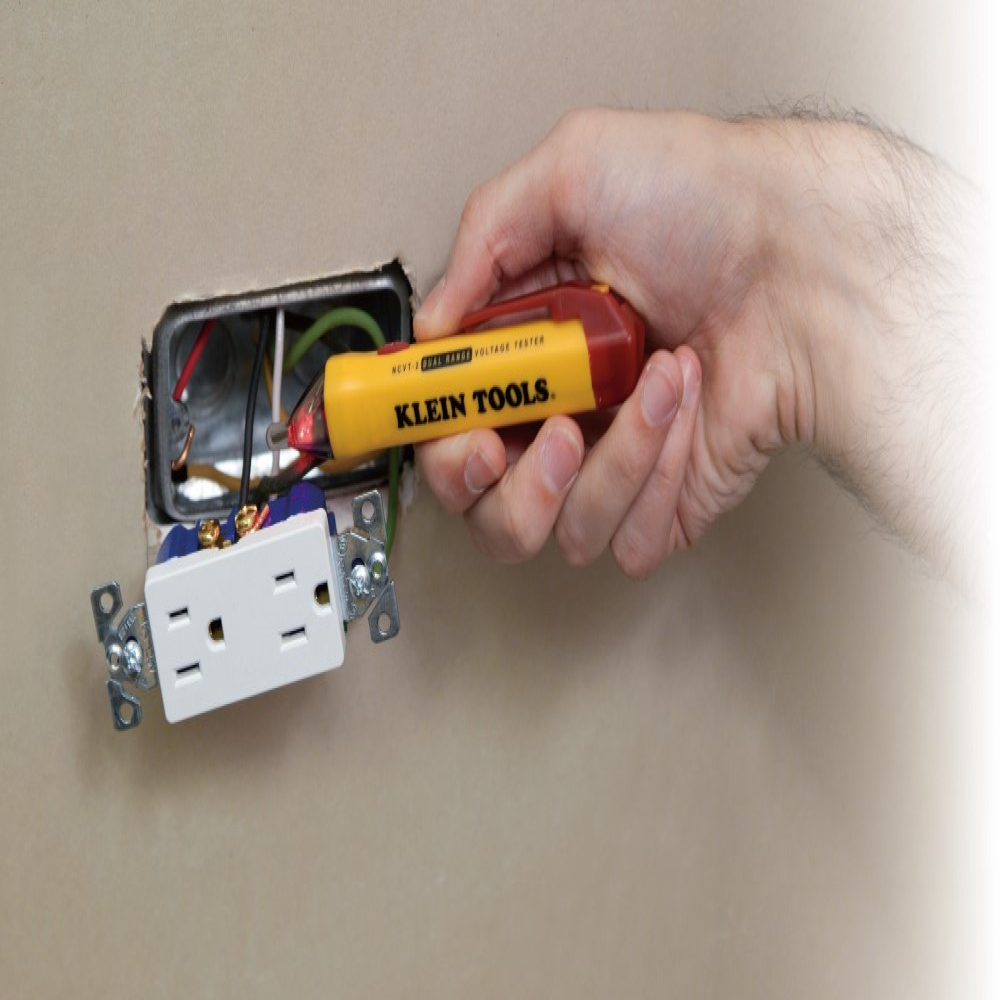

- Non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
- Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems

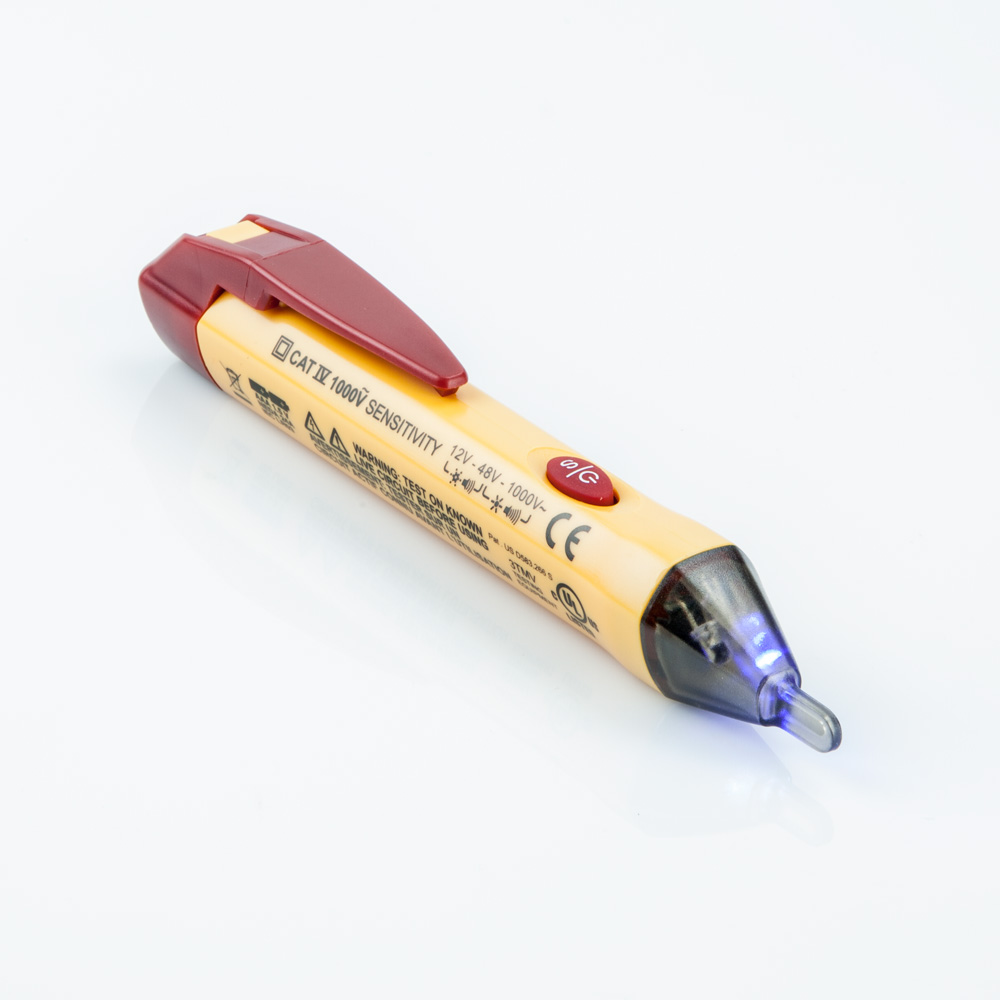

- High intensity, bright green LED indicates the tester is operational and aids in illuminating the workspace
- Dual Range testing, select 12-1000V AC or 48-1000V AC
- Auto power-off feature conserves and extends battery life
- CAT IV 1000 Volt rating provides expanded operation and protection
- Lightweight, durable polycarbonate plastic resin construction; convenient pocket clip
- 9.8 ft / 3 m drop protection
- Safety Rating: CAT IV 1000V
- Conforms to CE requirements
Klein Tools Dual-Range Non-Contact Voltage Tester automatically detects low voltage and standard voltage. A bright green LED will tell you the tester is working and also functions as a work light. The light flashes red and two distinct warning tones sound when either low or standard voltage is detected.
Specifications
Special Features:
50 - 500 Hz Low-Pitched Pulsing Beeping Sound; Blue LED Turns Off and Red LED Blinks (Approximately 2x Per Second)
Drop Protection:
9.8' (3 m)
Voltage:
12 - 1000V AC
Frequency:
50 - 500 Hz
Pollution Degree:
2
Standard:
CAT IV 1000V
Included:
(2) Alkaline 1.5V AAA Batteries
Batteries:
2 x AAA
Overall Length:
5.50'' (14 cm)
Overall Height:
1.00'' (2.5 cm)
Overall Width:
0.72'' (1.8 cm)
Weight:
0.80 oz (22.70 g)
UPC:
092644690020
Warnings
- Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
- Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
