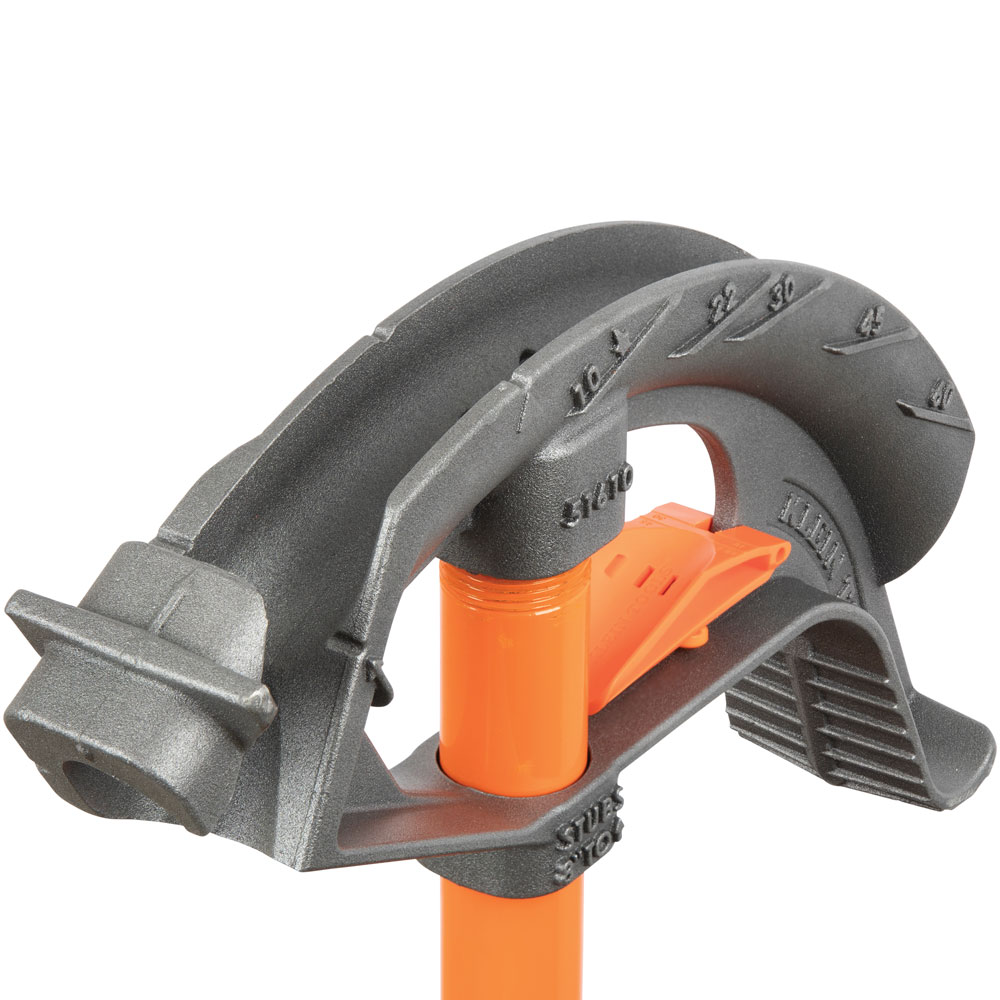

Iron Conduit Bender Full Assembly, 1-Inch EMT with Angle Setter™
51605
- 1-Inch assembled Iron Bender includes Klein’s unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

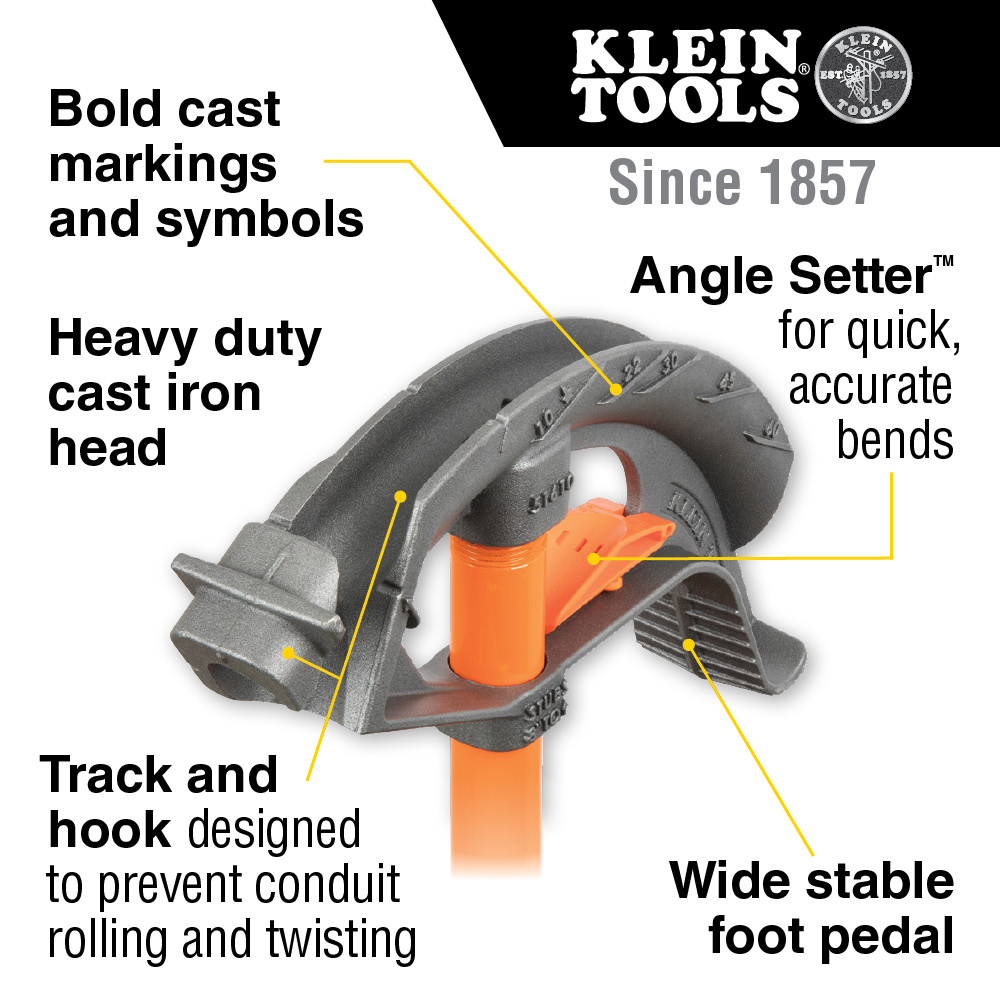

- Heavy duty cast ductile iron has the durability needed on the job site

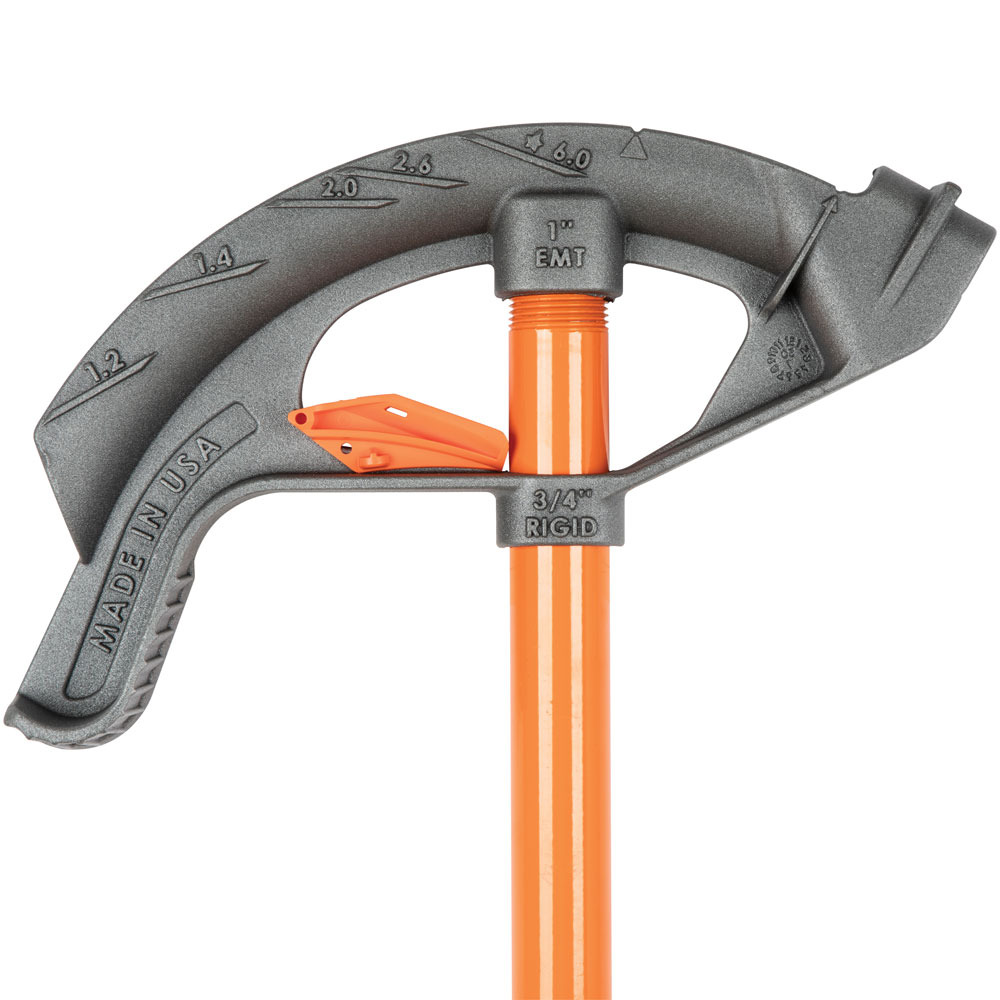

- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

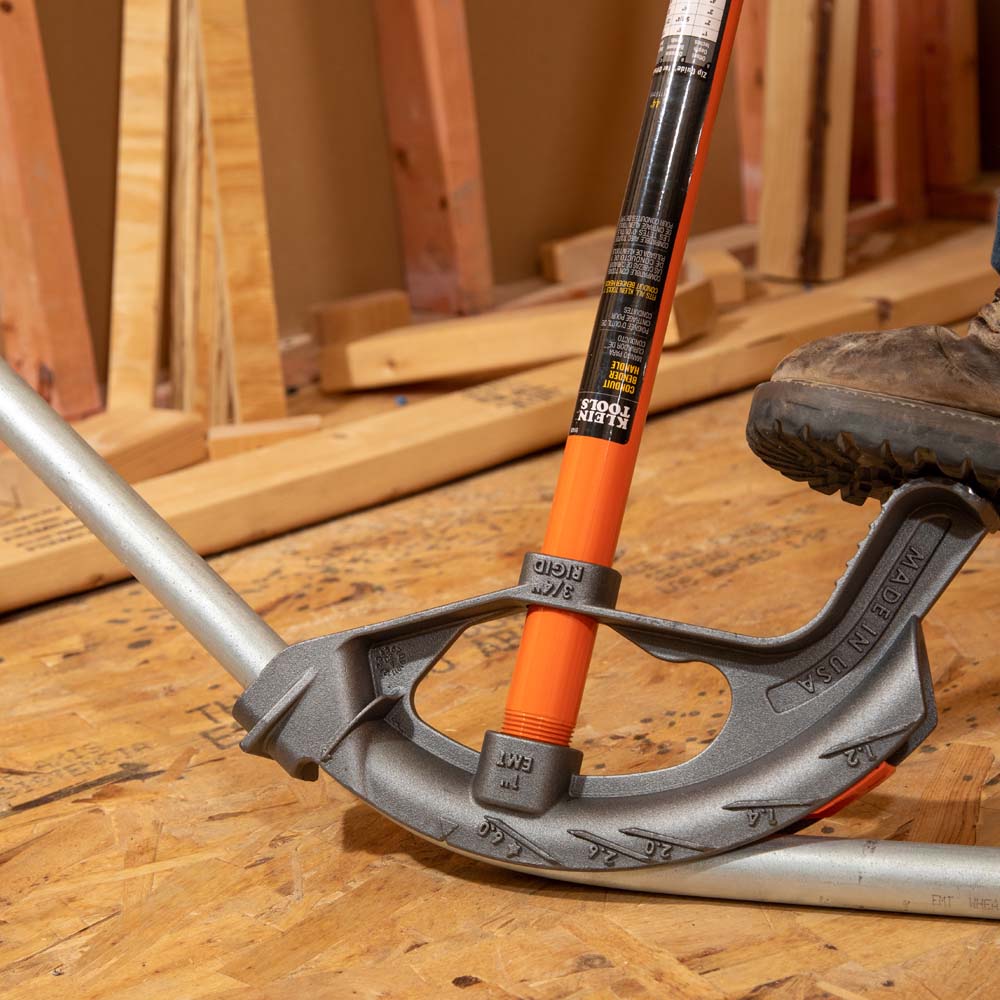

- Wide foot pedal provides excellent stability, leverage, and comfort

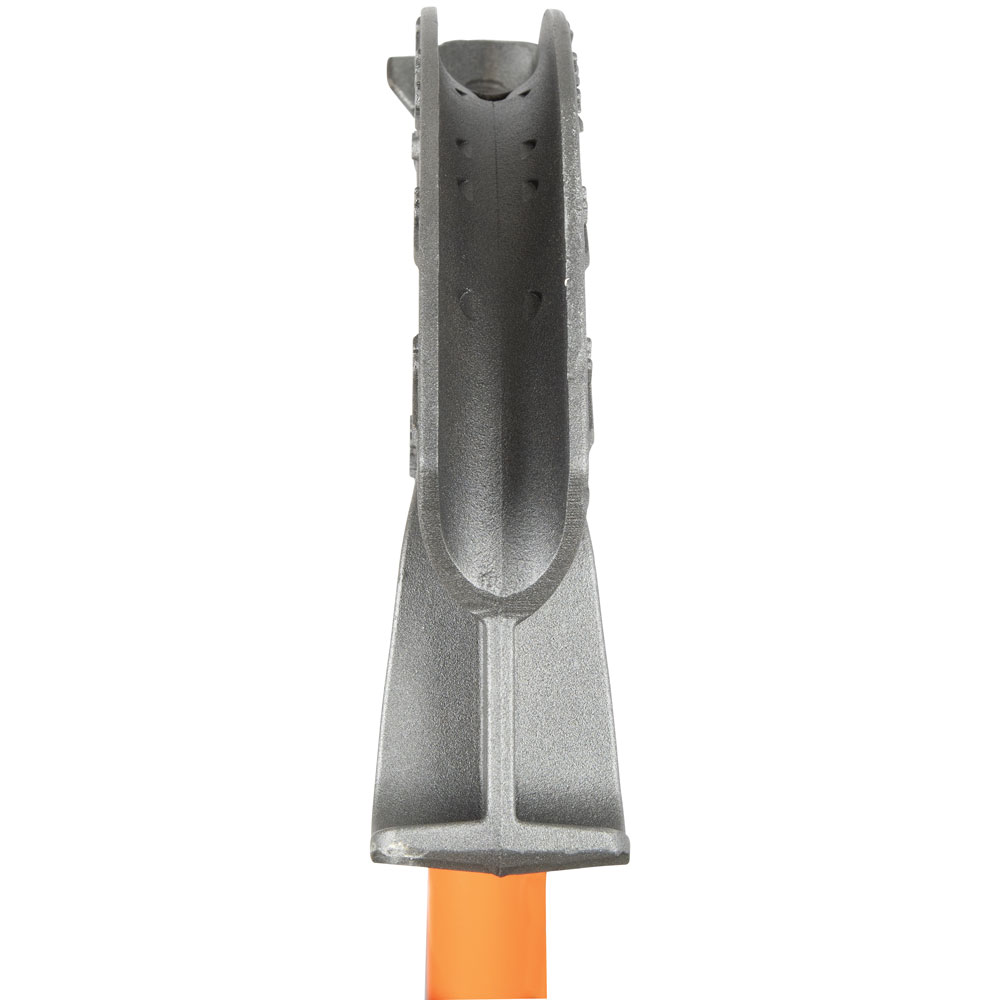

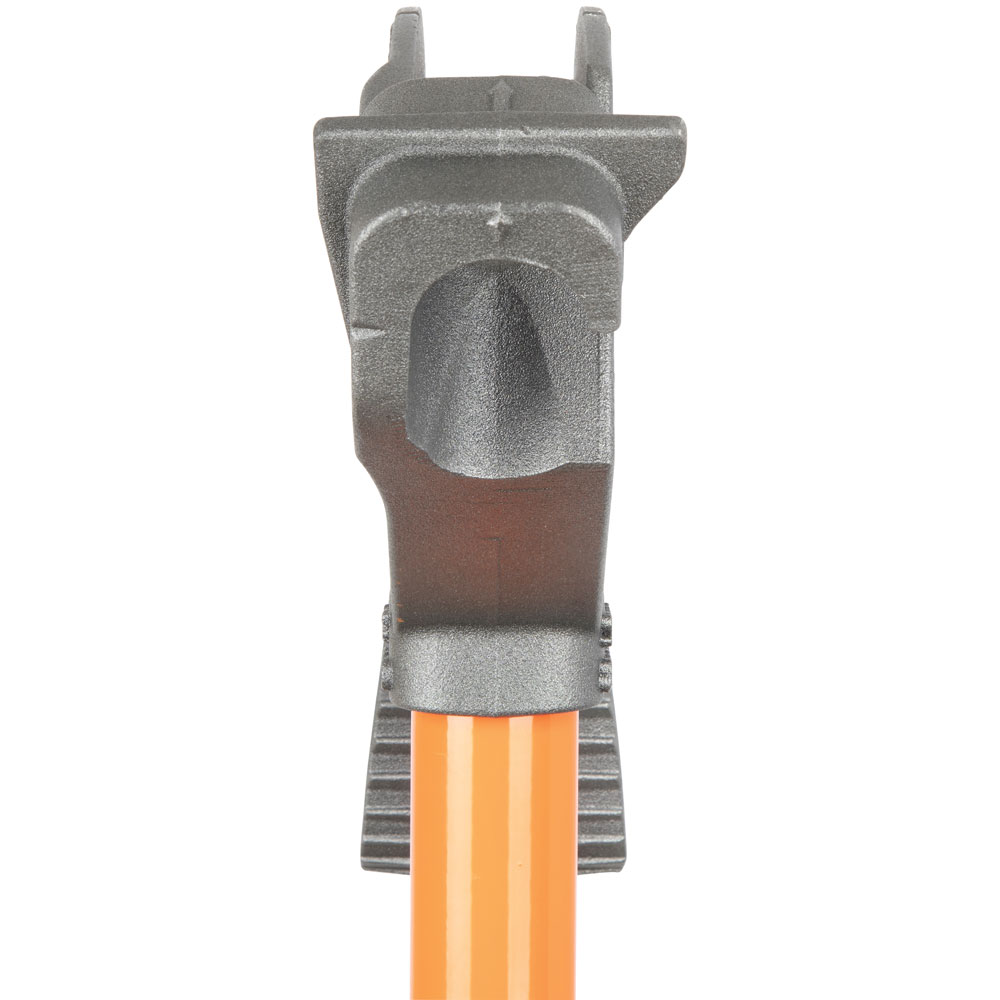

- Interior hook surface prevents conduit from rolling or twisting during bends

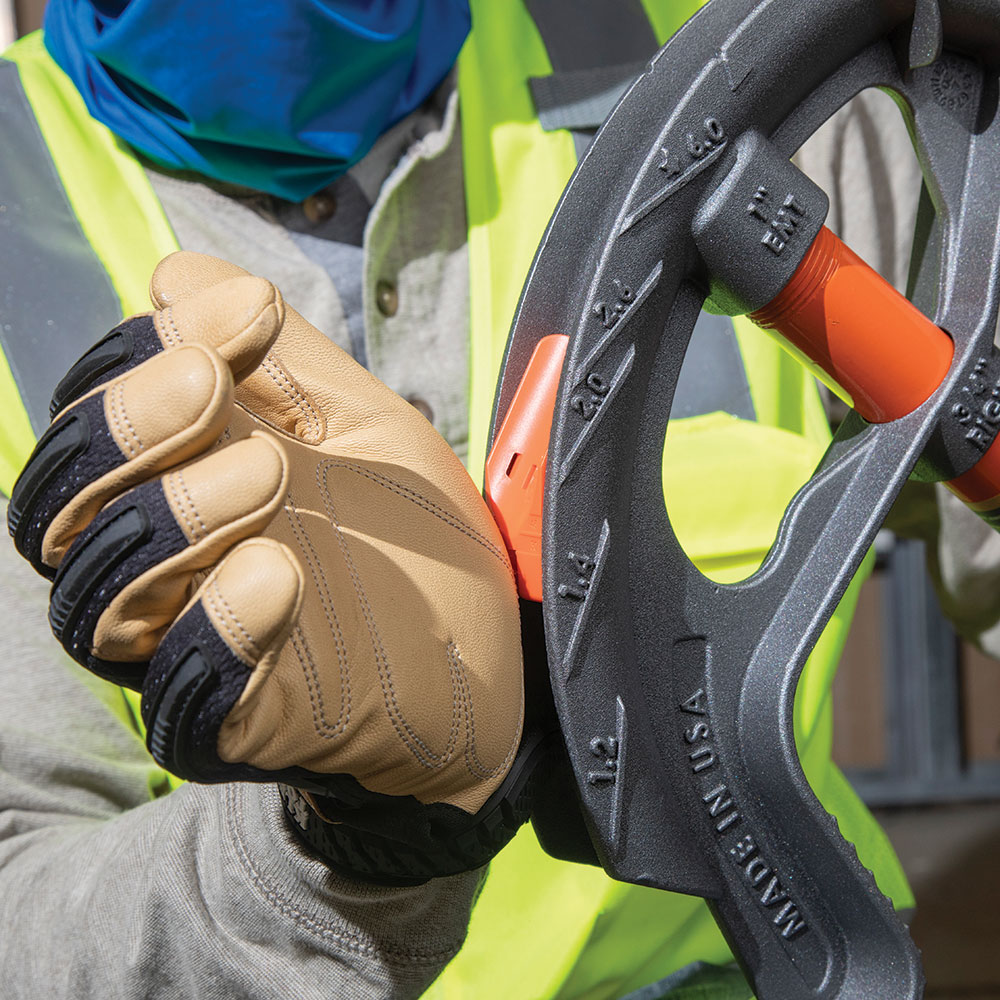

- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

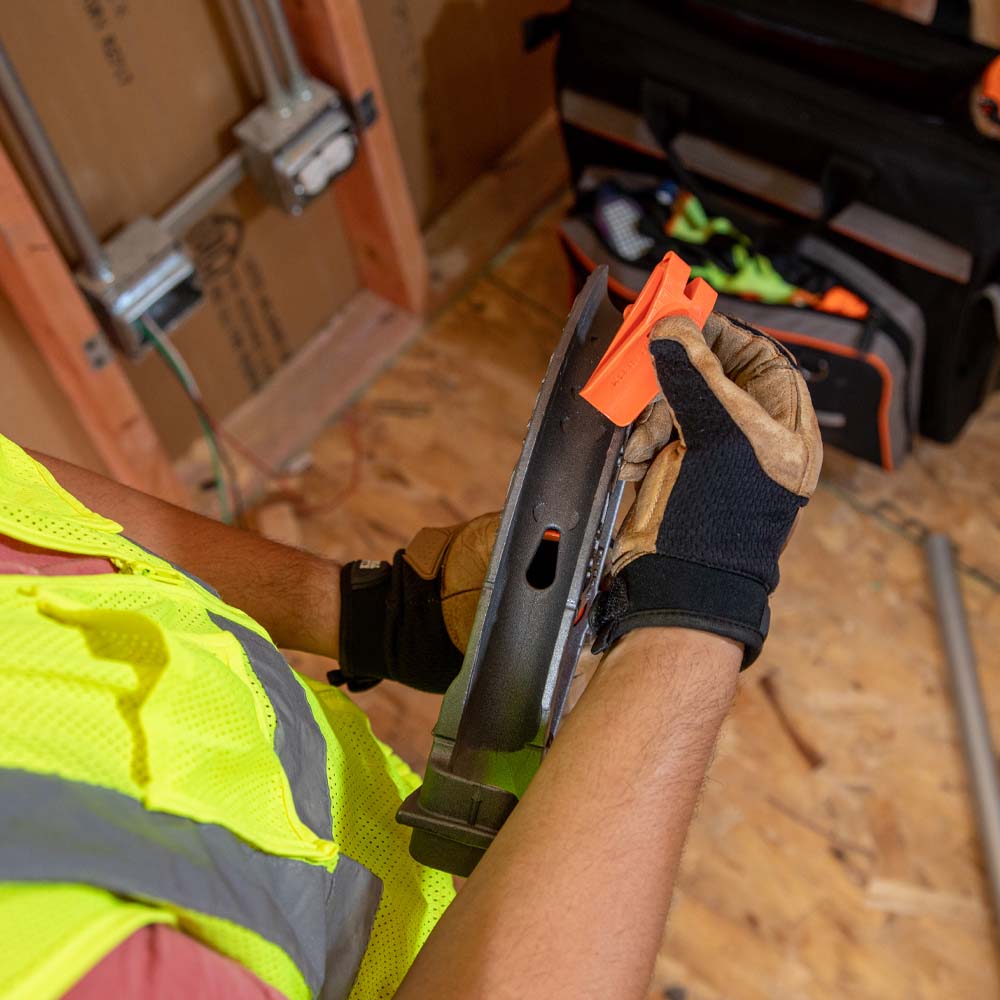

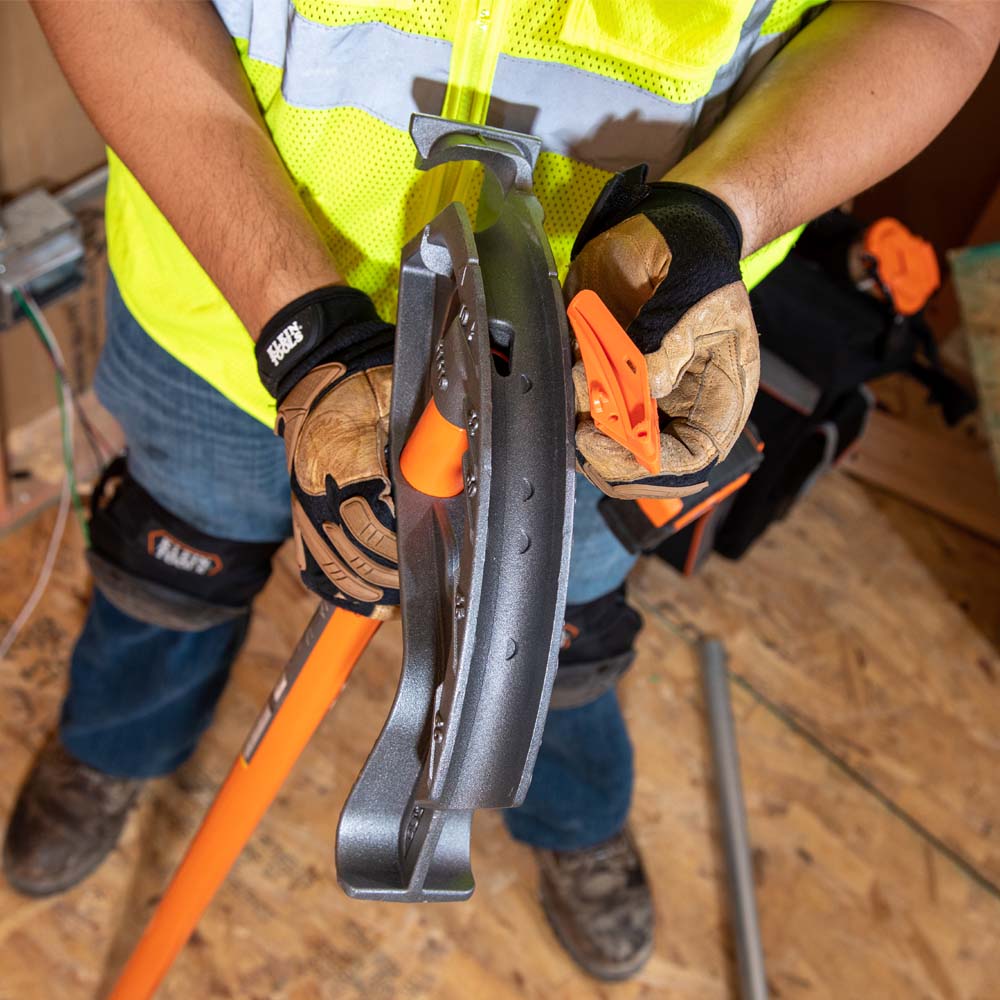

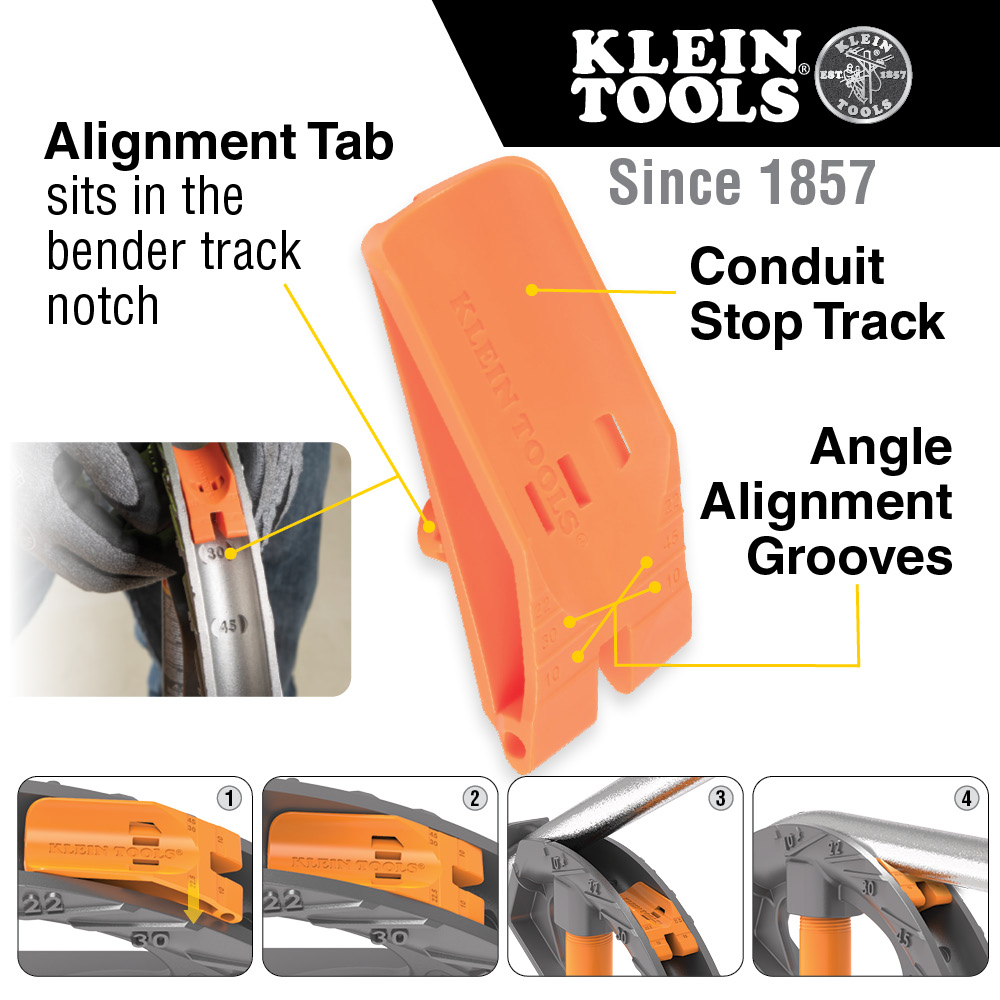

- Features Klein’s 1-Inch Angle Setter™ (Cat. No. 51613) that creates a hard stop for quick, accurate, and consistent bends
- Designed to bend 1-Inch EMT, 3/4-Inch Rigid and 3/4-Inch IMC conduit

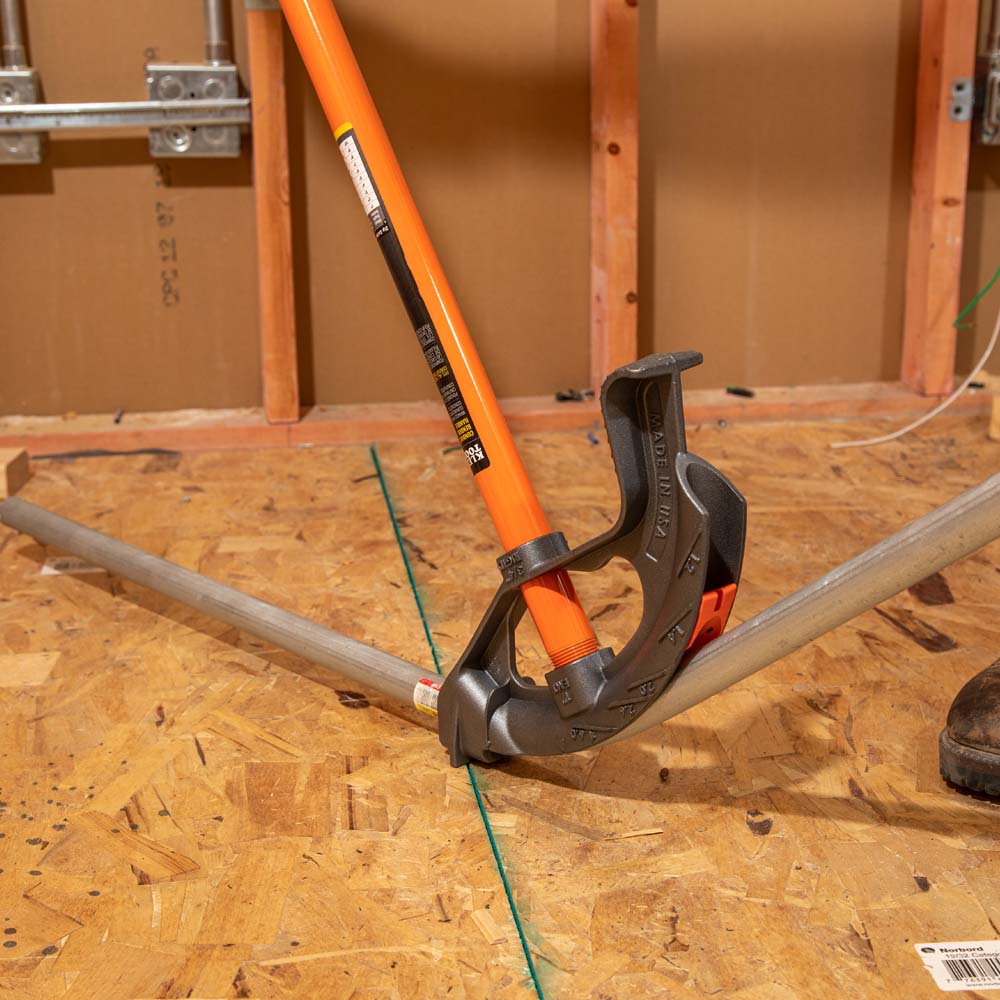

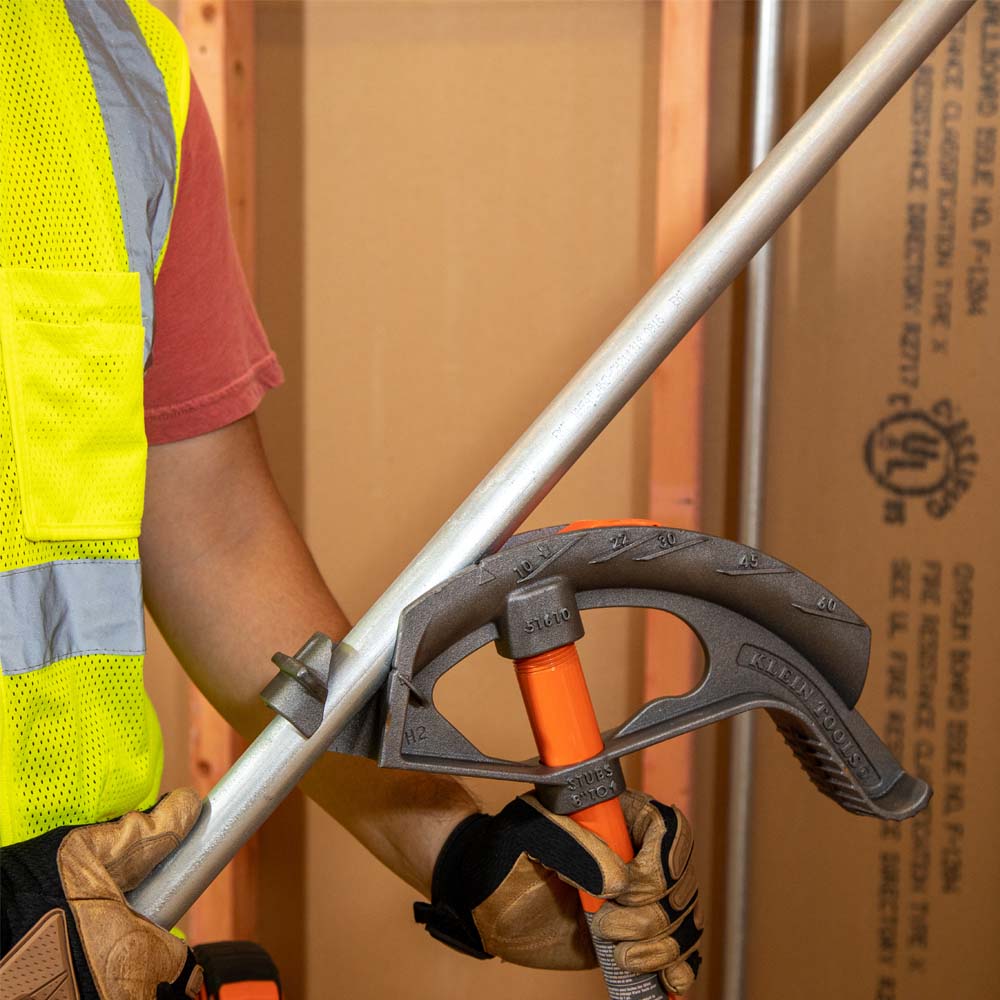

Klein Tools’ conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
Specifications
Type:
Iron Conduit Bender
Application:
Bending Conduit
Special Features:
Patent Pending Angle Setter™ Technology
Overall Length:
2.5'' (6.4 cm)
Overall Height:
52.1'' (132.3 cm)
Overall Width:
12.9'' (32.9 cm)
Material:
Iron
Handle Length:
44'' (111.8 cm)
Stub-Up Height:
8'' (20.3 cm)
Thinwall/EMT:
1'' (2.5 cm)
Rigid/IMC:
3/4'' (1.9 cm)
Conduit Size:
1''
Conduit Type:
EMT
Marking:
10°, 22°, 30°, 45°, 60°
Included:
51610 Bender Head; 51428 Handle; 51613 Angle Setter™
Weight:
11.8 lb (5.4 kg)
UPC:
092644516054
