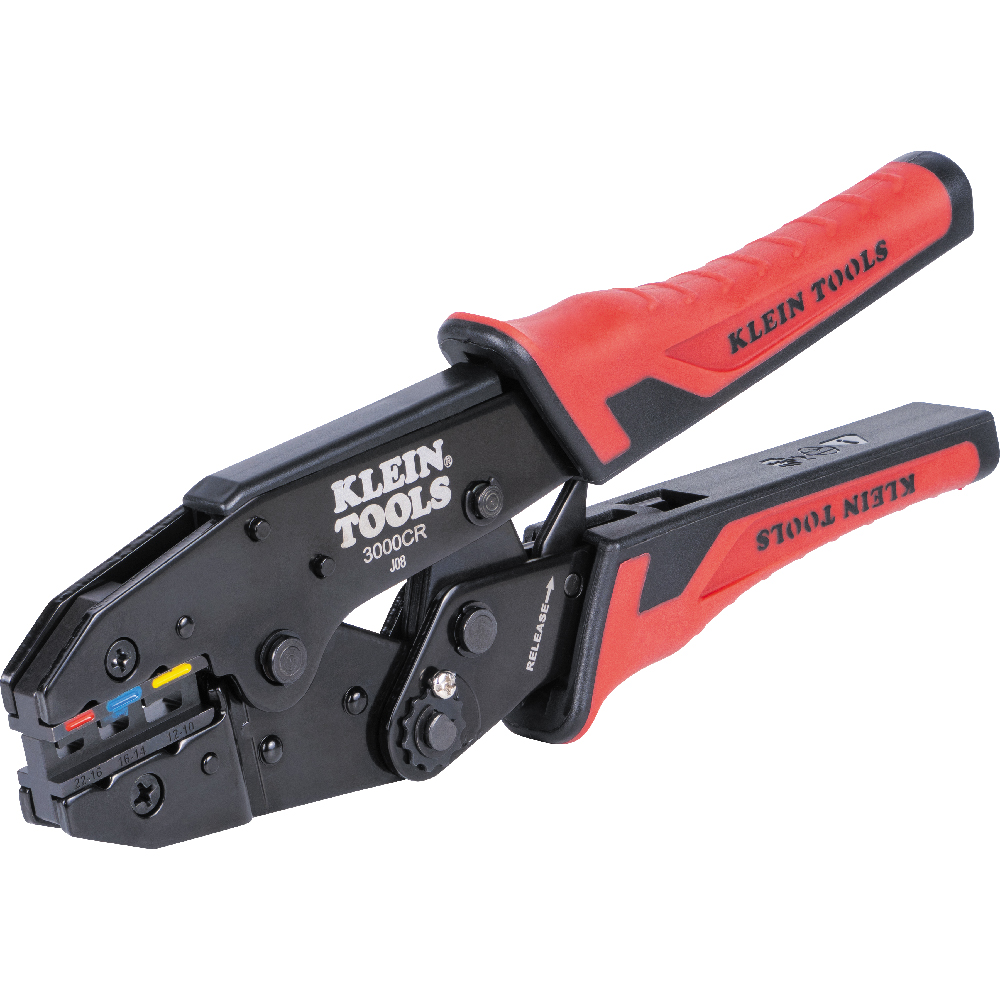

Ratcheting Heat Shrink Terminal Crimper, 10 to 22 AWG Wire

3007CR

  • Crimping tool crimps heat shrink terminals onto 10-22 AWG stranded copper wire
  • Adjustable compound action design puts more crimping power into each squeeze

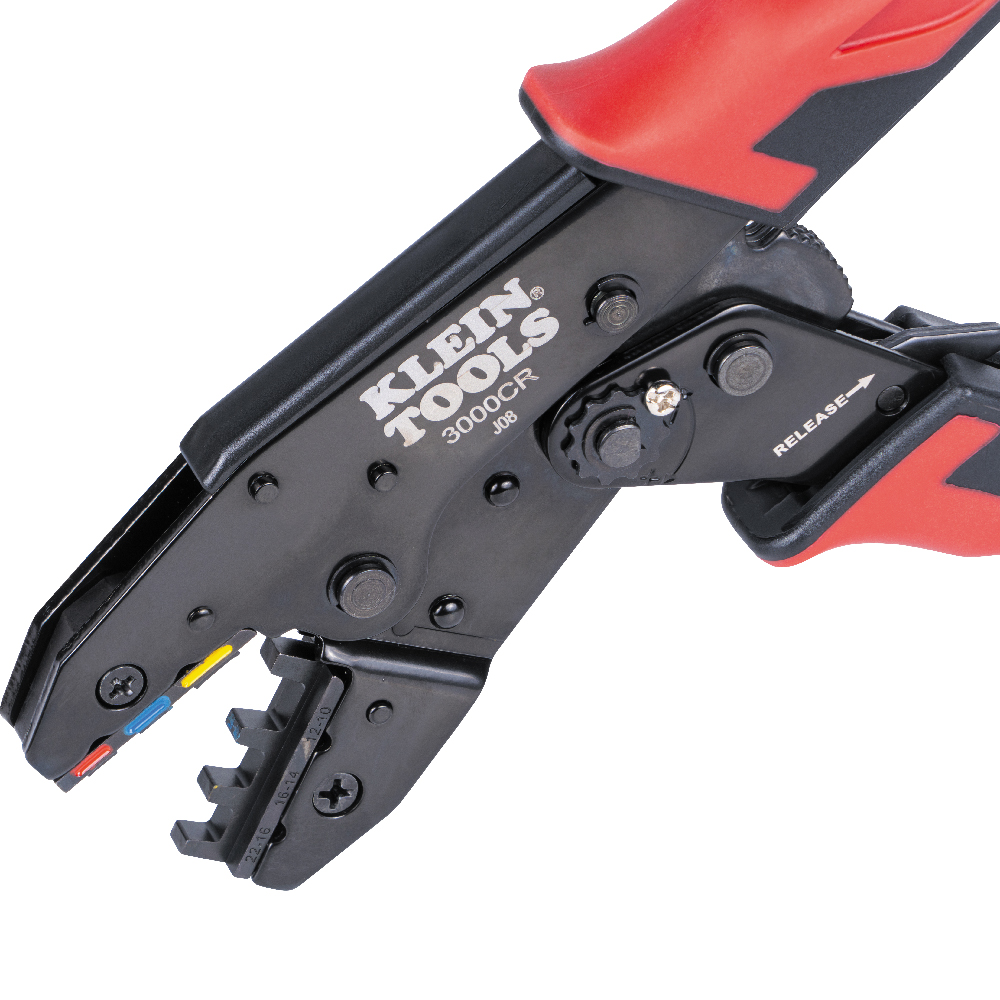

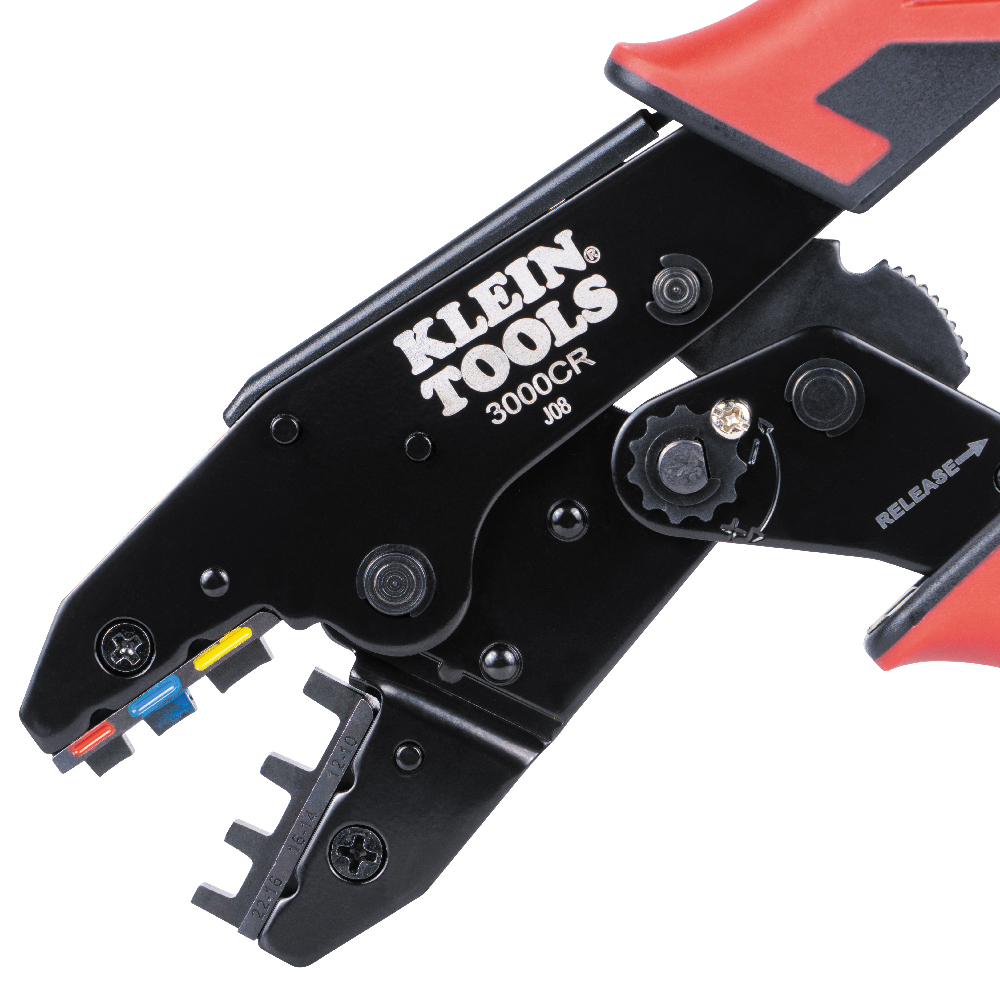

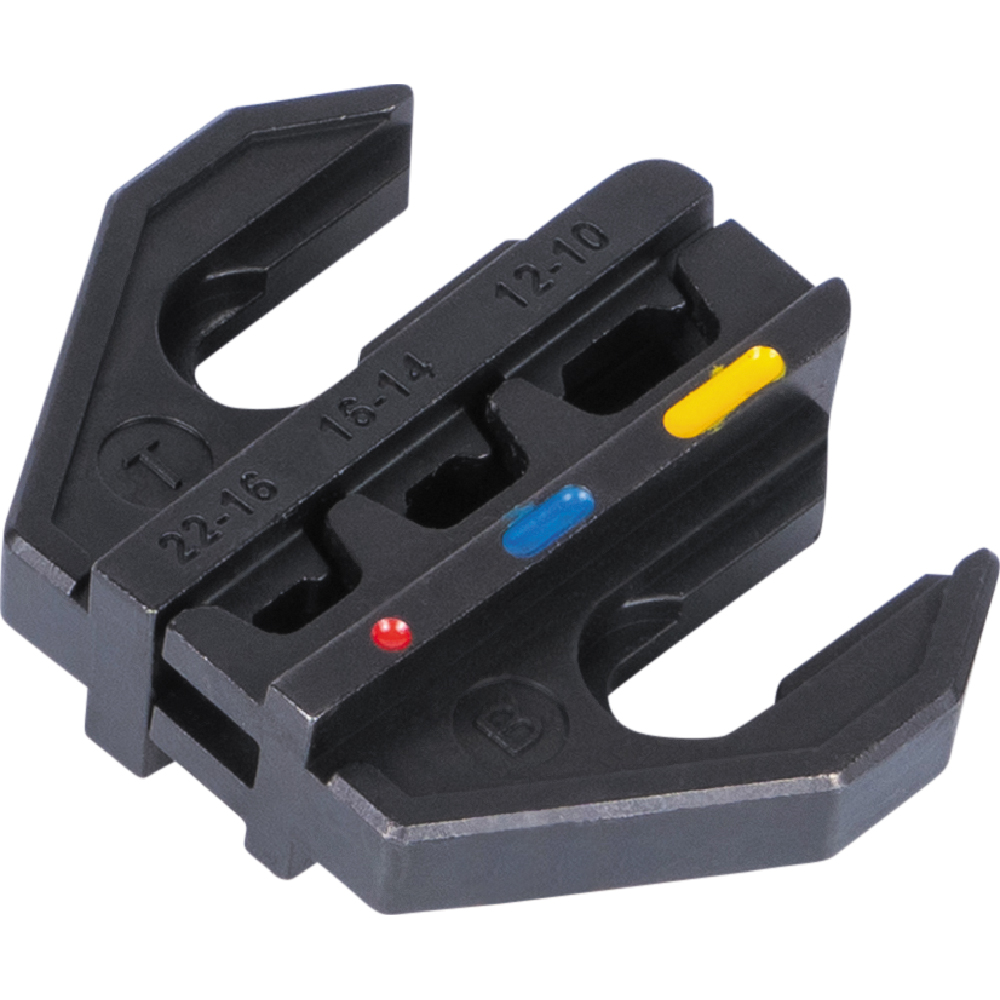

  • Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
  • Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
  • Unique cavity design provides consistent crimp from either side of the tool
  • Dial adjusts the amount of force applied to the crimp
  • Dual-material molded grips provide added comfort
Downloads
Images
High-Res JPG 3007cr_photo.jpg

The full-cycle Ratcheting Crimper crimps 10-22 AWG heat shrink wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of heat shrink terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time.

Specifications
Type:
Ratcheting Crimper
Application:
Heat-Shrink Terminal Crimping on Stranded Wire
Special Features:
3 Crimping Cavities
Material:
Steel
Handle Color:
Red/Black
Handle Finish:
Dual-Material
Cable Size:
10-22 AWG
Connector Type:
Heat Shrink
Overall Length:
9'' (22.9 cm)
Overall Height:
0.09'' (0.2 cm)
Overall Width:
3'' (7.6 cm)
Weight:
1.3 lb (0.6 kg)
UPC:
092644340581
Additional Information
Warnings
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
