Ratcheting Crimper Set, 10-22 AWG Terminals

3000CRKIT

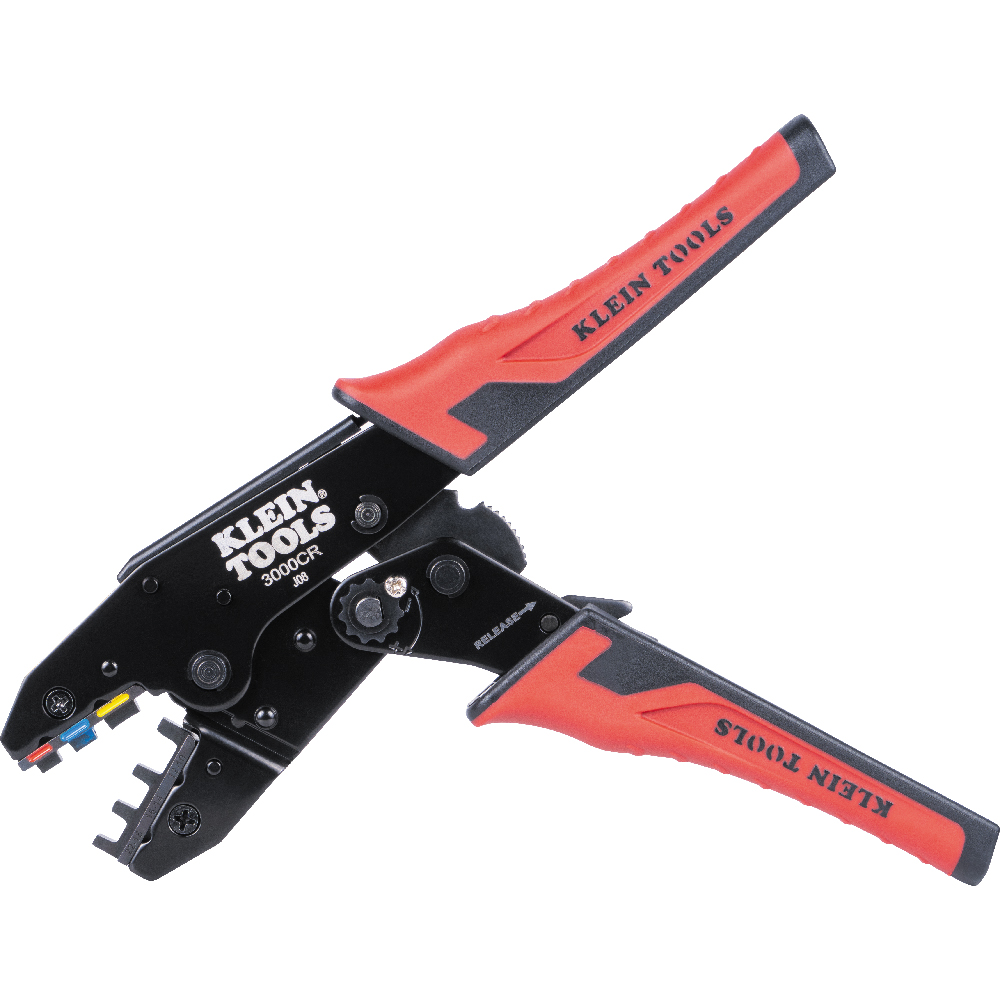

  • Ratchet crimping tool crimps insulated, non-insulated, heat shrink and ferrule terminals onto 10-22 AWG stranded copper wire
  • Adjustable compound action design puts more crimping power into each squeeze

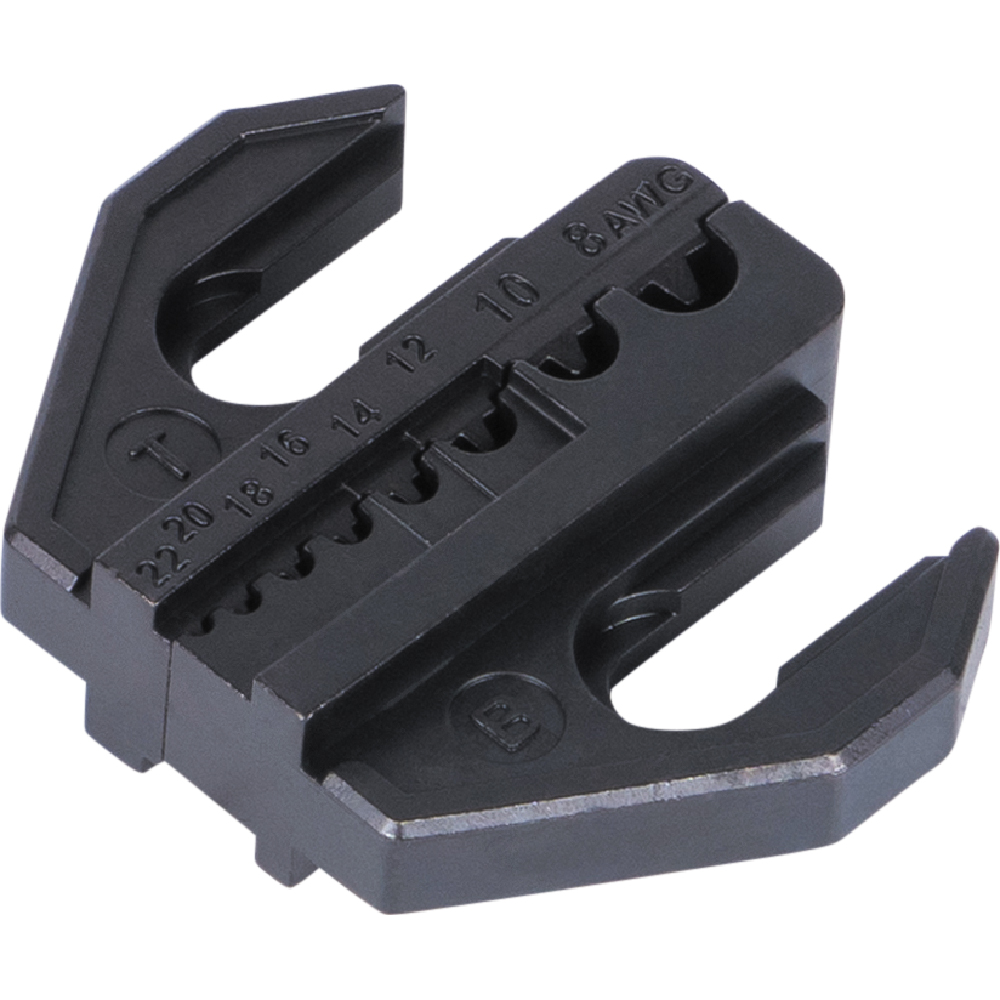

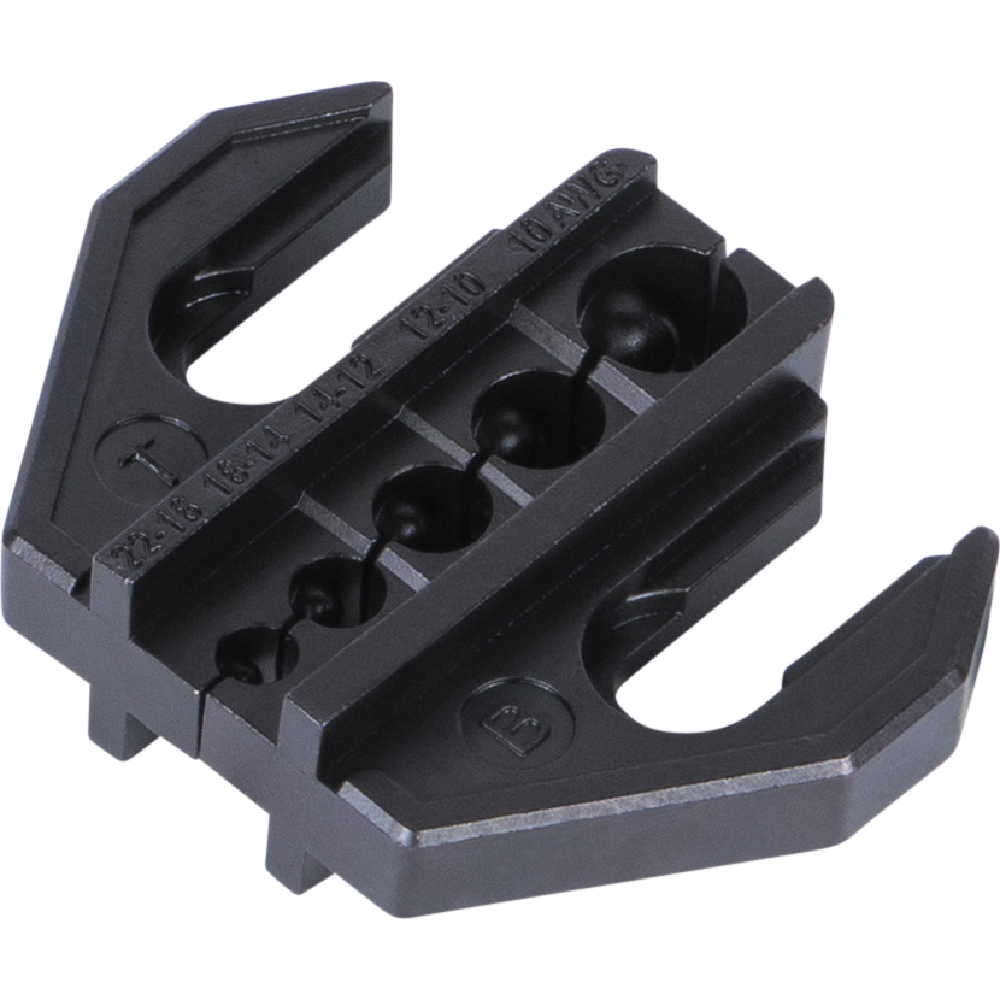

  • Four interchangeable dies with multiple cavities are specially designed for each terminal type for 10-22 AWG terminals
  • Hard plastic carrying case keeps tool and crimping dies organized and safe from damage
  • Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
  • Dial adjusts the amount of force applied to the crimp
  • Dual-material molded grips provide added comfort
Downloads
Images
High-Res JPG 3000crkit_photo.jpg

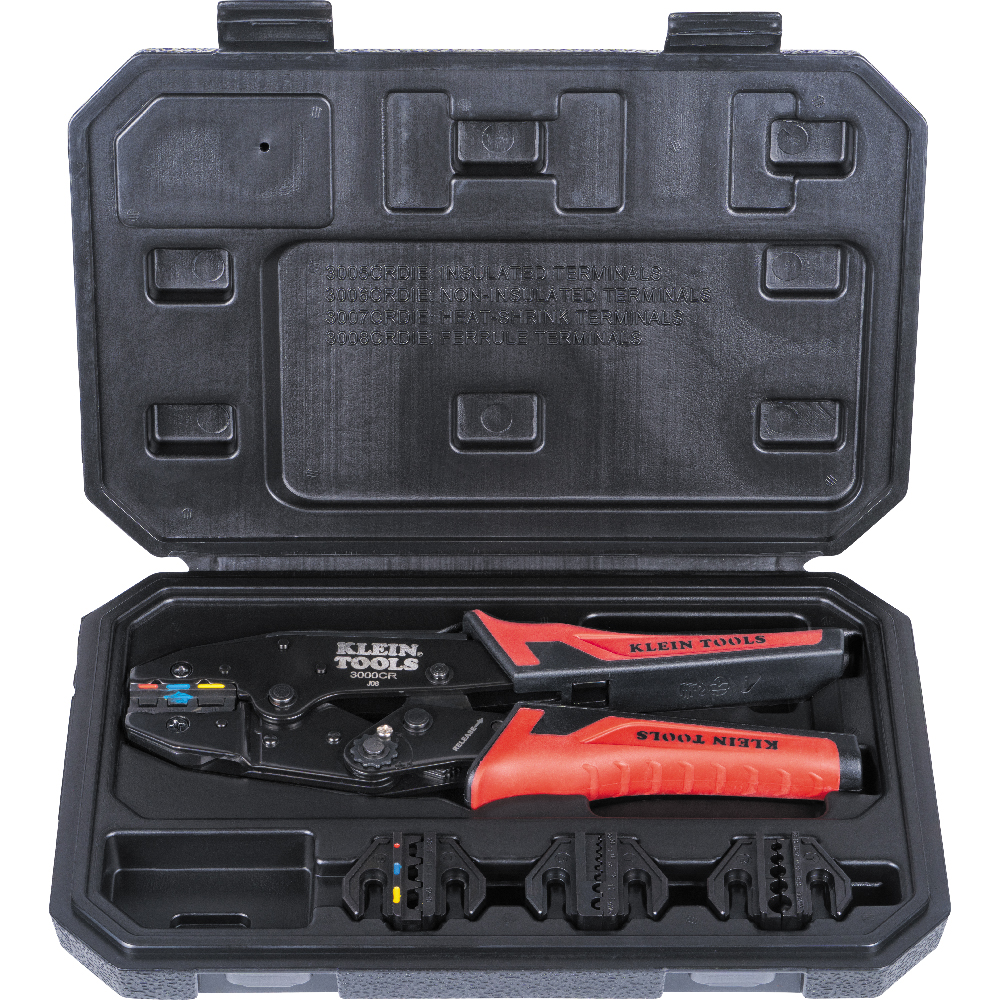

The full-cycle Ratcheting Crimper Set crimps 10-22 AWG insulated, non-insulated, heat shrink and ferrule wire terminals. Set comes with ratcheting crimper tool, four interchangeable crimping dies and carrying case. Each crimping die features multiple crimping cavities that are specially designed for each terminal type.

Specifications
Type:
Ratcheting Crimper
Application:
Insulated, Non-Insulated, Heat Shrink, Ferrule Wire Terminals
Special Features:
3 Crimping Cavities
Overall Length:
10.6'' (27 cm)
Overall Height:
1.5'' (3.8 cm)
Overall Width:
7'' (18 cm)
Material:
Steel
Included:
Ratcheting Crimper Tool, (4) Interchangeable Dies, Carrying Case
Weight:
1.3 lb (0.6 kg)
UPC:
092644340628
Additional Information
Warnings
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
