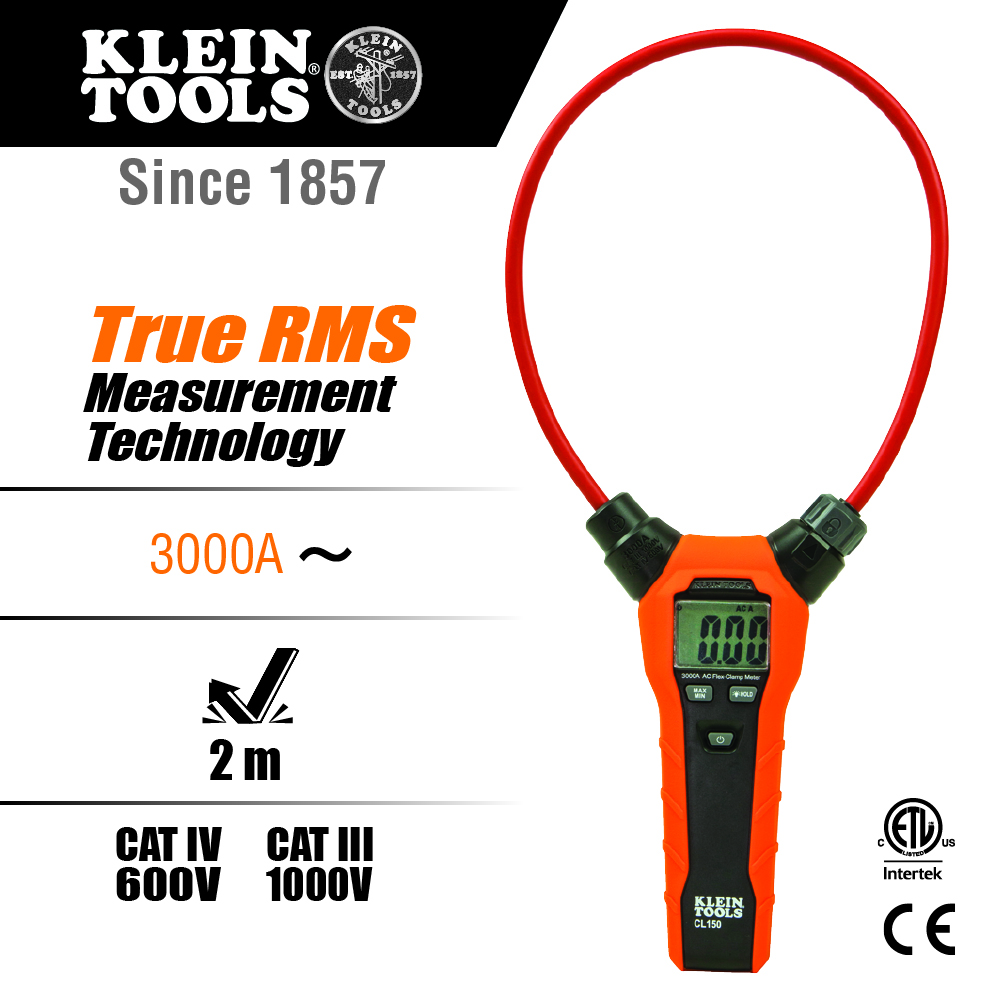

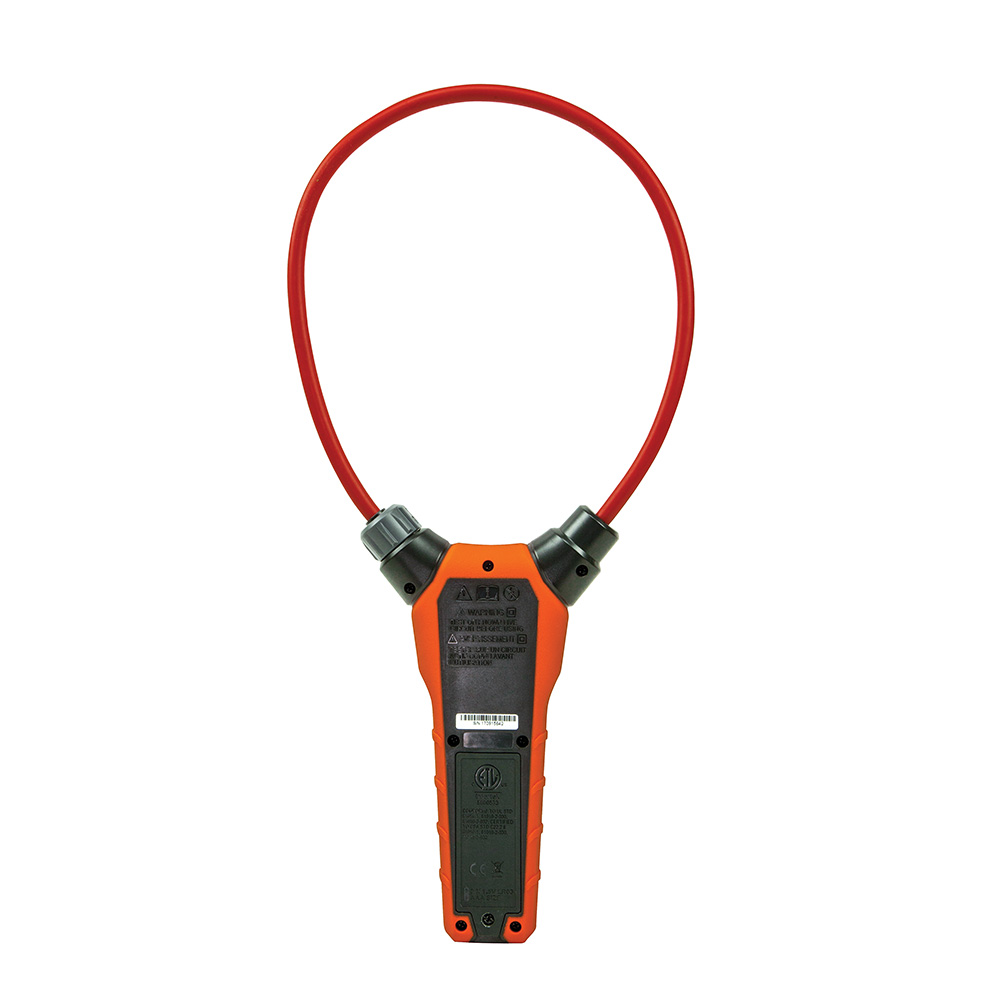

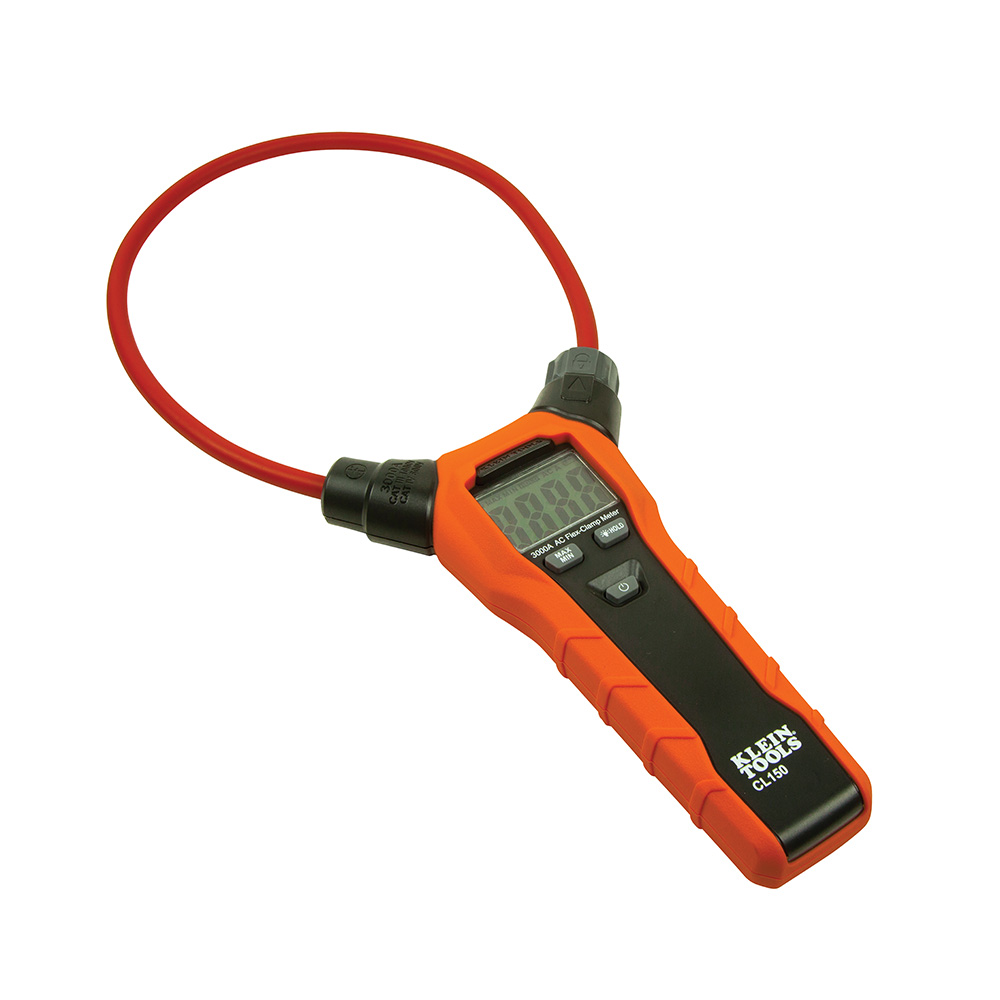

Clamp Meter, Digital AC Electrical Tester with 18-Inch Flexible Clamp
CL150
- Clamp meter for measuring AC current

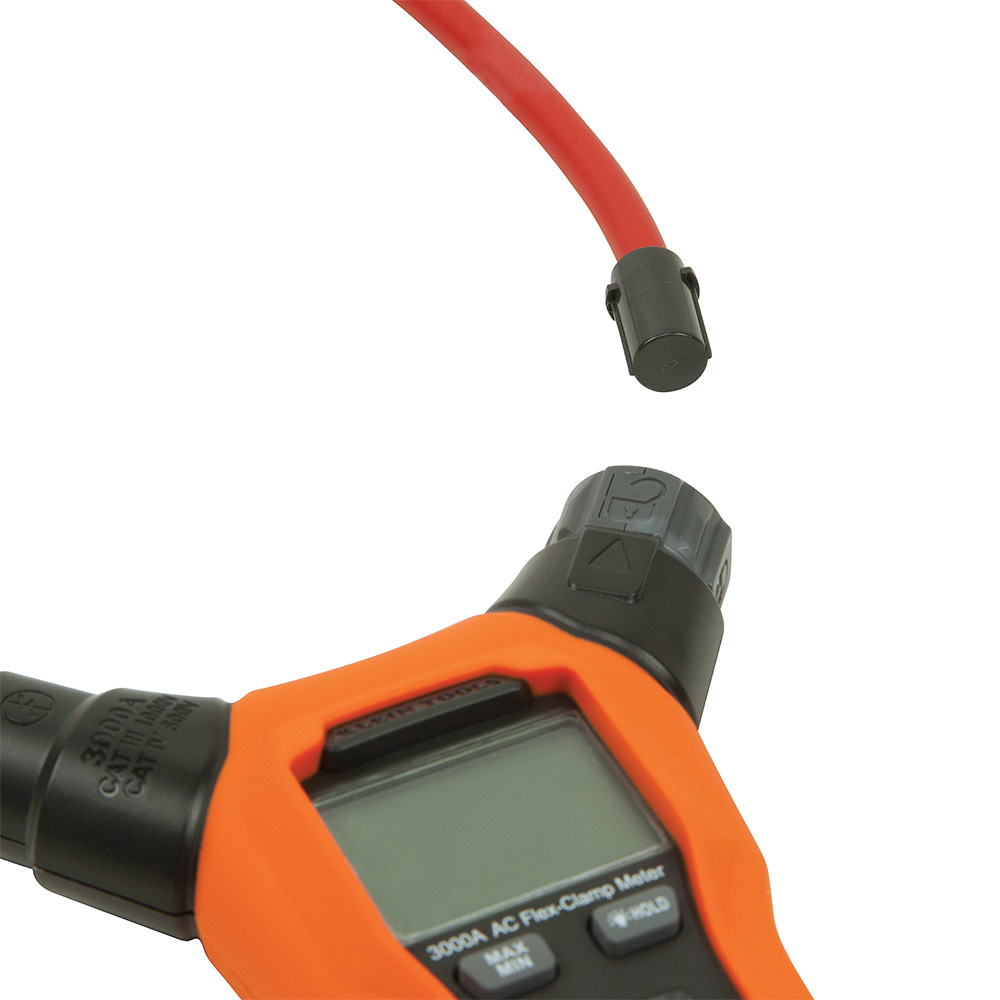

- 18-Inch flexible clamp on meter enables measurements in areas that are difficult to access
- True RMS CAT IV 600V, CAT III 1000V meter
- Backlit LCD display for clear readings with 3000 count
- Durable, with drop protection to 6.6-feet (2 m)
- Auto-power off after 15 minutes of non-usage conserves battery life
- Low battery indicator and easily accessible battery compartment
- Includes Flexible AC Current Clamp Meter, instruction manual, storage pouch, 2 x AAA batteries

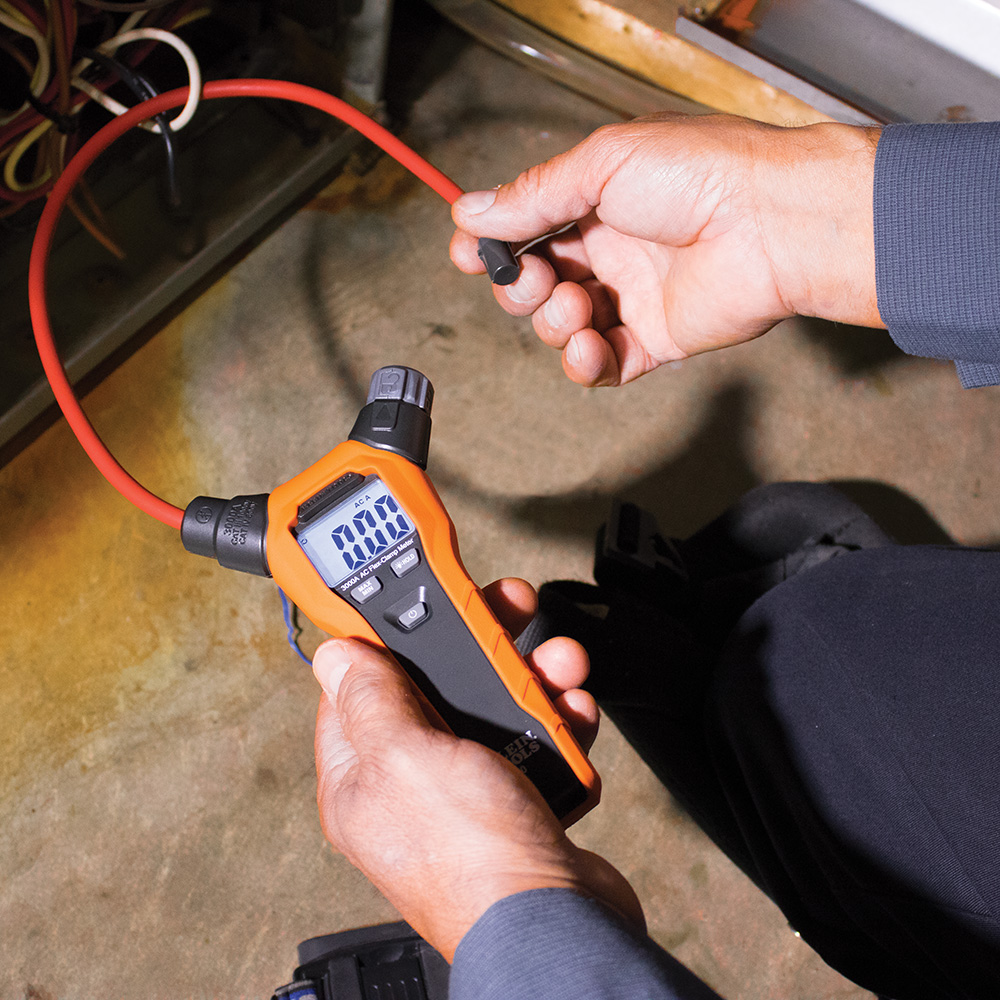

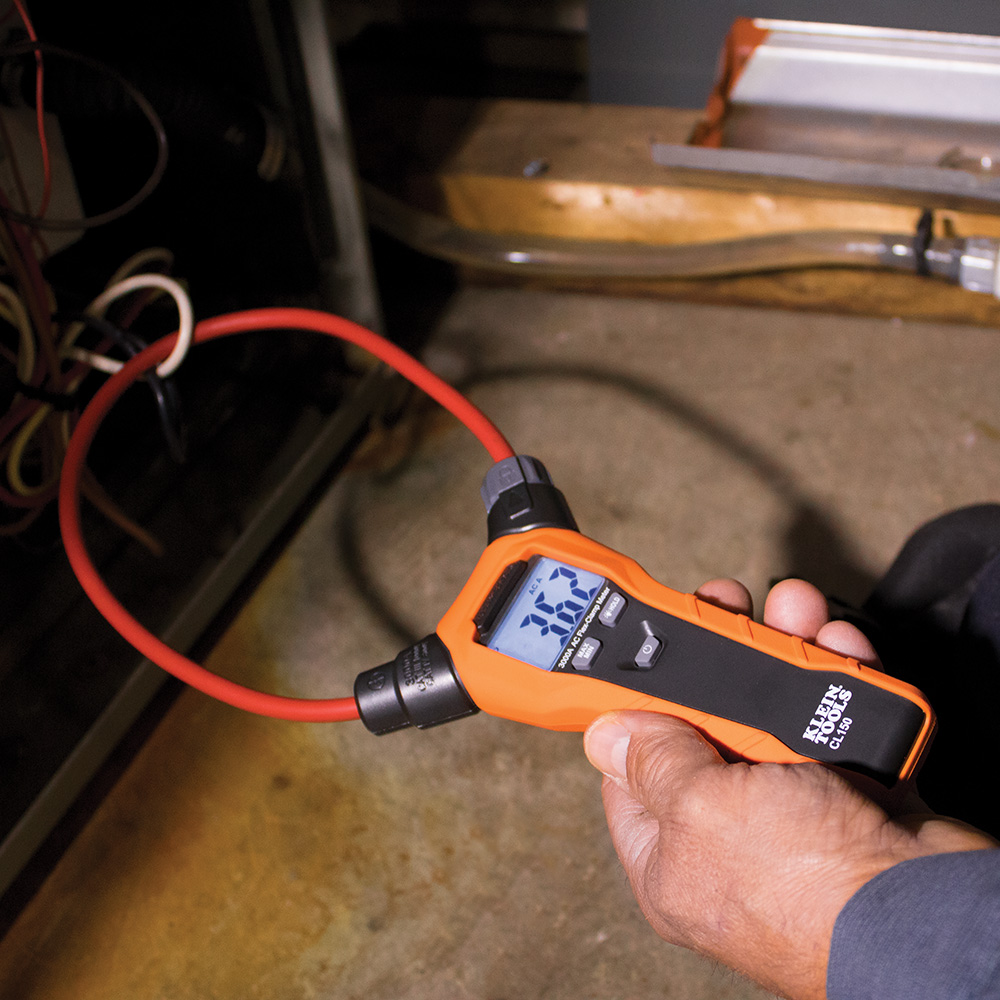

This clamp meter is easy to use, stand-alone, and features an 18-Inch flexible clamp that allows access into panels and hard to reach areas (bundled wires, awkward conductors, and PLC cabinets). True RMS readings with CATIV 600V or CATIII 1000V safety rating. Features backlit LCD display, auto-power off after 15 minutes, Max/Min, Hold, Auto-Ranging and Low Battery icons.
Specifications
Type:
Flexible AC Current Clamp
Application:
Measures AC Current
Special Features:
Auto-power Off, Max/Min, Hold, Auto-Ranging and Low Battery Icons
Material:
ABS
Batteries:
2 x AAA
Auto-Power Off:
Yes
Jaw Size:
18'' (45.7 cm)
Drop Protection:
6.6' (2 m)
Display:
Backlit 3000 Count
Functions:
Auto-range, Hold, Max/Min Value, Auto-power Off
Current:
0.01 to 3000A AC
Standard:
CATIV 600V, CATIII 1000V
Included:
Clamp Meter; Carrying Case; Instruction Manual; and 2 x AAA Batteries
Overall Length:
10.50'' (26.7 cm)
Overall Height:
1.06'' (2.7 cm)
Overall Width:
4.12'' (10.5 cm)
Weight:
5.90 oz (167.0 g)
UPC:
092644690990
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
- Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
