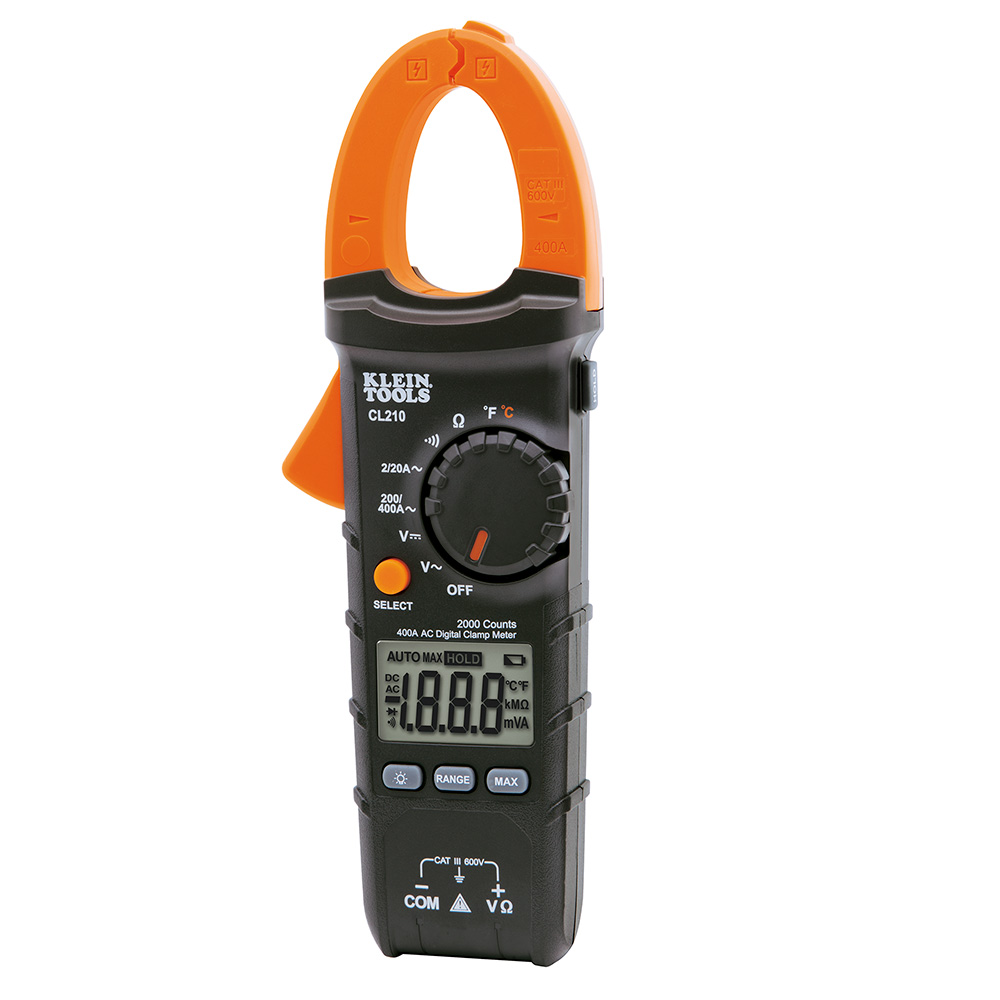

Clamp Meter, Digital AC Auto-Ranging Tester with Thermocouple Probe
CL210
This product is no longer in production
There is a newer model of this item:

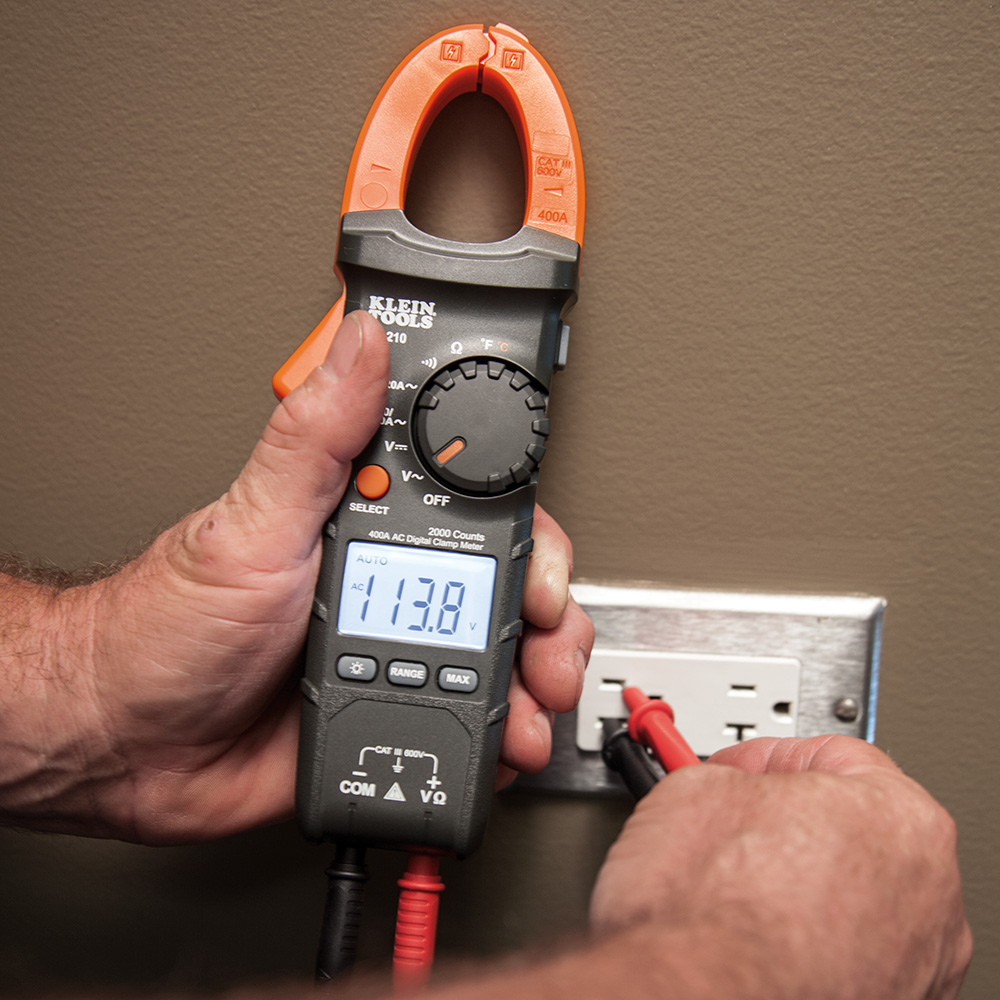

- Clamp Meter measures AC current via the clamp and AC/DC voltage, resistance and continuity via test-leads
- Thermocouple probe measures temperature
- Built to withstand a 3.3-foot (1 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Backlit display for clear readings
- Powers off automatically after 15 minutes of non-use to conserve battery life

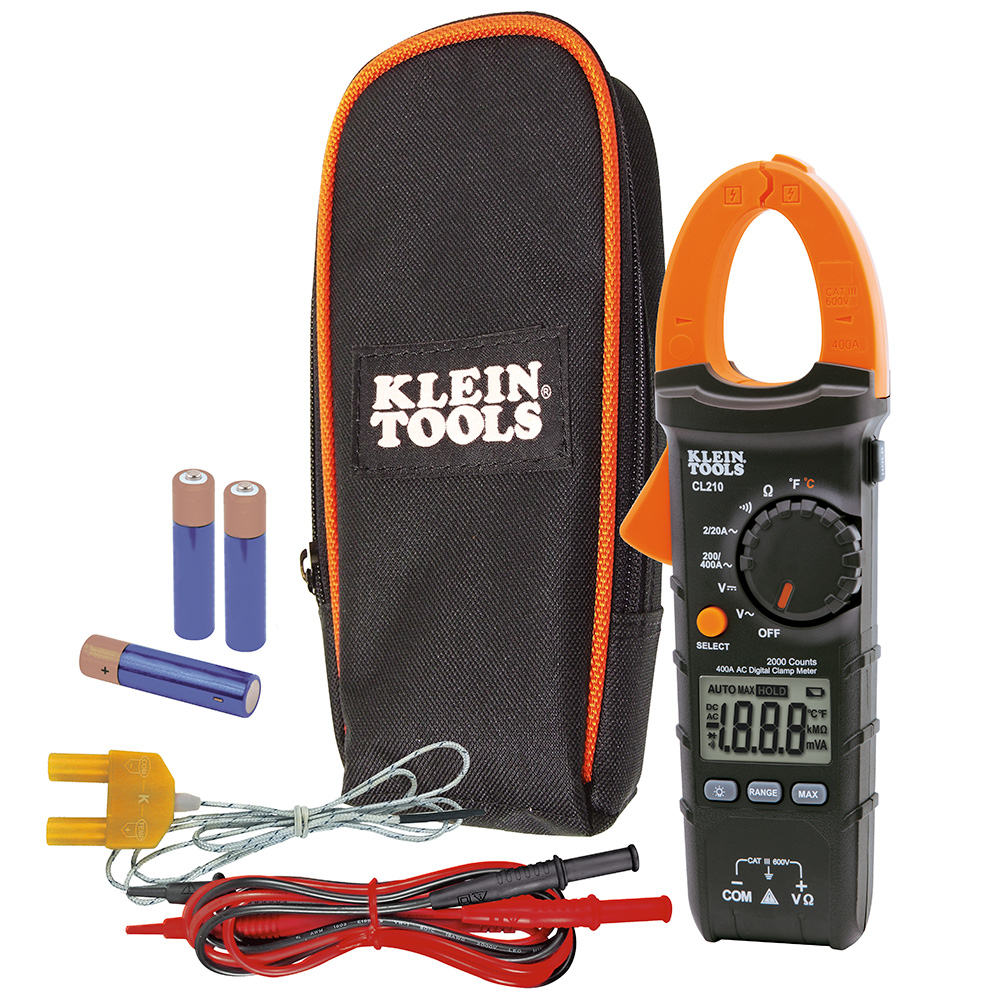

- Includes a carrying case, test leads and 3 x AAA batteries

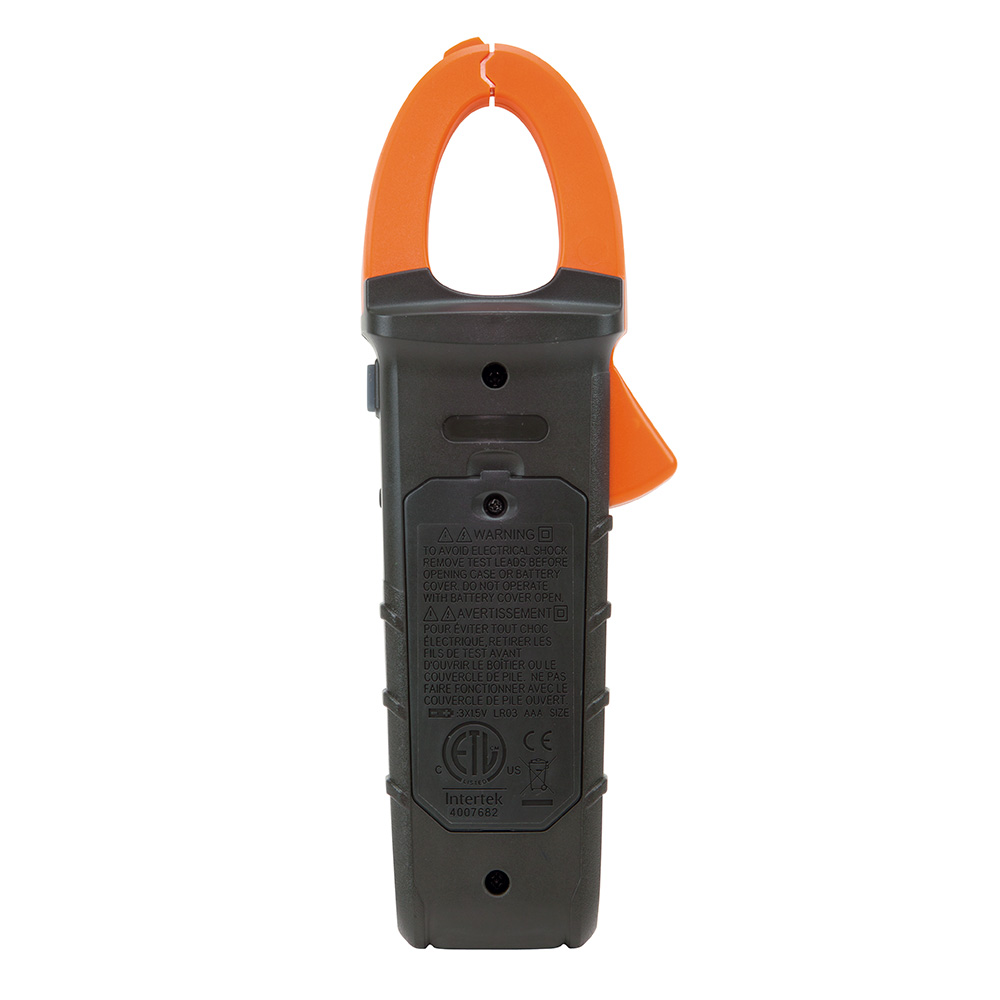

- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Klein Tools CL210 is an automatically ranging digital clamp meter that measures AC current via the clamp, AC/DC voltage, resistance and continuity via test-leads, and temperature via a thermocouple probe. Exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.
Specifications
Type:
Clamp Meter with AC and Type K Thermocouple Thermometer
Application:
Measures AC Current
Special Features:
Features Low Battery Indicator
Batteries:
3 x AAA
Jaw Size:
1.12'' (2.9 cm)
Drop Protection:
3.3' (1 m)
Display:
2000 Count LCD
Voltage:
600V AC; 600V DC
Frequency:
45 Hz to 400 Hz
Current:
400A
Ohms (Resistance):
20MO
Temperature Range:
-40° - 1832°F (-40° - 1000°C)
Standard:
CAT III 600V; CE Certified
Included:
Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Overall Length:
8.7'' (22.1 cm)
Overall Height:
1.61'' (4.1 cm)
Overall Width:
3.02'' (7.7 cm)
Weight:
10.1 oz (286 g)
UPC:
092644690587
Warnings
- Do not attempt to measure resistance or continuity on live circuits.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
