Scout® Pro Max Network Cable Tester With Remote Set
VDV501-770
- Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults

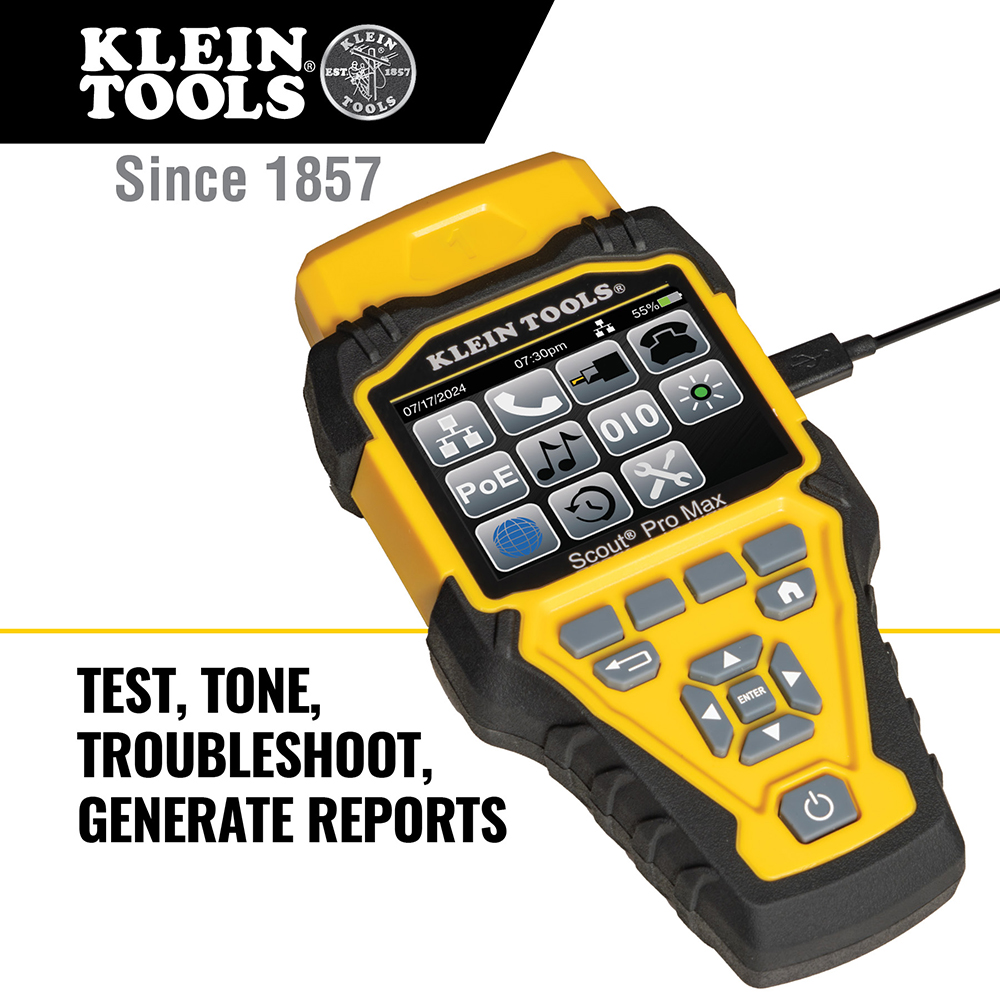

- Full color back-lit screen and internal memory to store, download, and output test results for easy report management

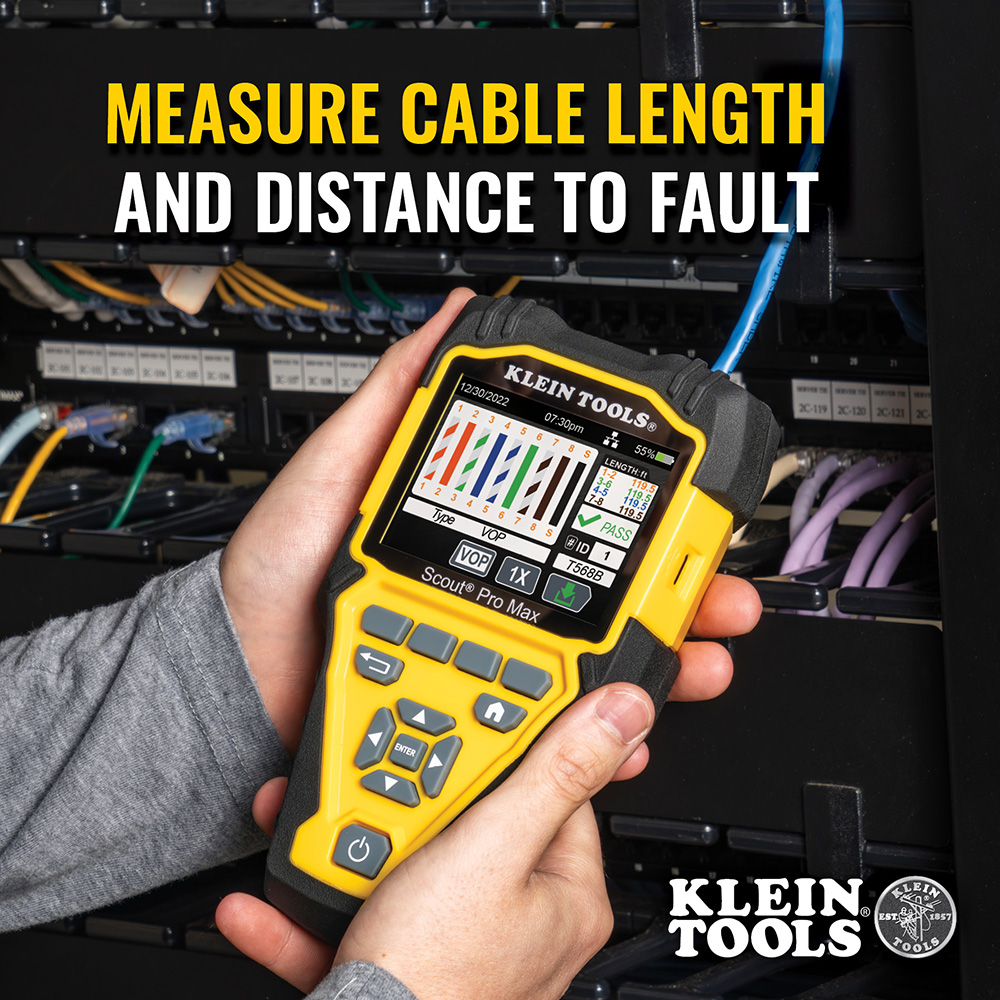

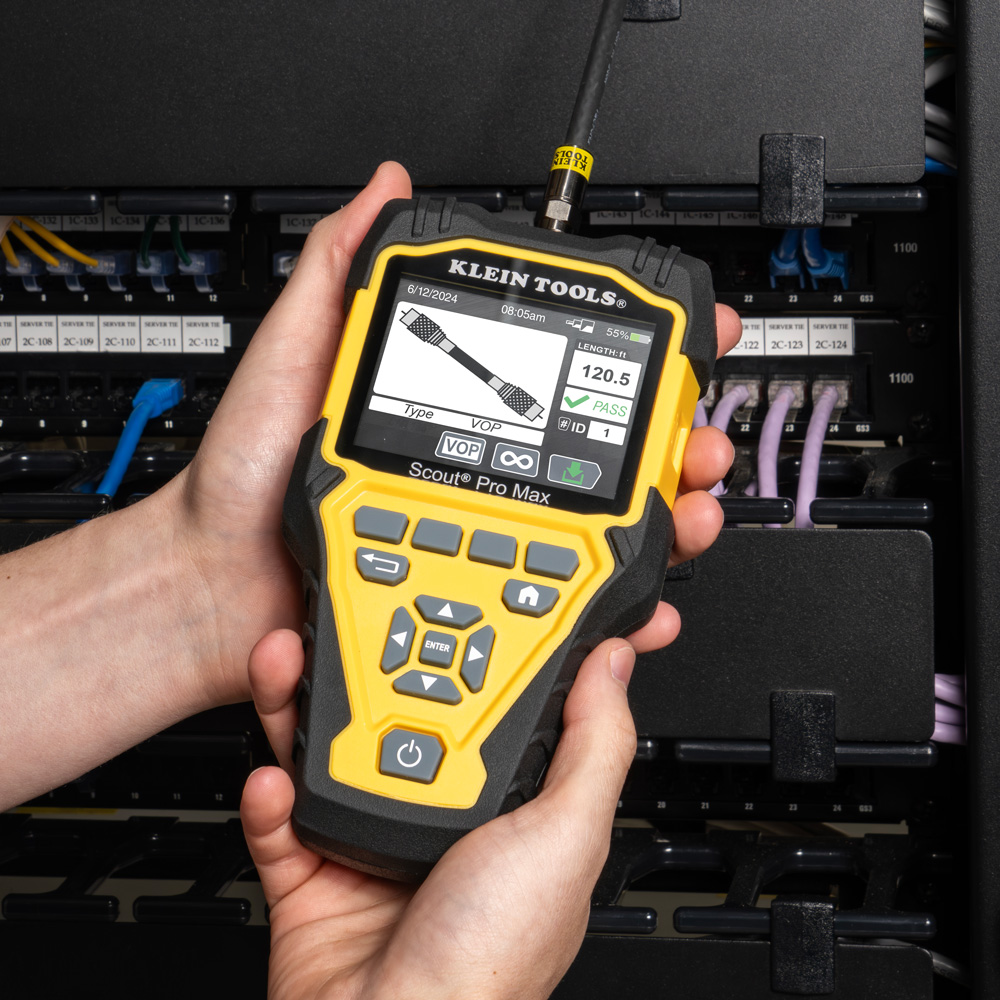

- Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
- Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)
- Locate and identify up to 20 locations with ID remotes for greater cable management and organization
- Detect network capabilities and connection speeds up to 10G bps
- Initiate hub blink to easily identify and locate cables on device and POTS testing

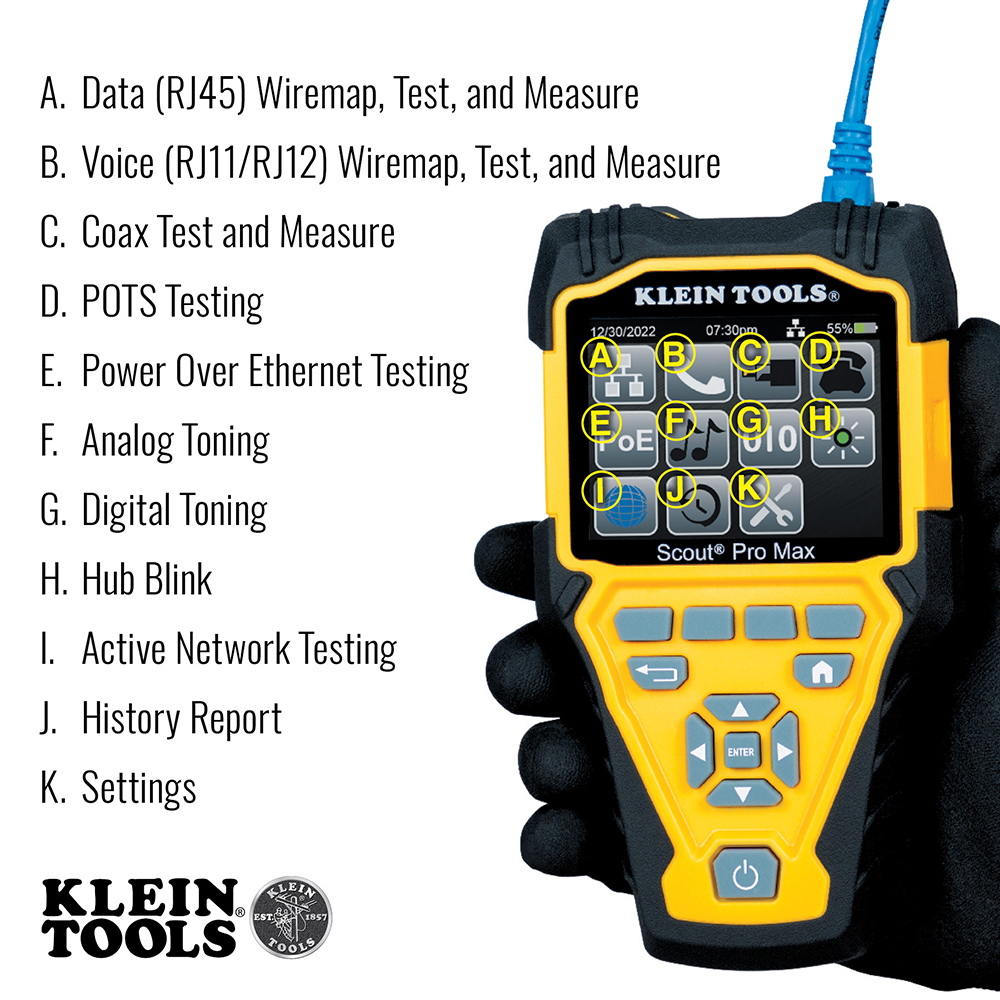

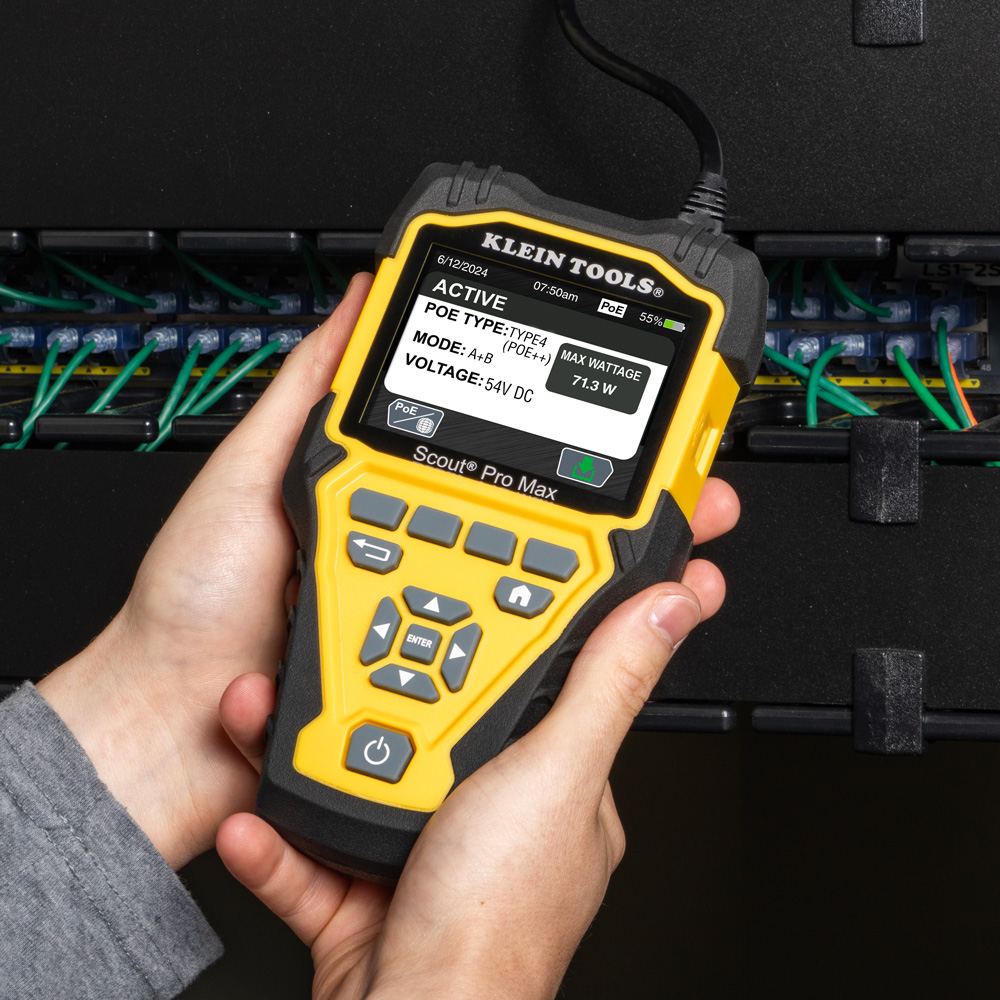

Scout® Pro Max tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing. It measures cable lengths (via TDR) and detects distance to faults. Generate reports to show custom test history. Tests shielded and unshielded cables. Trace up to 20 locations at a time with included remotes. Perform hub blink testing, measure active and passive Power over Ethernet (PoE). Test POTS, and detect active network capabilities.
Specifications
Type:
Twisted Pair, DATA, Voice, LAN, and Coaxial
Application:
Cable Testing
Special Features:
Measures Cable Length; Backlit LCD; Hub Blink
Overall Length:
8'' (20.3 cm)
Overall Height:
1.5'' (3.8 cm)
Overall Width:
4'' (10.2 cm)
Material:
Plastic and Metal
Batteries:
3× AA alkaline
Battery Life:
Active: 15 hr; Standby: 1 yr
Drop Protection:
6.6' (2 m)
Supported Remotes:
41
Connection & Adapter Types:
RJ11, RJ12, RJ45, Coax F
Display:
Backlit LCD
Multiple Style Tone Generator:
Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately
Cable Type:
DATA:, Shielded or Unshielded, CAT6; COAXIAL: RJ11, RJ12, RJ45
Cable Identification:
Includes 20 Remote Locators
Test & Measure Types:
Ethernet/Data and Coaxial
Accuracy:
± (2% + 3' or 1 m) with Known VoP and Consistent Cable Parameters
Included:

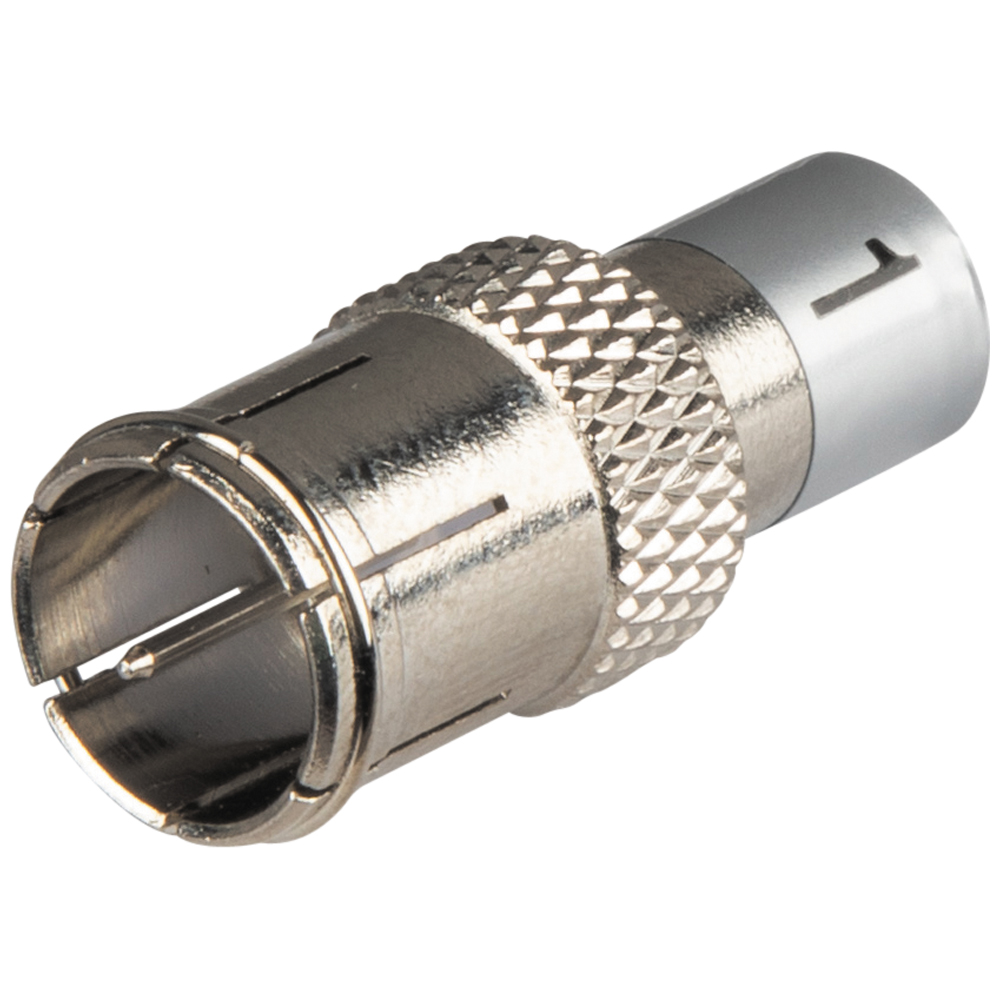

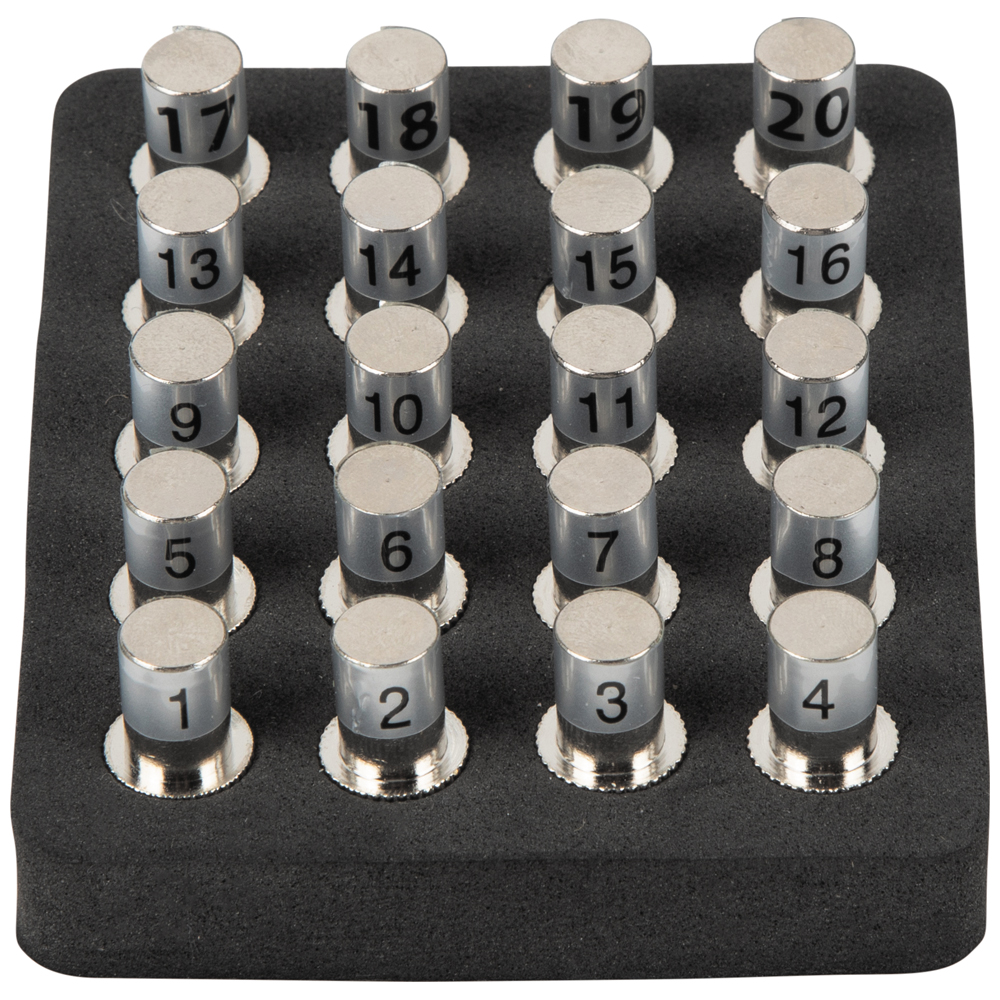

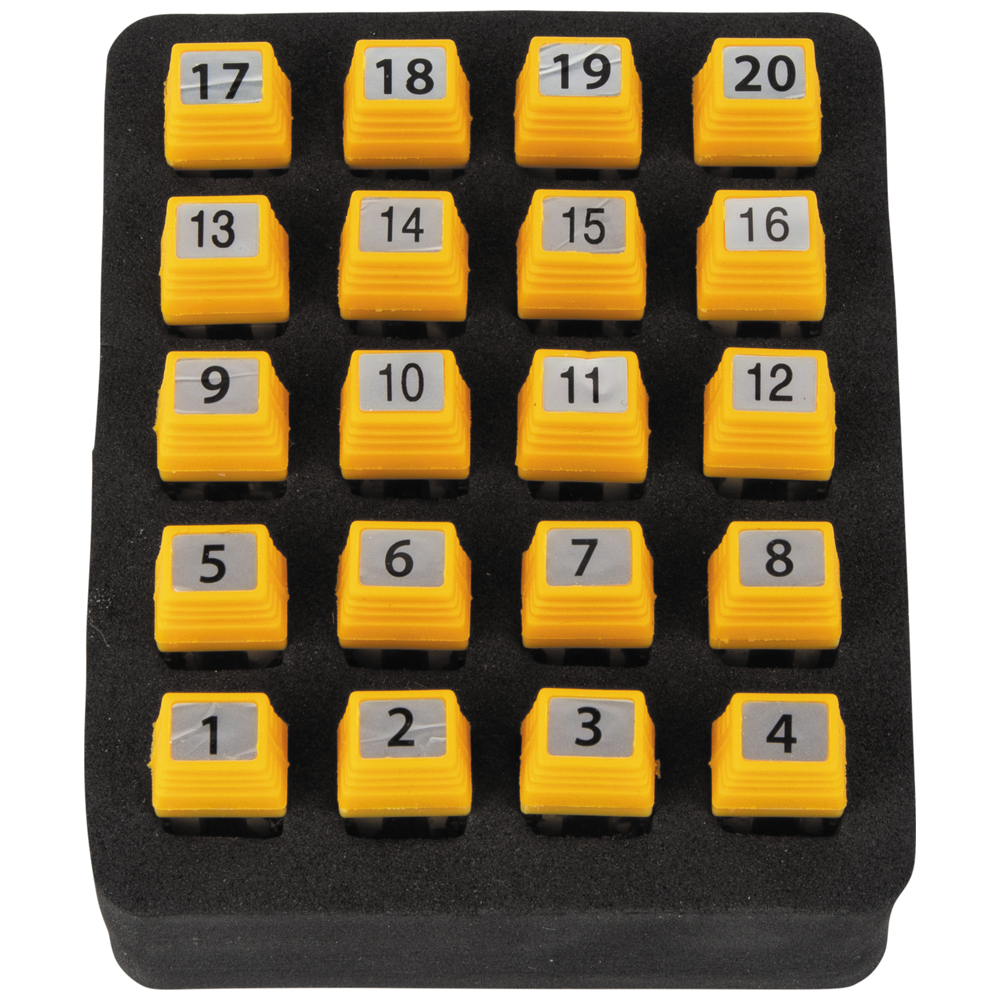

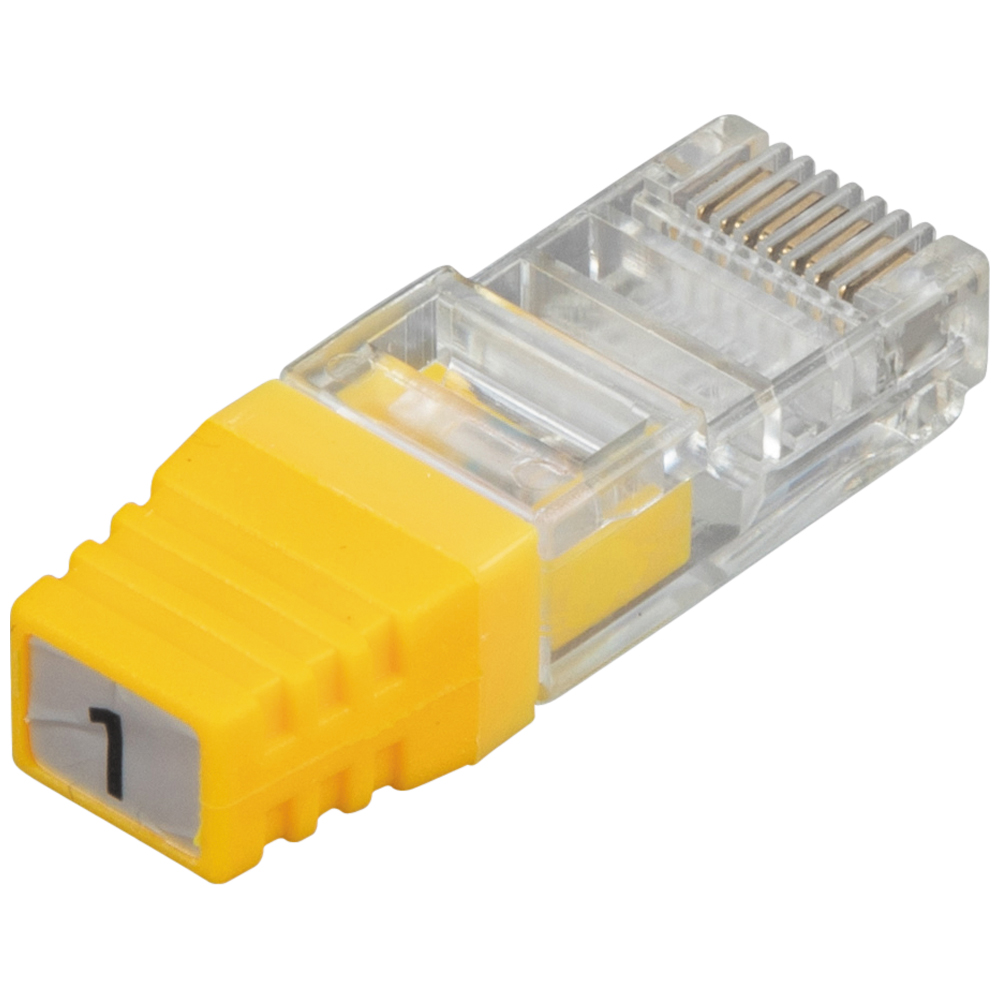

Tester, Self-Storing Remote, RJ45 CAT6 to RJ45 CAT6 Cable (T658B) (×2), RJ11 to RJ11 Cable (×2), RJ12 to RJ12 Cable (×2), Female Coax-F to Angled-Bed-of-Nails Cable, RJ45 LanMap™ Location ID Remotes (1-20), F-Connector CoaxMap™ Location ID Remotes (1-20), Female F-Barrel Connector, USB-C to USB-A Cable, Carrying Case
Weight:
15.8 oz (447 g)
UPC:
092644583957
Warnings
- The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
- Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.
- Plugging 6-position plugs into the 8-position jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.
- Always wear approved eye protection.
