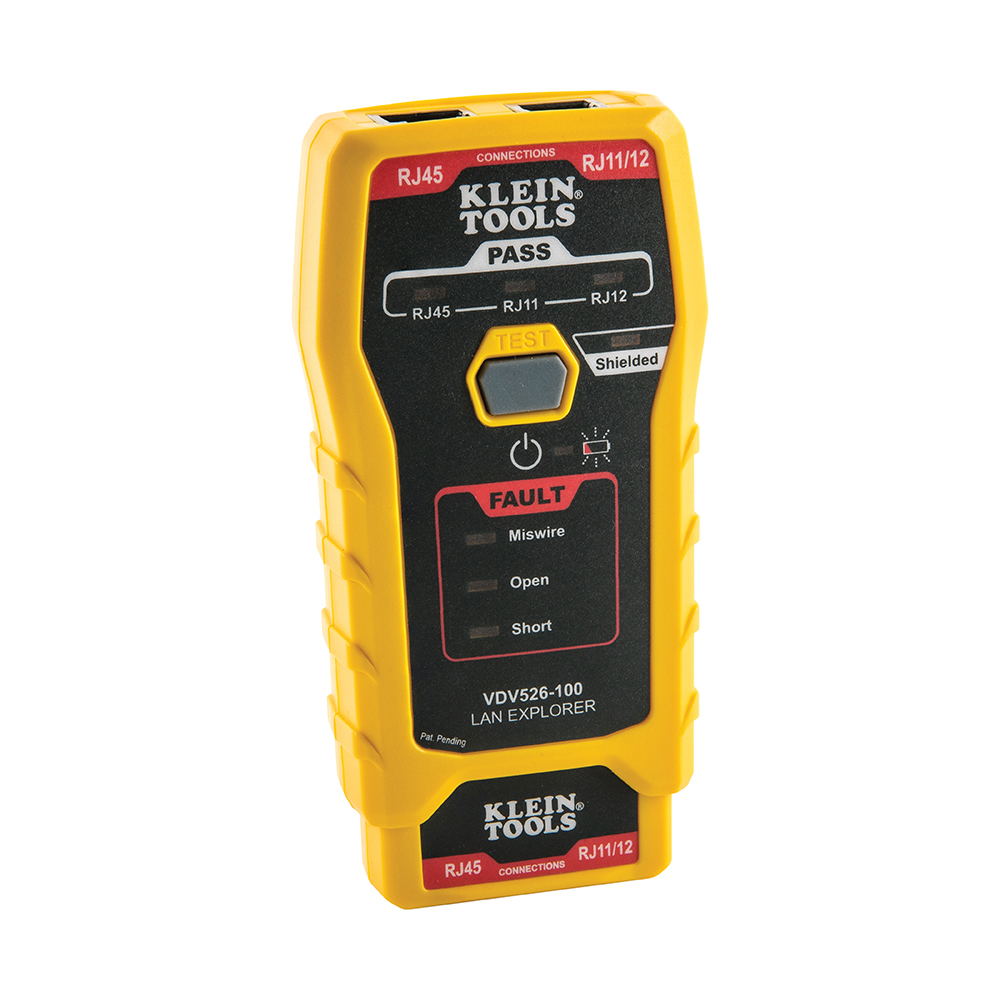

Network Cable Tester, LAN Explorer® Data Cable Tester with Remote
VDV526-100

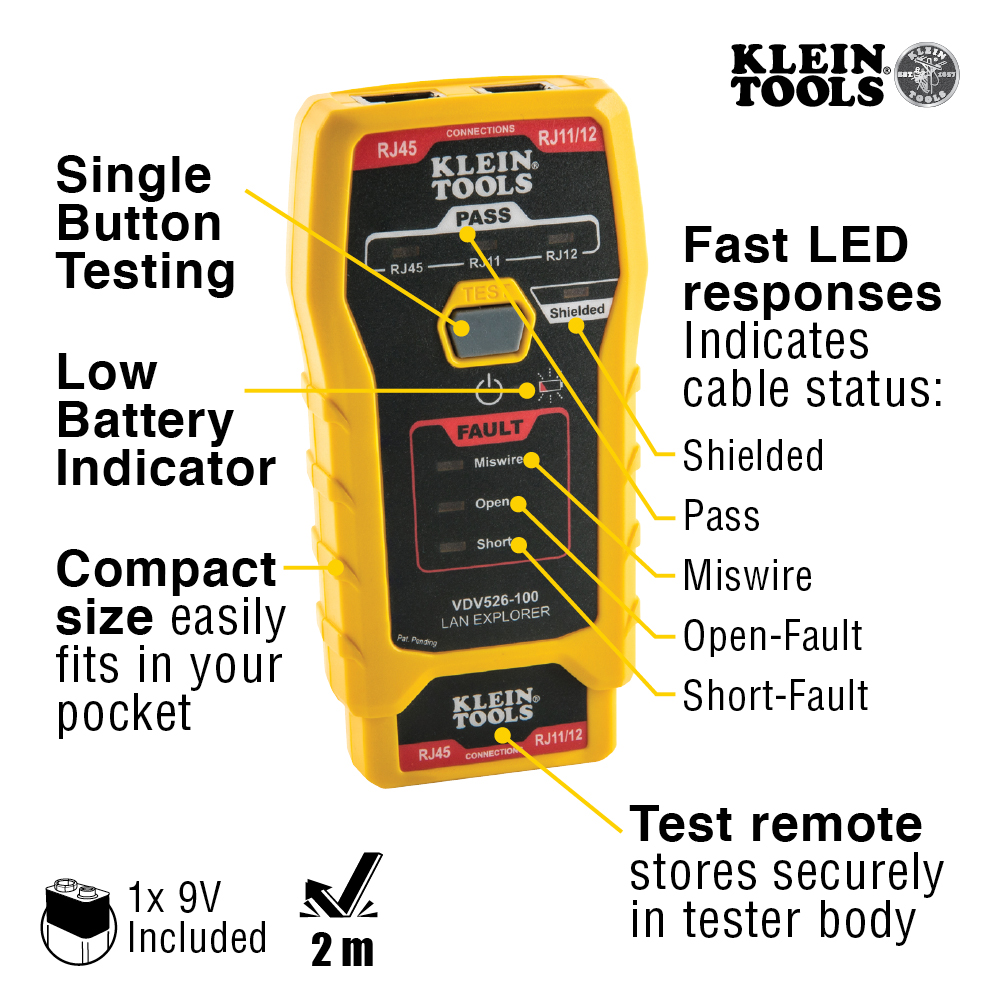

- Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
- Tests CAT3, CAT5e and CAT6/6A cables

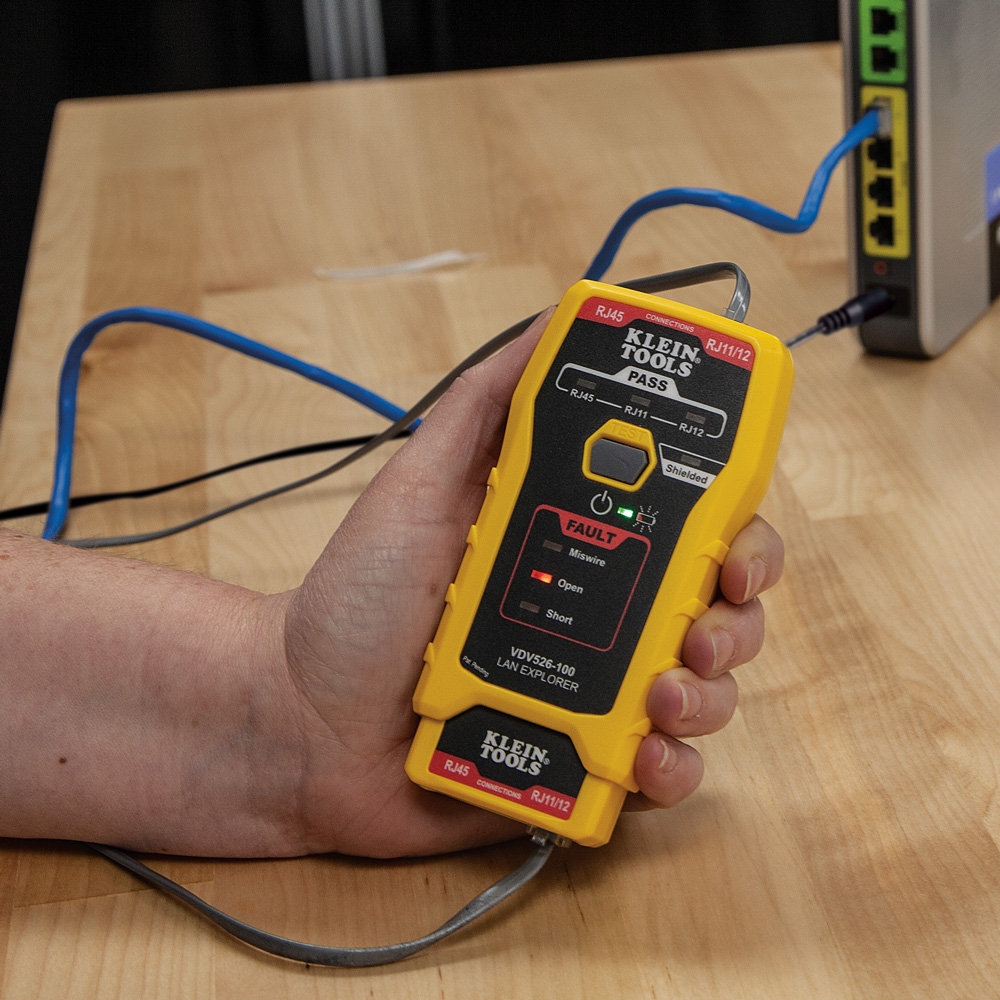

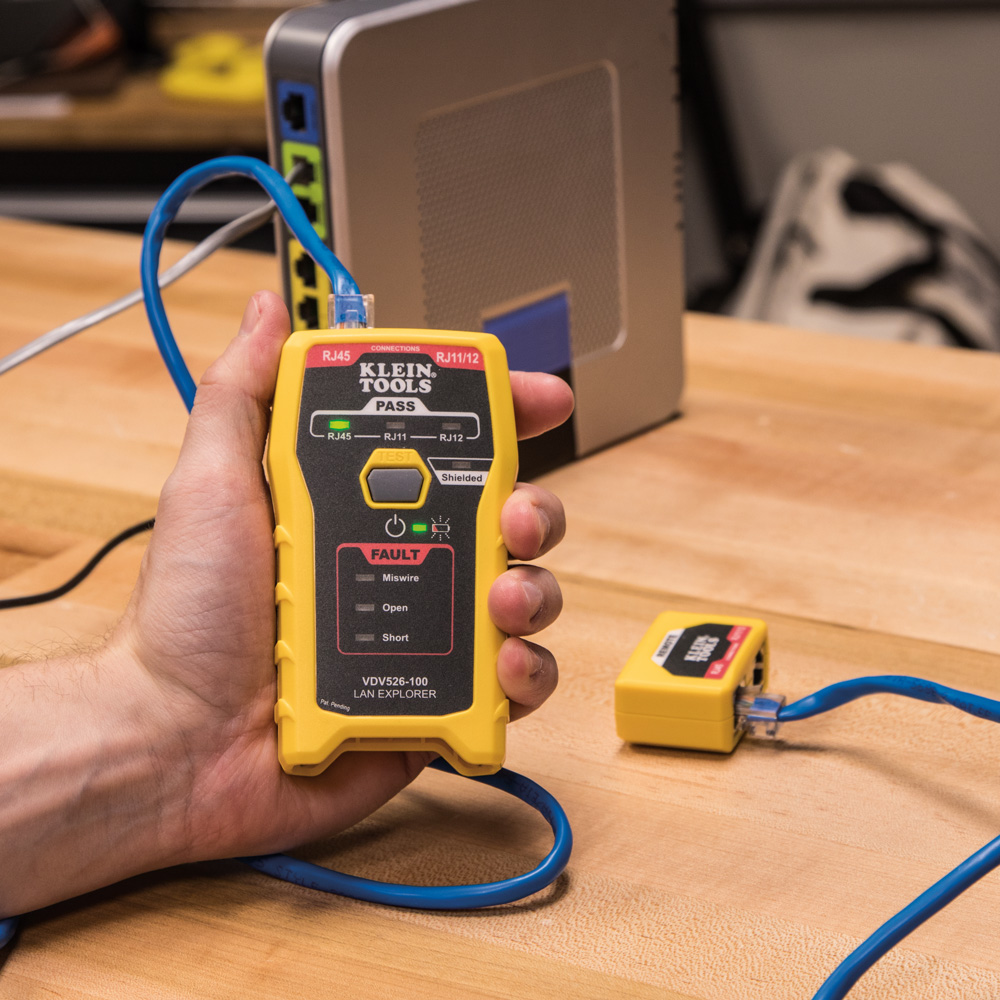

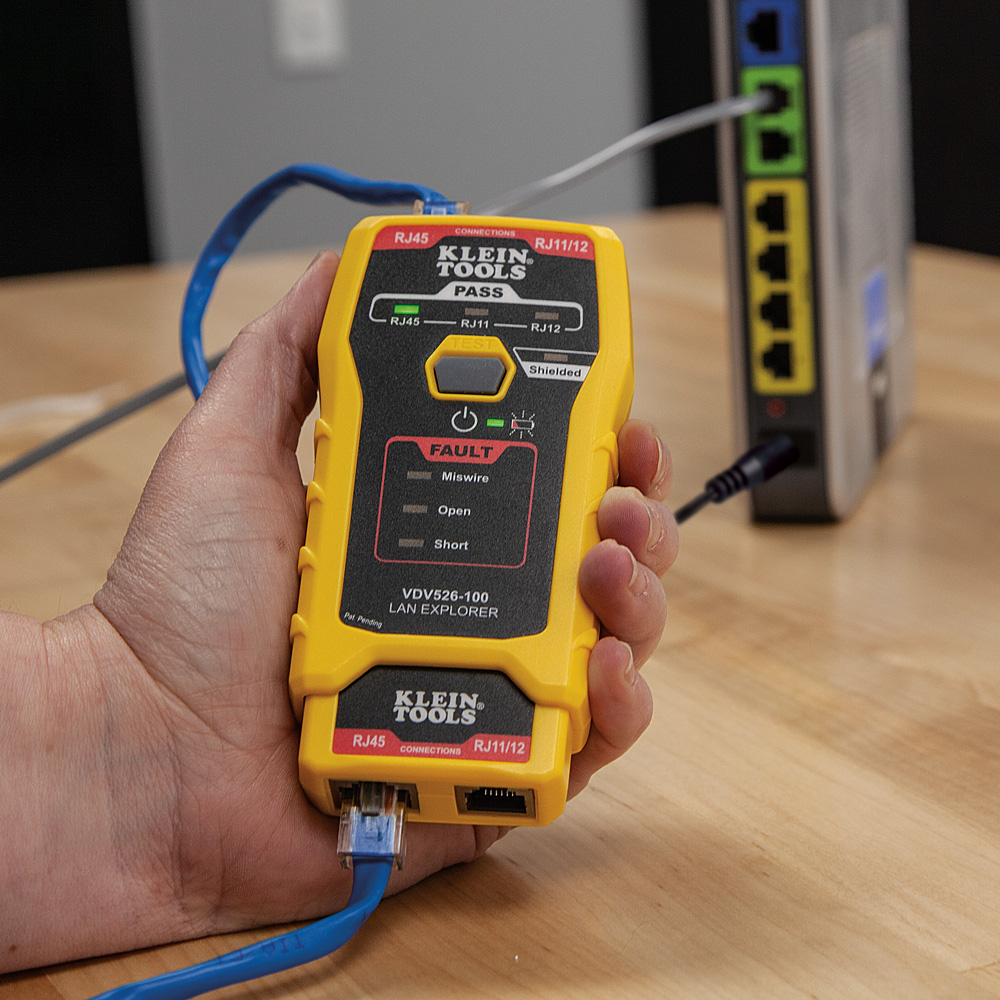

- Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

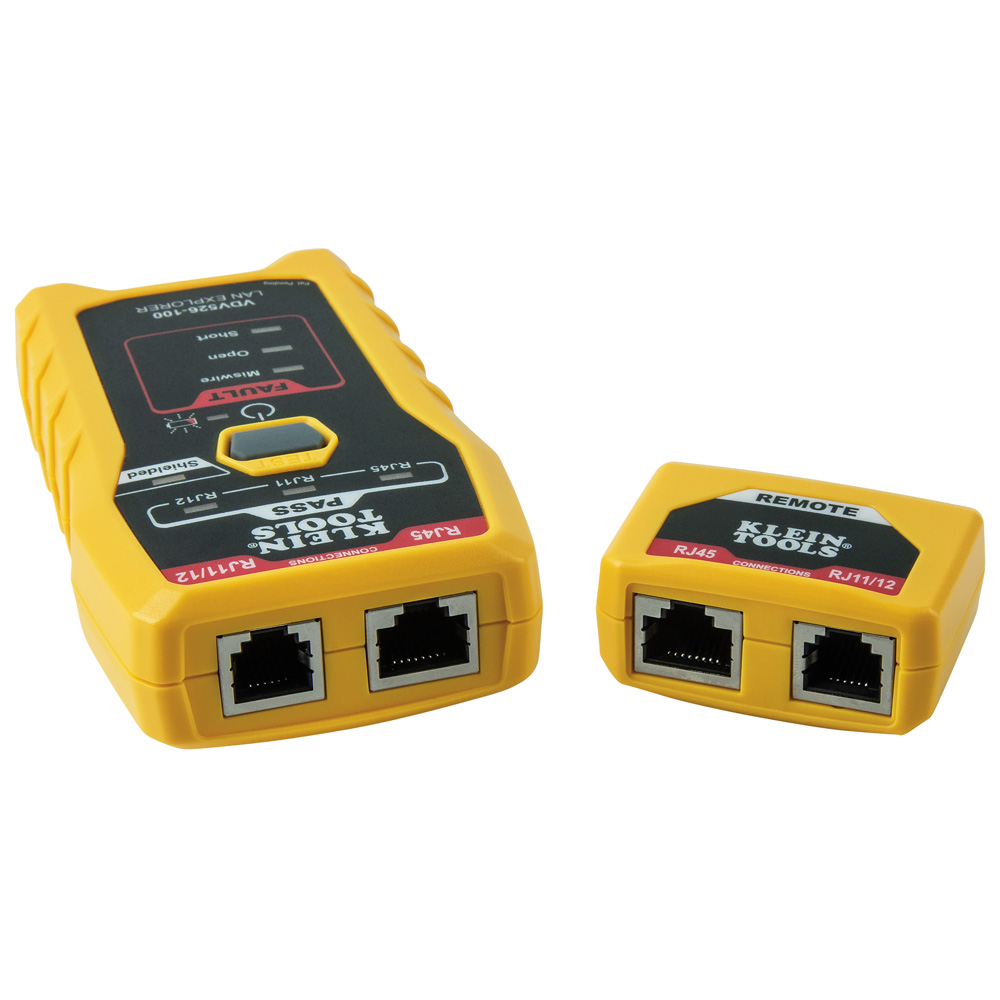

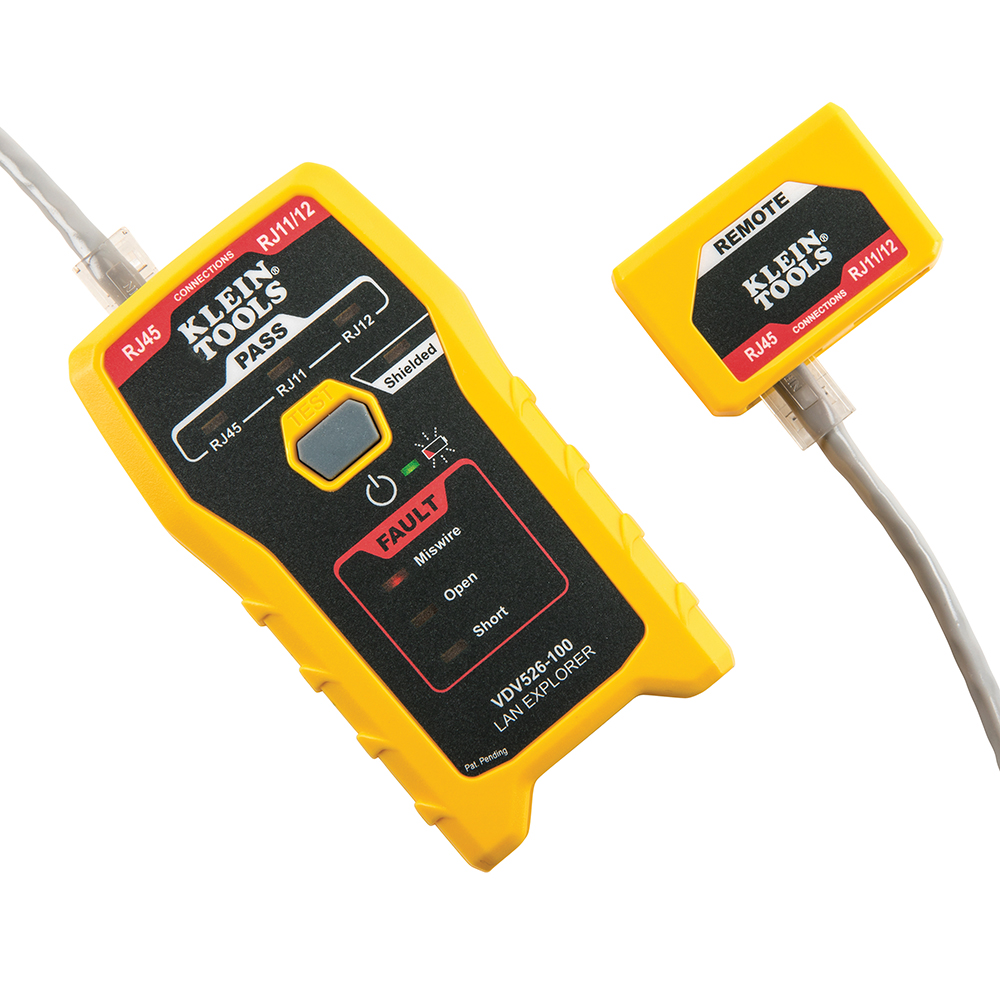

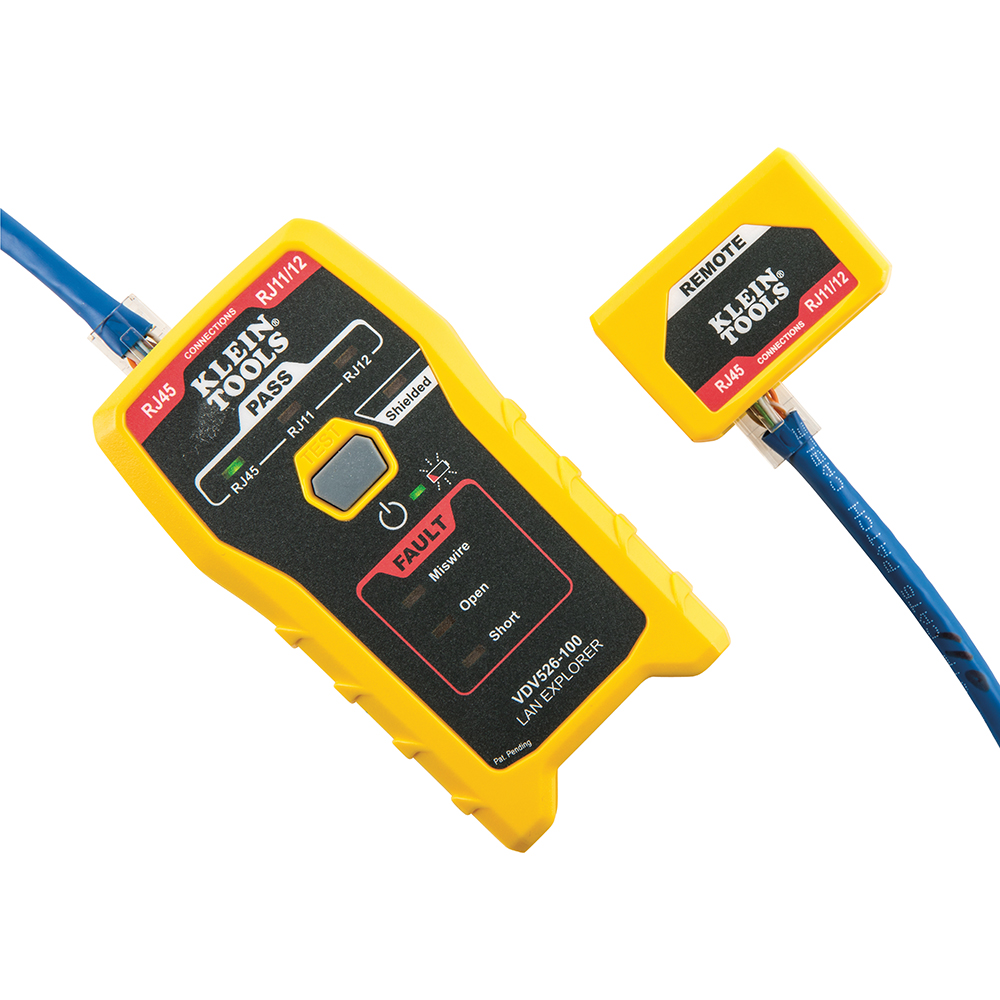

- Test remote stores securely in tester body
- Compact tester easily fits in your pocket
- Auto Power-off feature to conserve battery life (9V included)
- Low battery indicator
- Replacement remote (VDV999-150) available (sold separately)
This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).
Specifications
Type:
Twisted Pair, DATA, Voice, LAN
Application:
Cable Testing to 1000' (305 m)
Special Features:
LED response
Cable Type:
CAT3, CAT5e, CAT6/6A
Overall Length:
5'' (12.7 cm)
Overall Height:
1.25'' (3.2 cm)
Overall Width:
2.5'' (6.4 cm)
Material:
Plastic and Stamped Metal
Test-n-Map ID Remotes:
1
Batteries:
1 x 9V
Battery Life:
Active: 80 hr; Standby: 3.5 yr.
Drop Protection:
2' (0.6 m)
Supported Remotes:
VDV999150
Connection & Adapter Types:

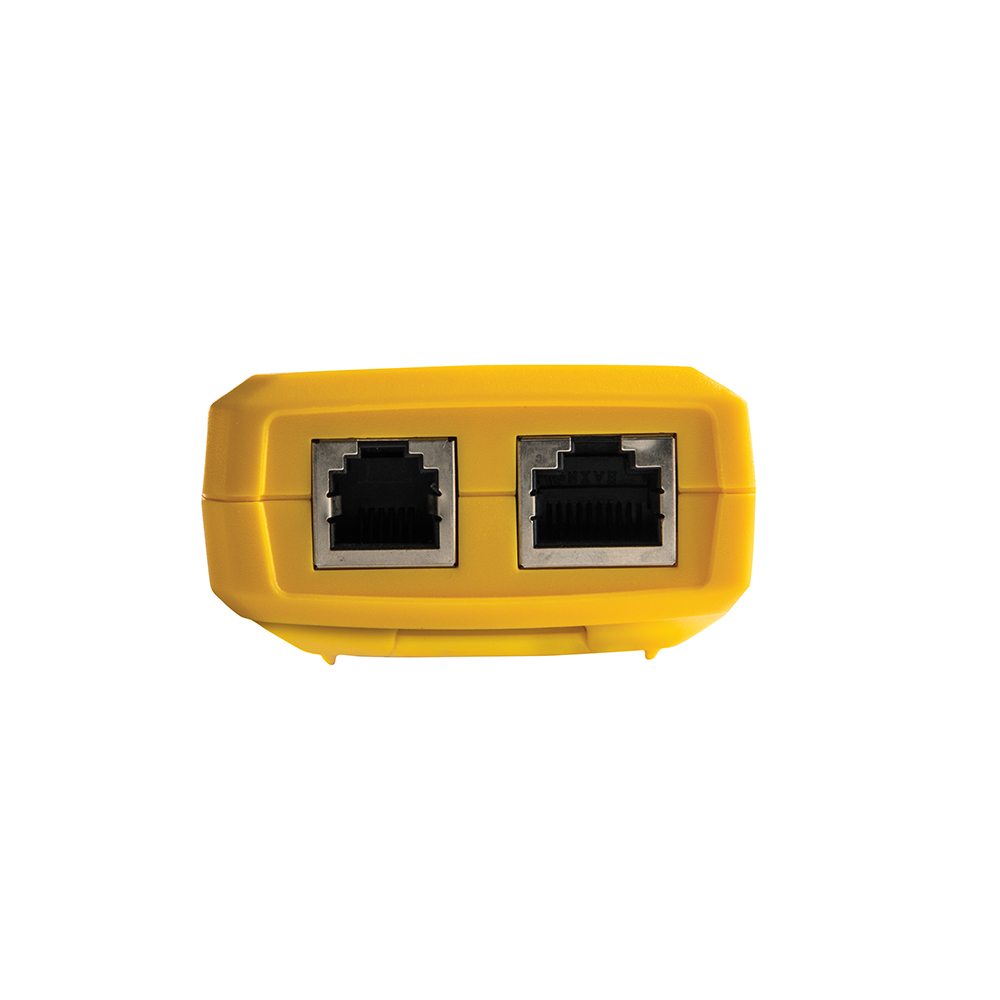

RJ11, RJ12, RJ45
Display:
LED
Multiple Style Tone Generator:
No
Faults Detected:
Pass, Miswire, Open-Fault, Short-Fault, and Shield
Test & Measure Types:
Voice, Data, RJ45, RJ11
Included:
Tester, Remote, 9V Battery
Weight:
4 oz (116 g)
UPC:
092644692246
