Chicago® Grip Type B Strand Puller
1659-5AT
- Similar to Bell-System type ''B'' strand puller
- Designed to pull 1/4-Inch (6.35 mm) figure-8 telephone cable
- 0.20-Inch to 0.37-Inch (5.08 to 9.40 mm) cable diameter range with max safe load of 5000-Pound (2268 kg)
- Serpentine grooves grip insulation on strand, preventing slippage
- Made in USA

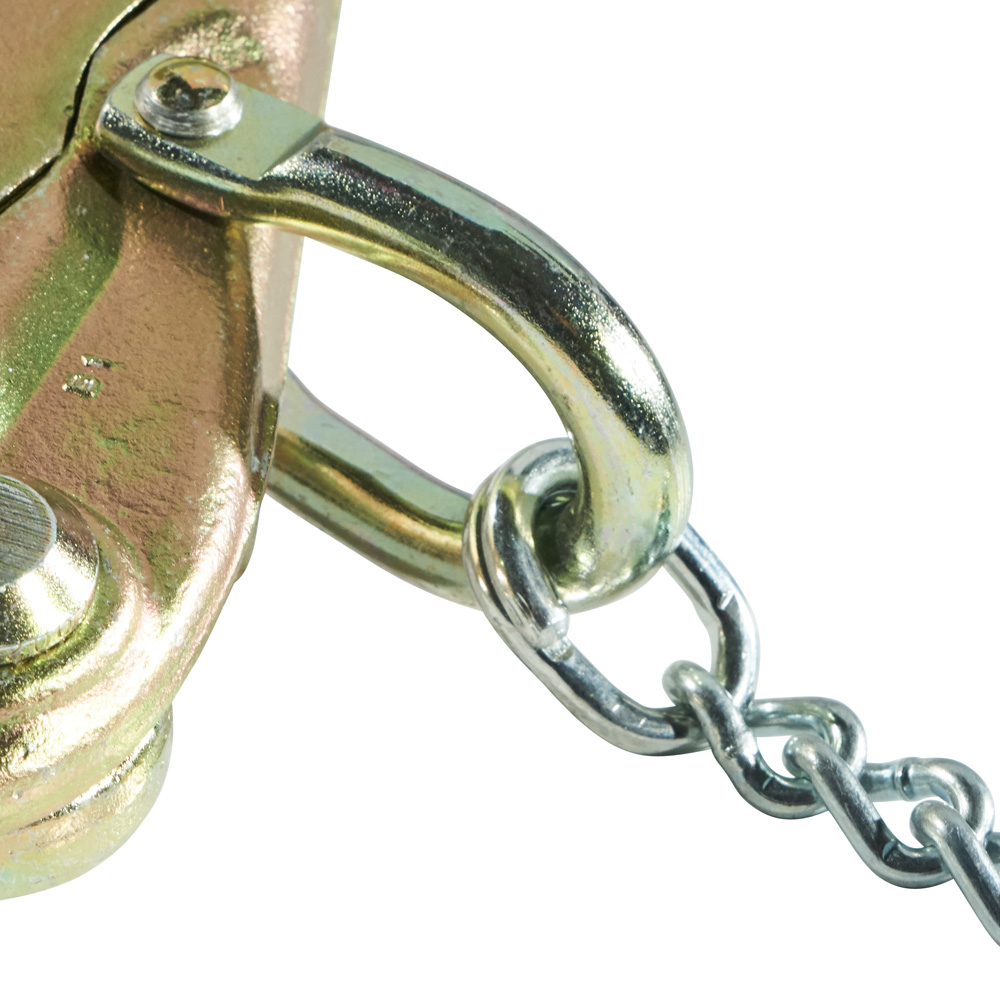

- Equipped with chain, toggle, and shackle
The Klein Tools 1659-5AT Chicago Grip is similar to a Bell-System type B Strand Puller. It is designed to pull 1/4-Inch figure-8 telephone cable. Plus, it is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Specifications
Type:
Chicago Grip
Application:
1/4'' Figure-8 Telephone Cable
Special Features:
''B'' Strand Puller -- Equipped With a Chain, Toggle and Shackle
Cable Type:
Steel Strand
Cable Diameter:
0.2'' to 0.37'' (5.08 to 9.4 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Round - Serpentine
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
6.7 lb (3.03 kg)
UPC:
092644471209
Additional Information
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
