Premium Electrician's Quick Release Step Bit Set, 3 Piece

QRSTSPRO

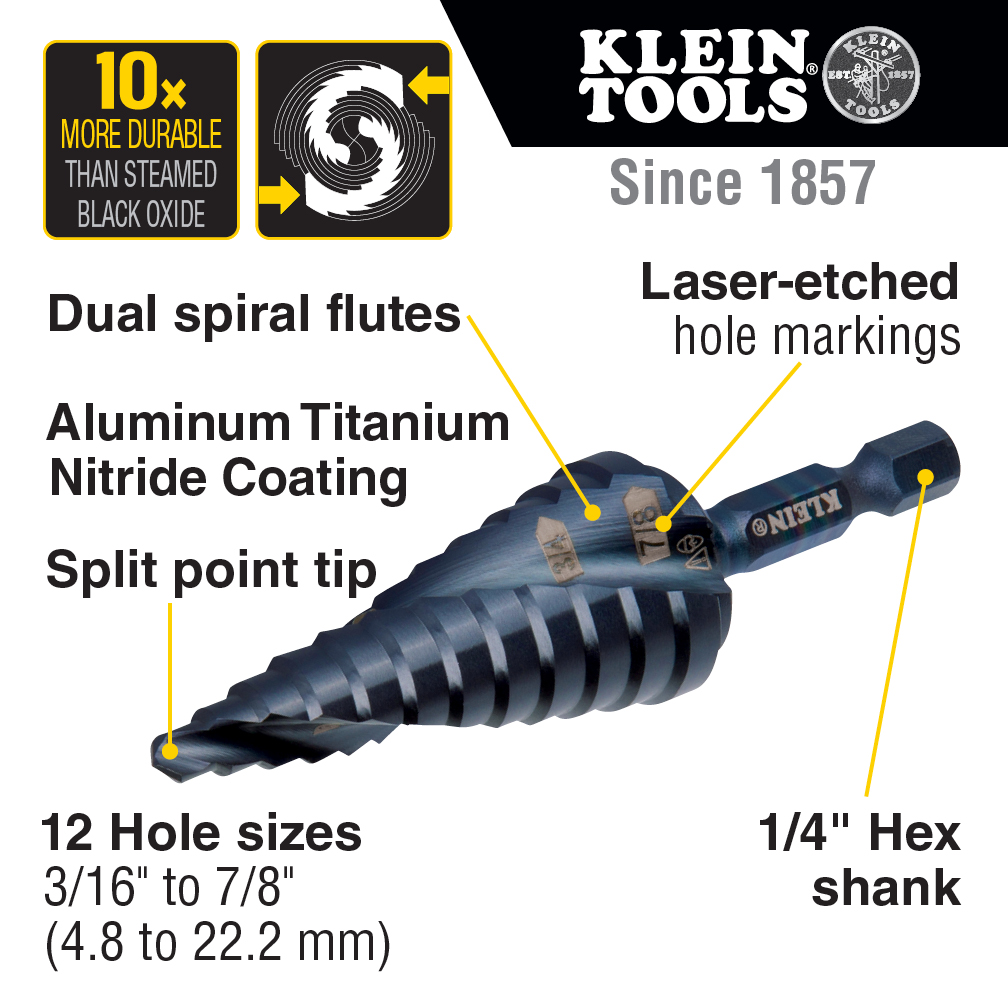

  • Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

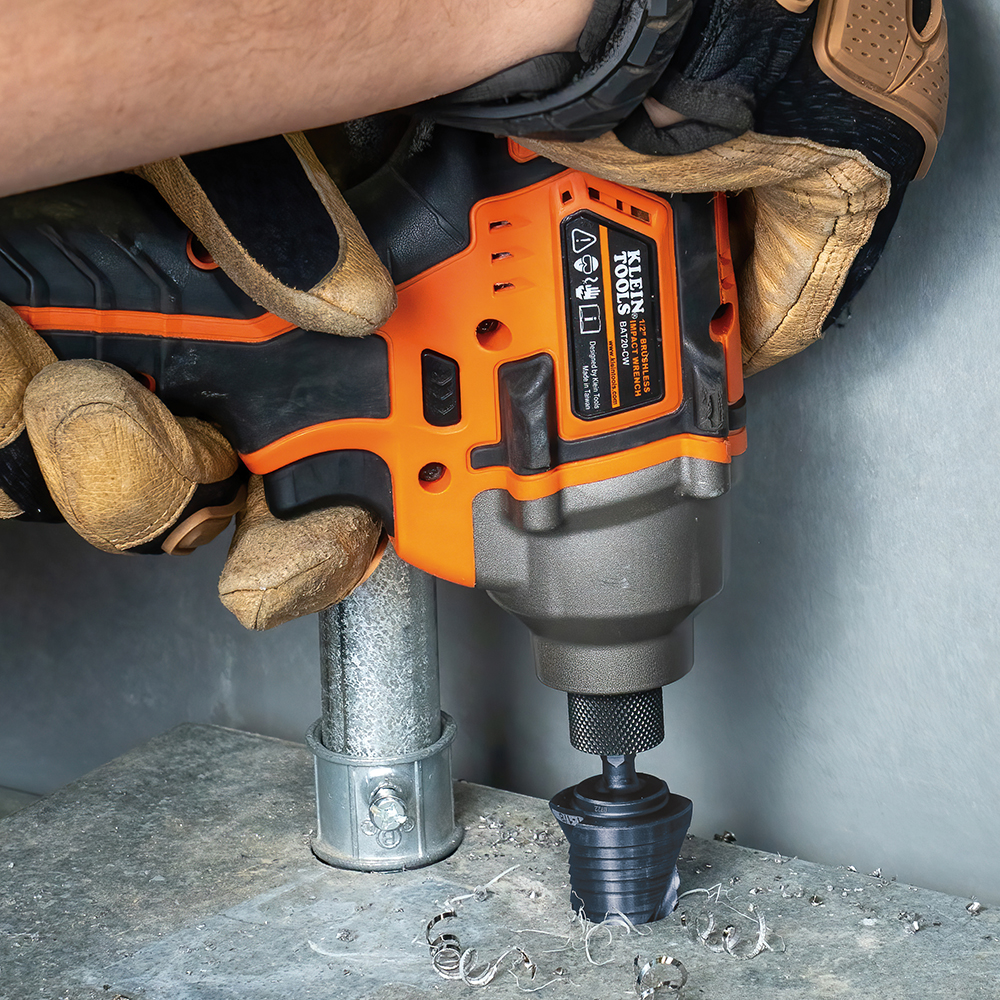

  • Impact rated shaft allows for use with impact drivers and standard drills

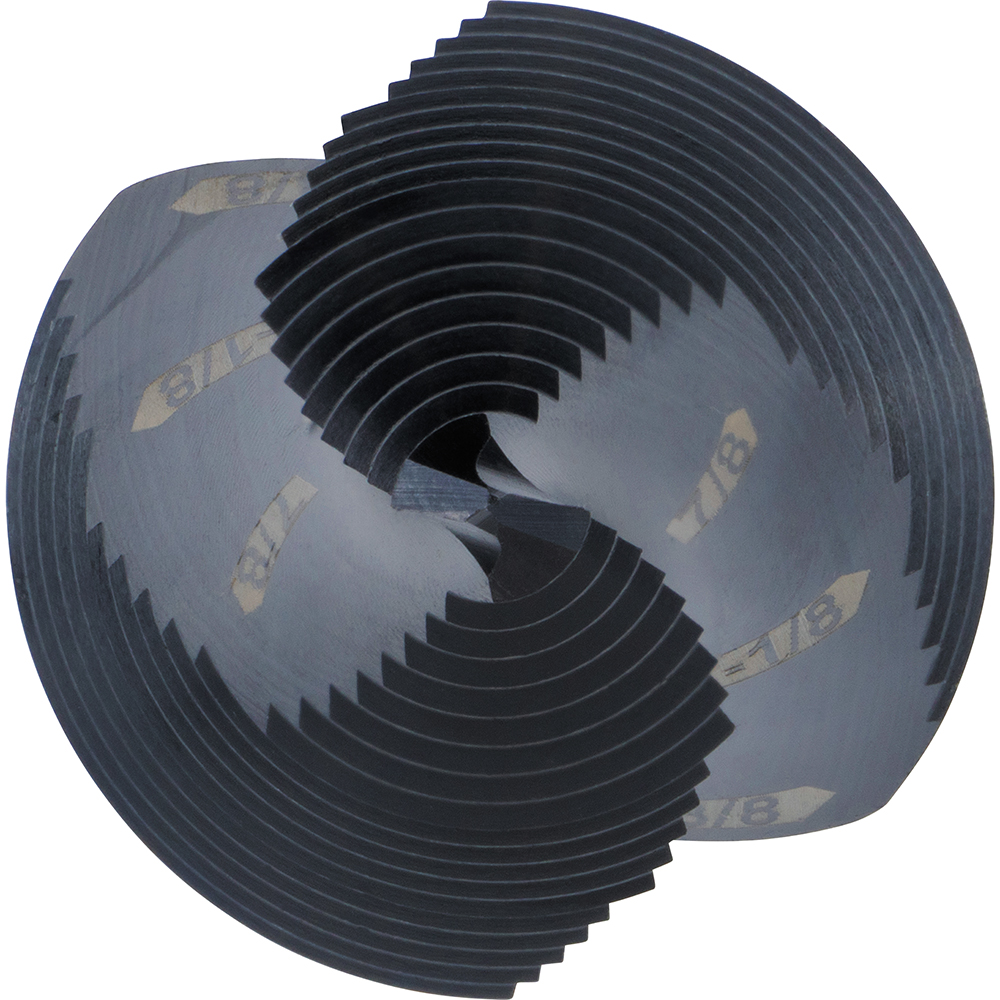

  • Double spiral flute removes chips for faster cuts and drilling

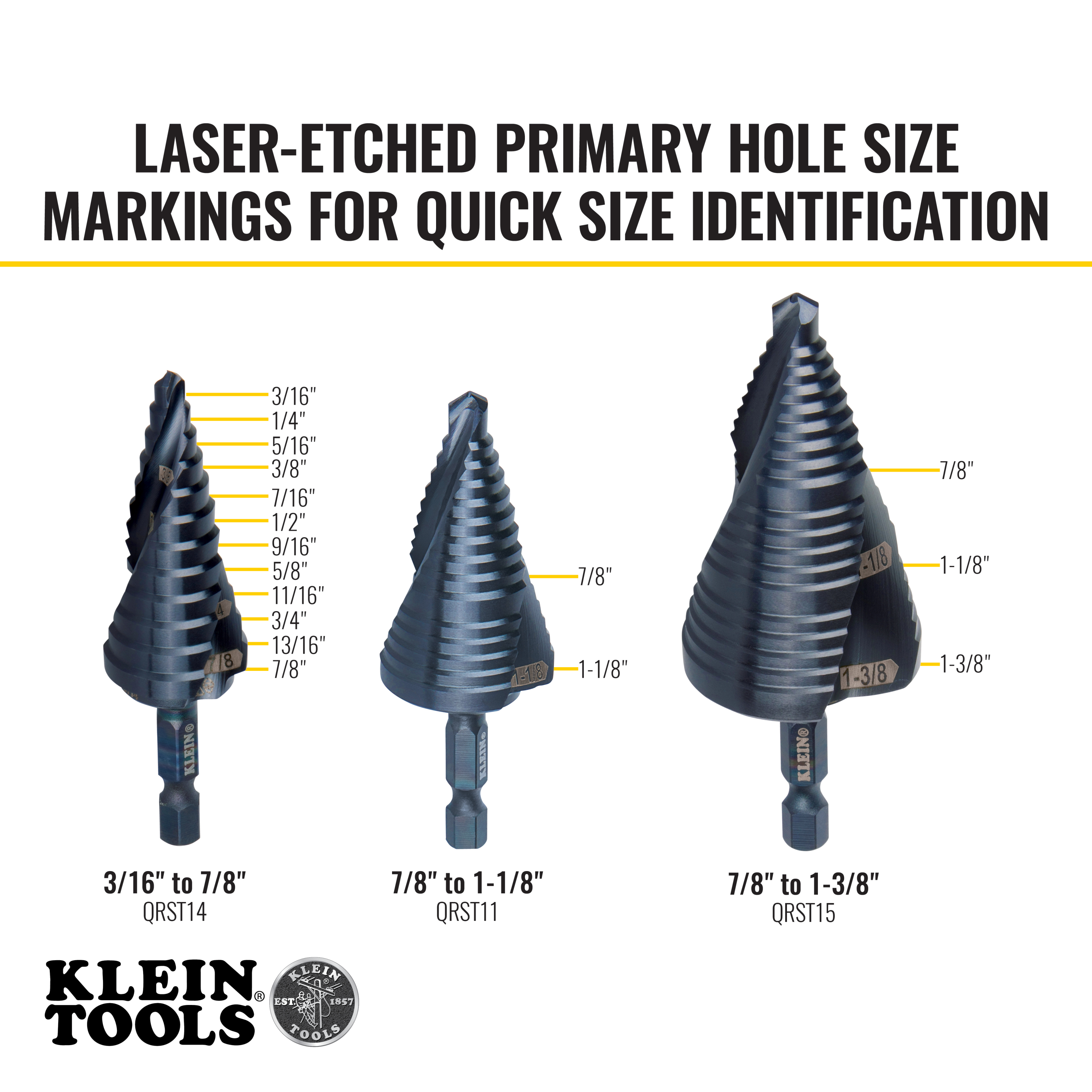

  • Laser markings are easy to read for quick size identification
  • Fast-starting, non-walking drill tip

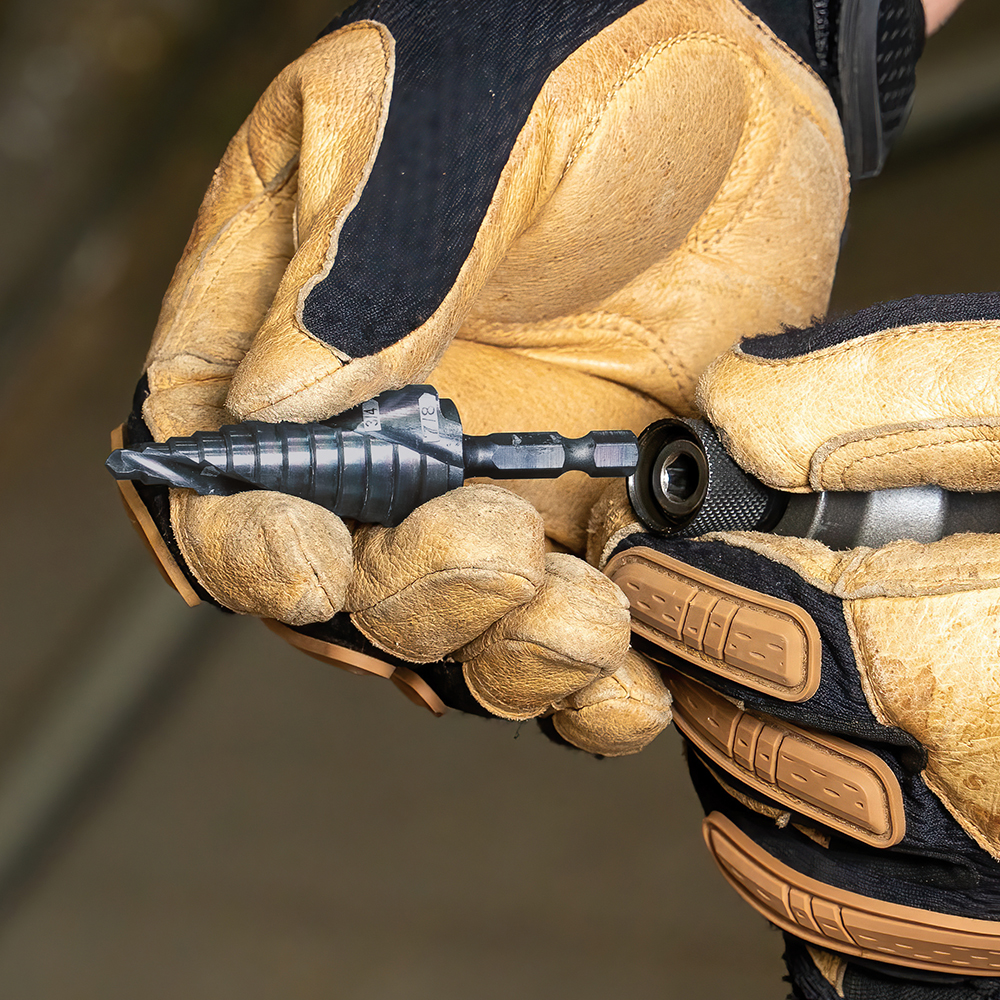

  • Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill
  • For use on steel (up to 16 gauge), wood, plastic, and aluminum

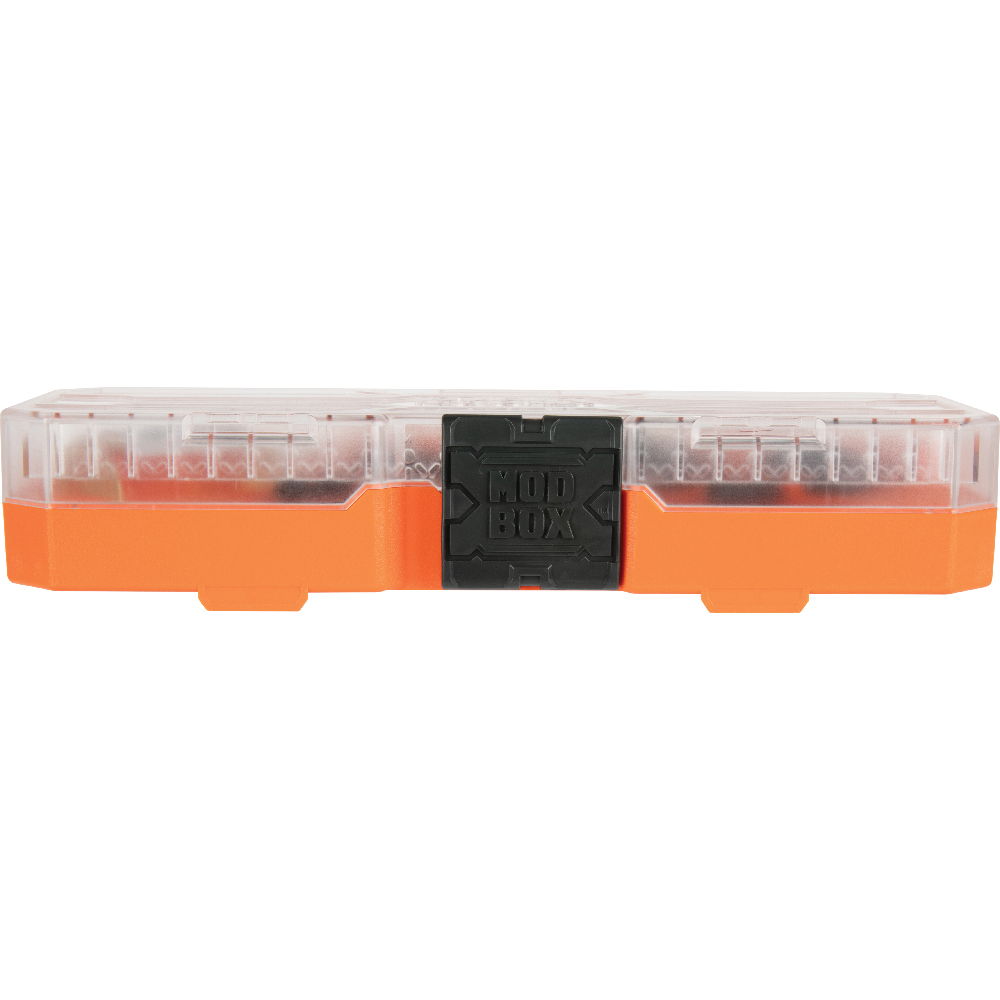

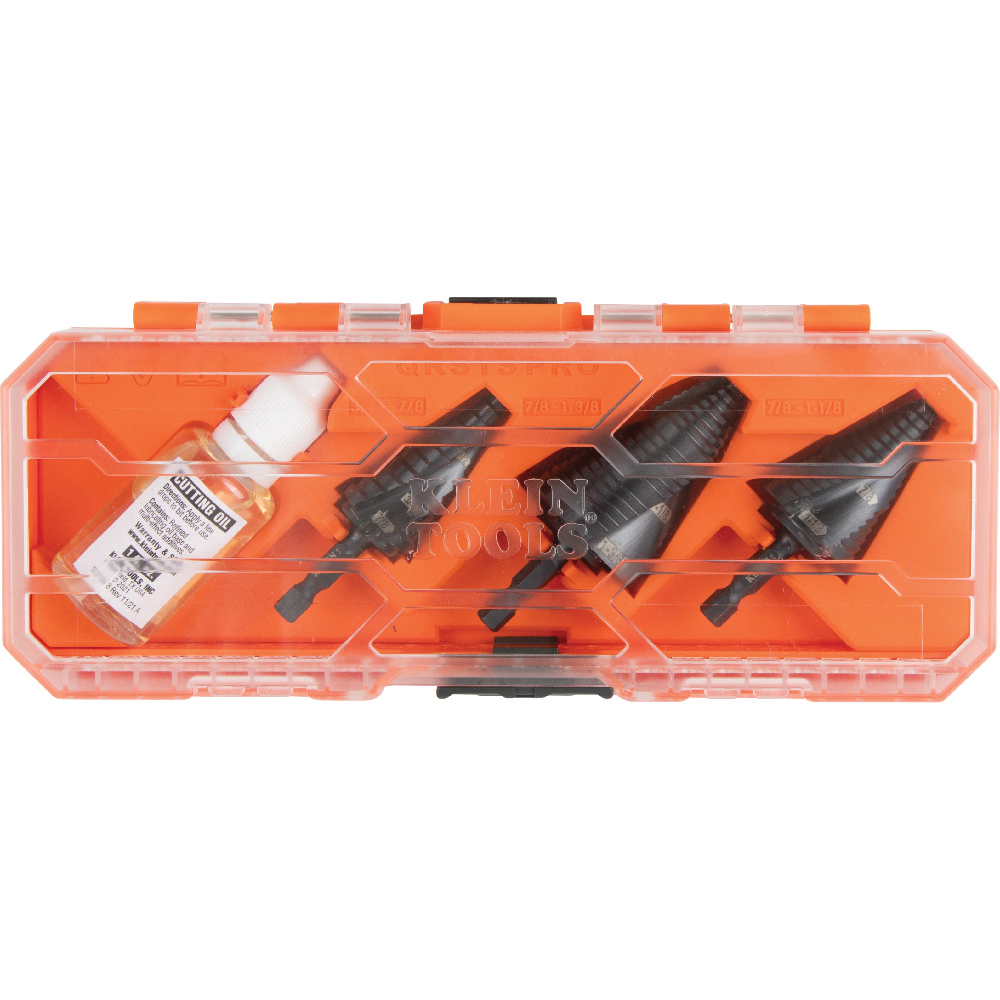

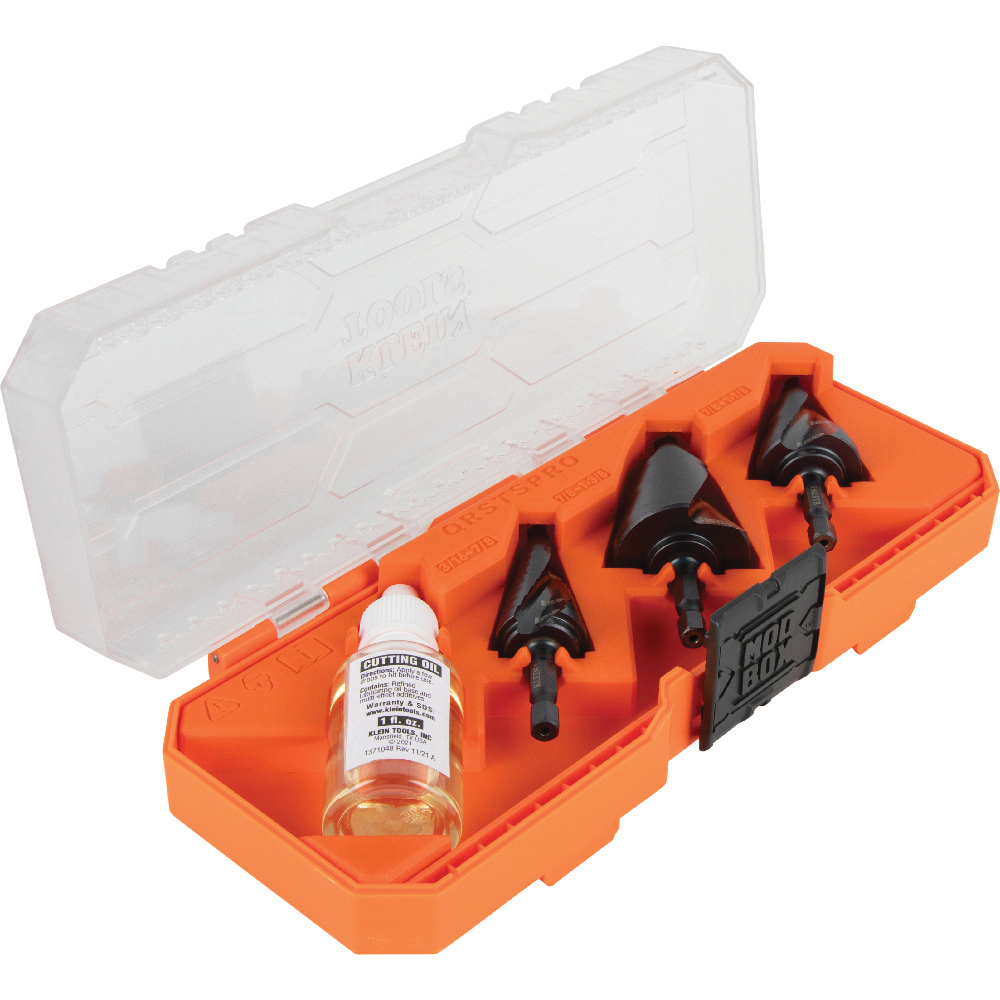

  • The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment
MODbox Builderverse
Videos

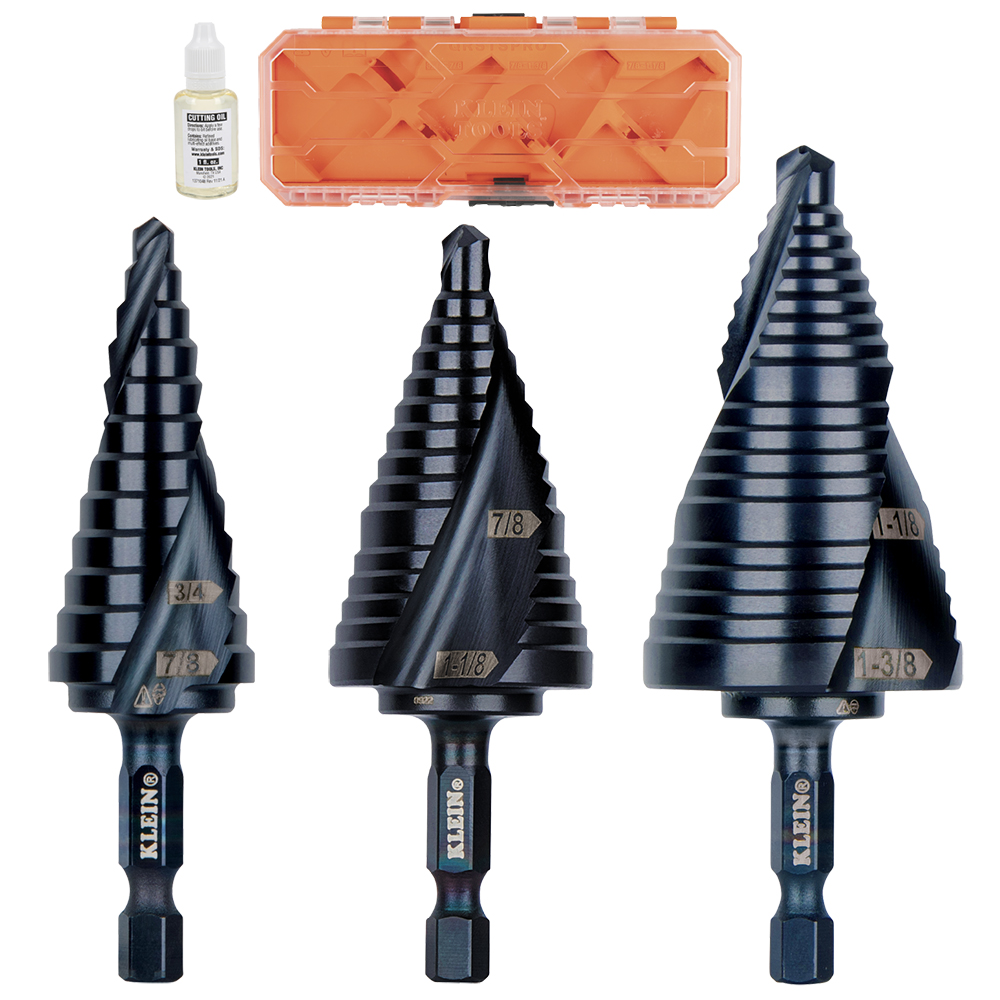

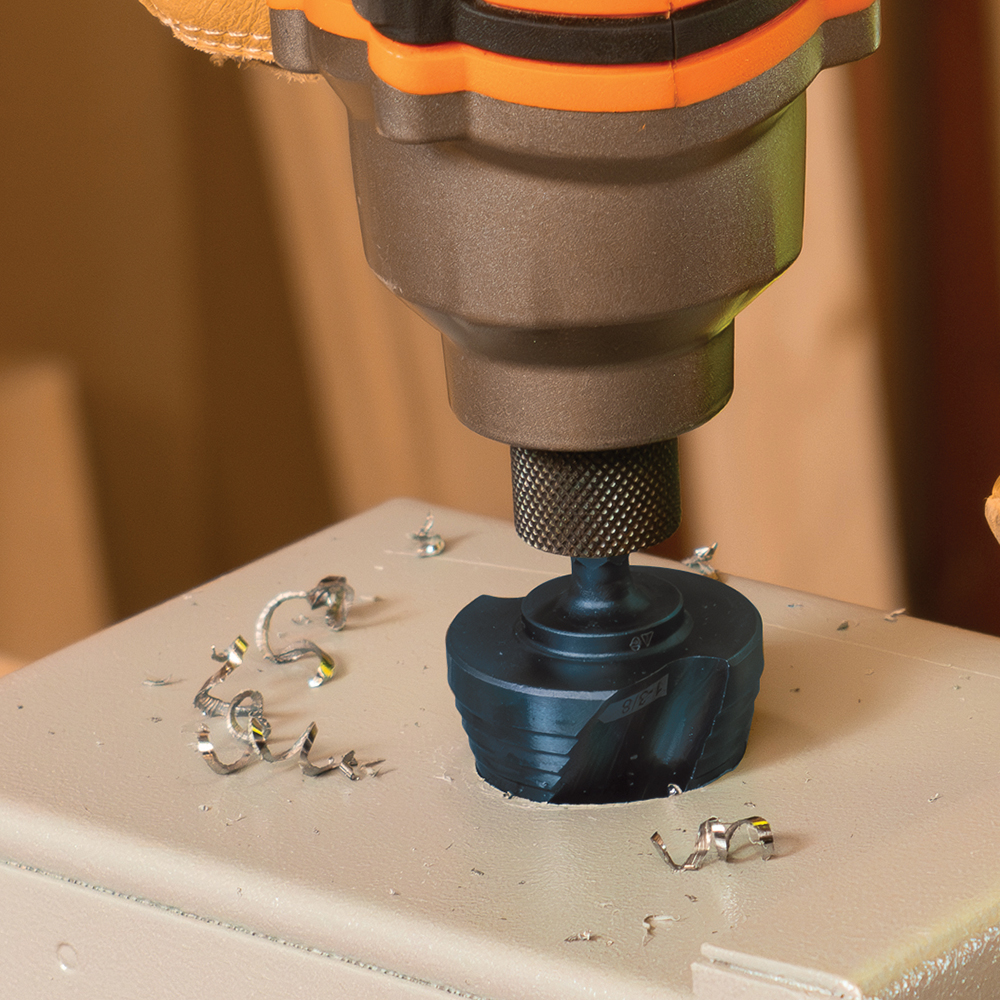

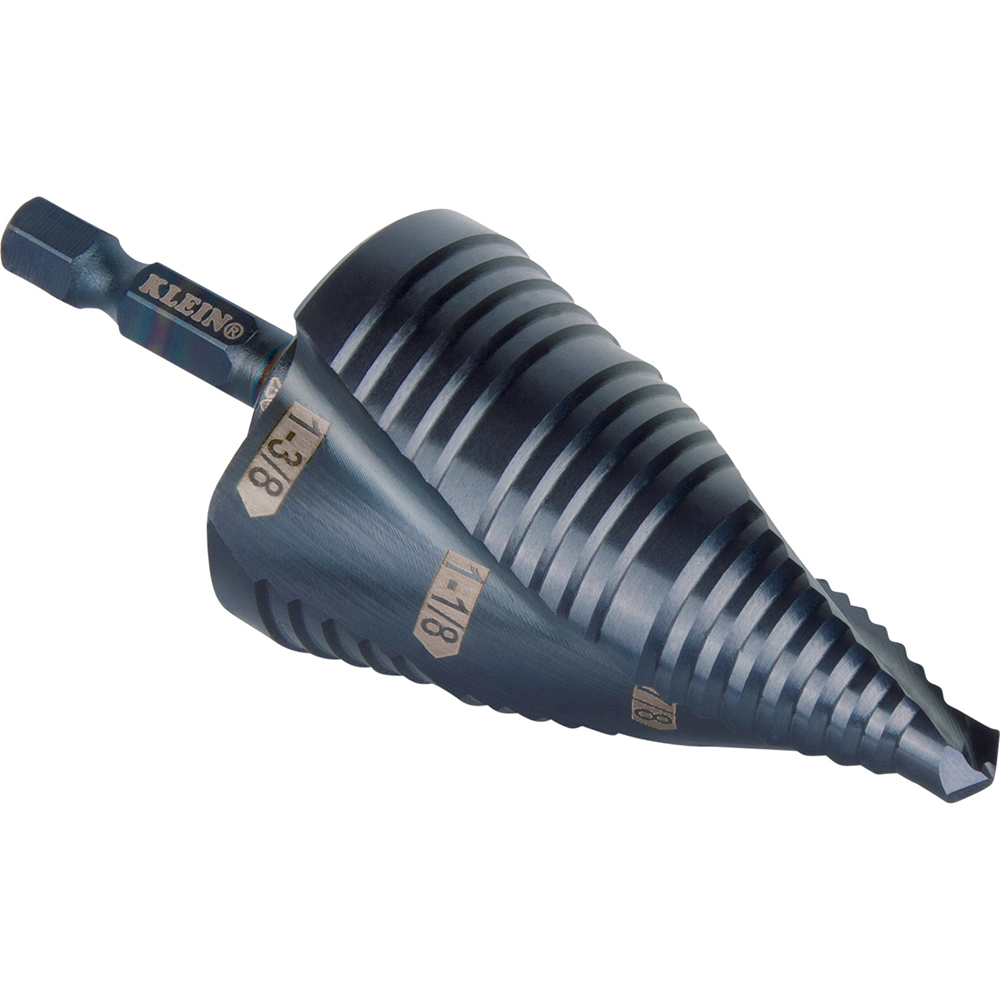

The Premium Electrician's Quick Release Step Bit Kit contains 3 step bits sized 7/8-Inch, 1-1/8-Inch, and 1-3/8-Inch for creating hole cutouts in panels and j-boxes to accommodate most commonly used 1/2-Inch, 3/4-Inch, and 1-Inch conduit. Dual Spiral Flutes help pull the step bit through the material for faster cutting. The aluminum titanium nitride coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment.

Specifications
Type:
Step Drill Bit
Application:
Multi-Material Drilling
Special Features:
Aluminum Titanium Nitride Coating; Dual Spiral Fluting; Cutting Oil Included; Modular Case
Shank Type:
1/4'' Hex
Flute Type:
Spiral
Overall Length:
0.88'' to 1.8'' (2.2 to 4.6 cm)
Overall Height:
3.2'' to 3.6'' (8.1 to 9.4 cm)
Overall Width:
0.88'' to 1.8'' (2.2 to 4.6 cm)
Material:
High Speed Steel
Coating:
Aluminum Titanium Nitride (AlTiN)
Quick Reference:
#14, #11, #15
Number of Holes:
12, 2, and 3
Increment:
Varies
Size:
3/16'' to 7/8'' (4.8 to 22.2 mm); 7/8'' to 1-1/8'' (22.2 to 28.6 mm); 7/8'' to 1-3/8'' (22.2 to 34.9 mm)
Weight:
1.28 lb (0.6 kg)
UPC:
092644530074
Additional Information
Warnings
  • Always ensure that you and persons in the vicinity wear approved eye protection.
  • Note: Read and follow safety instructions in power tool owner's manual.
