Premium All Purpose Quick Release Step Bit Kit, 3 Piece
QRST3PC

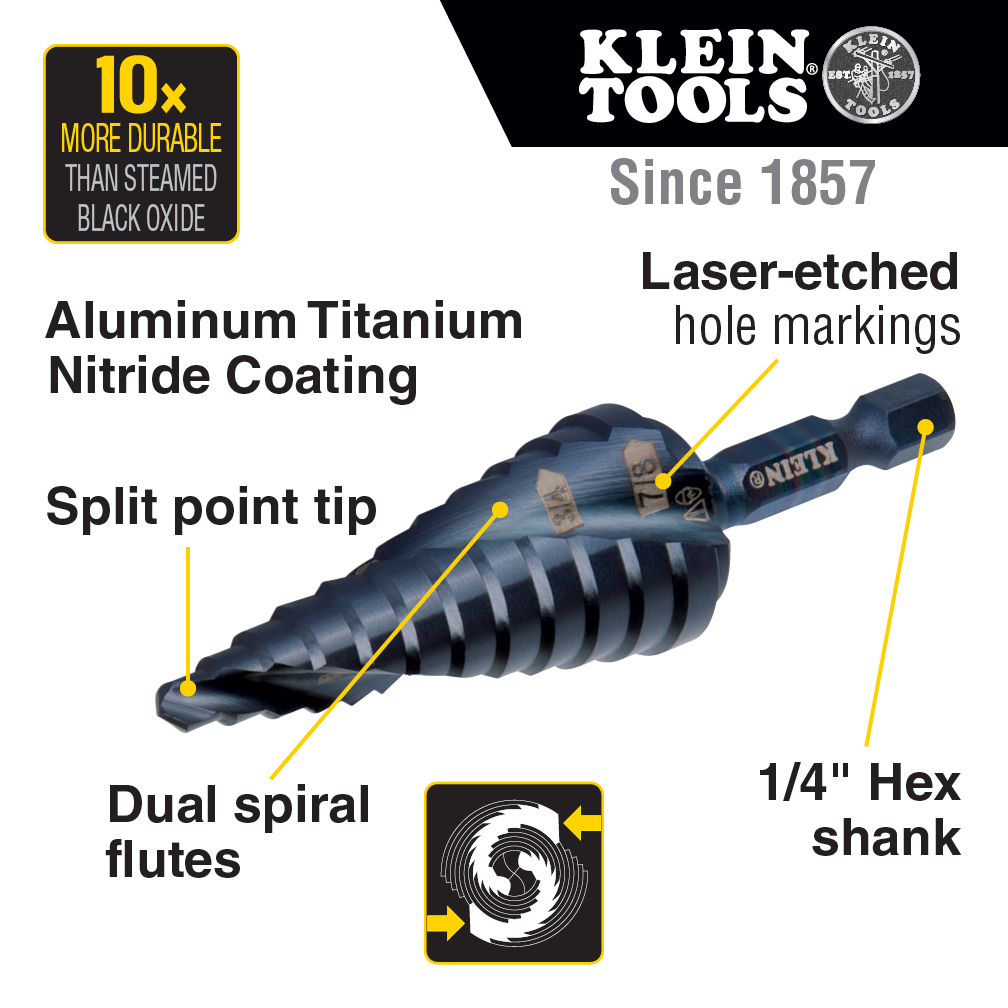

- Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life

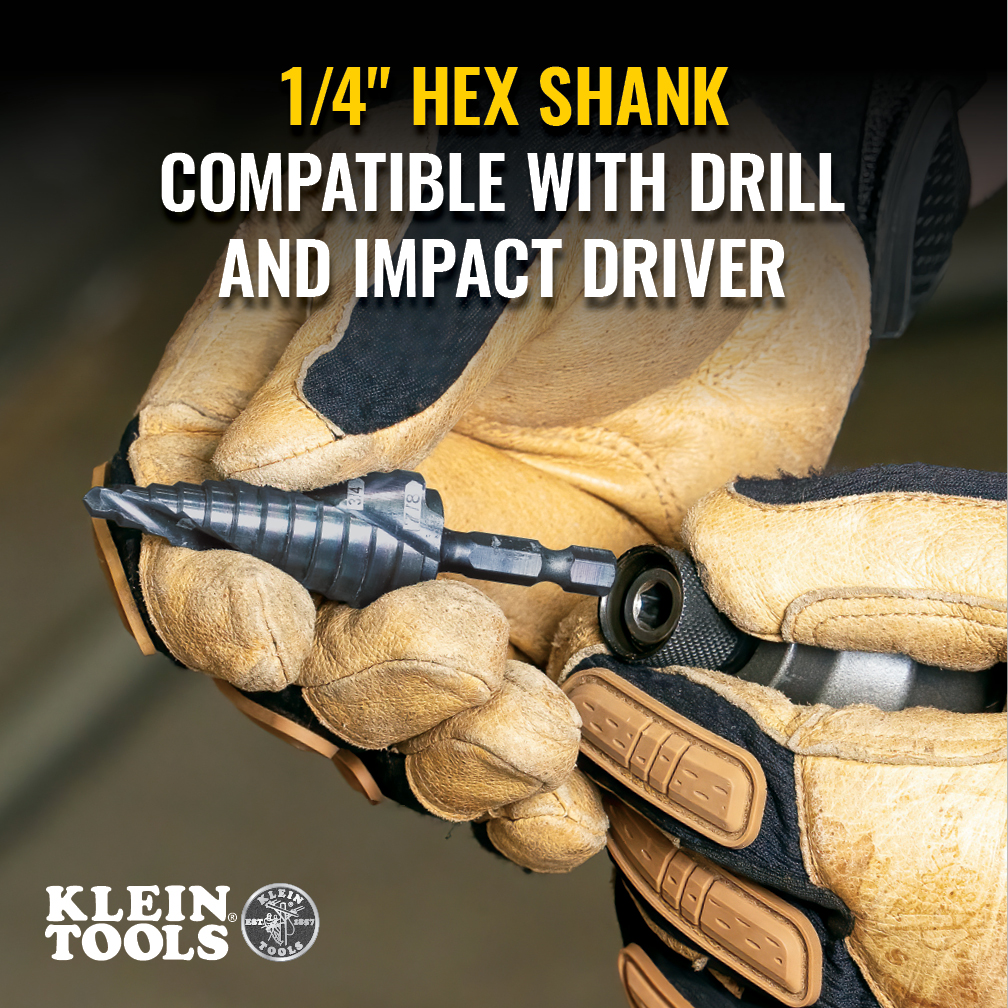

- Impact rated shaft allows for use with impact drivers and standard drills
- Double spiral flute removes chips for faster cuts and drilling

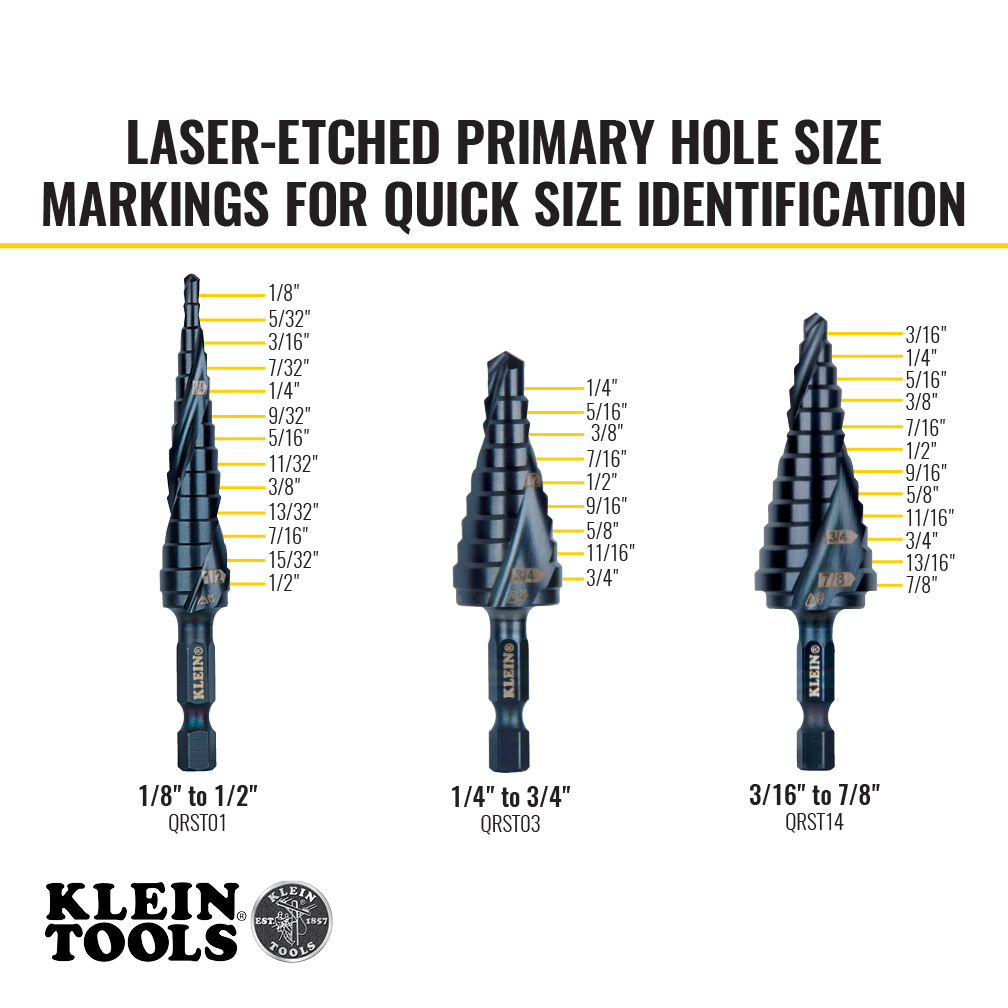

- Laser markings are easy to read for quick size identification
- Fast-starting, non-walking drill tip

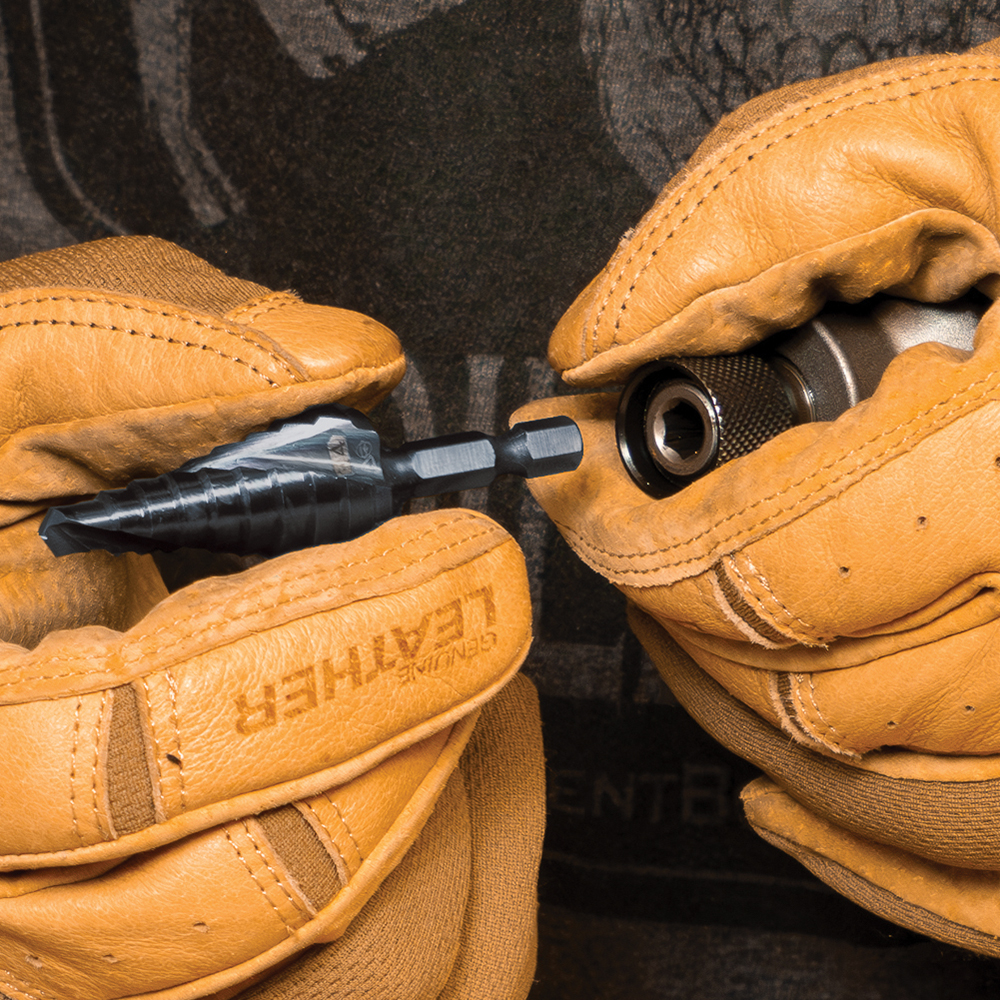

- Quick-release, 1/4-Inch hex shank provides a firm, positive grip and won't spin out in the drill

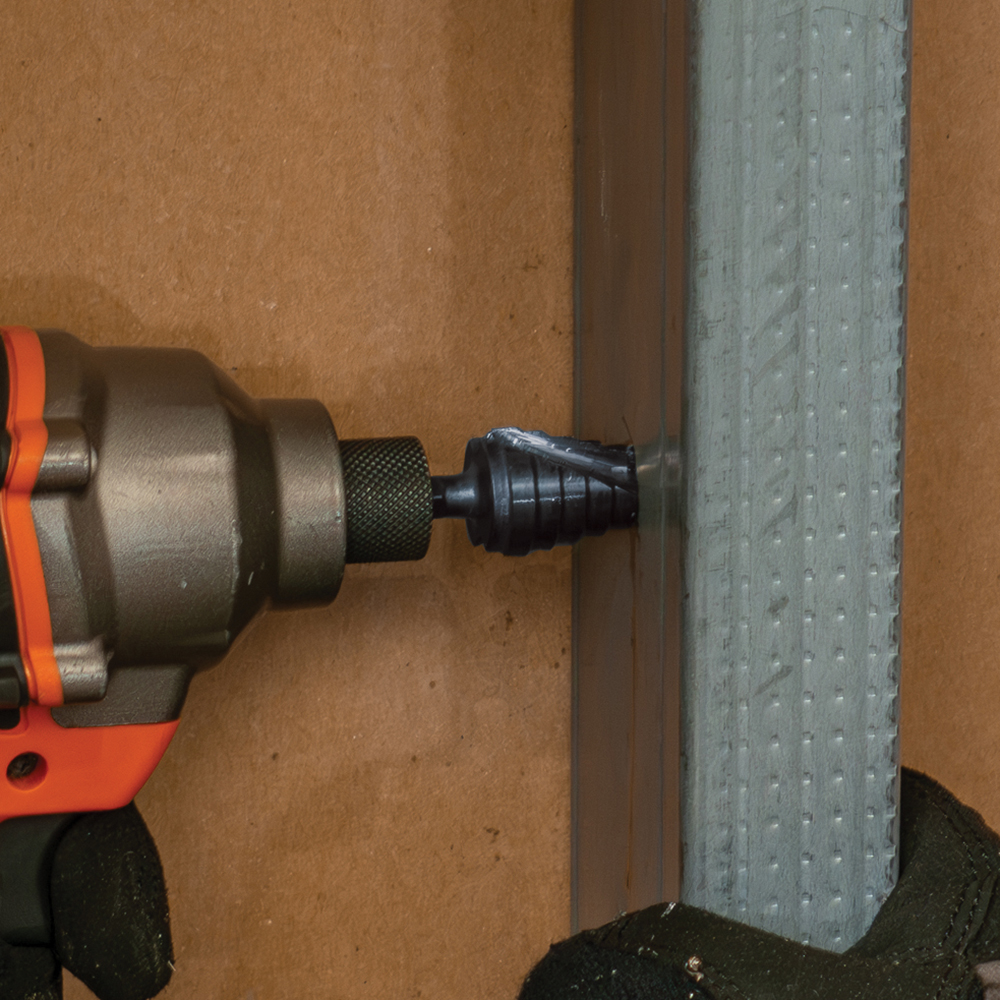

- For use on steel (up to 16 gauge), wood, plastic, and aluminum

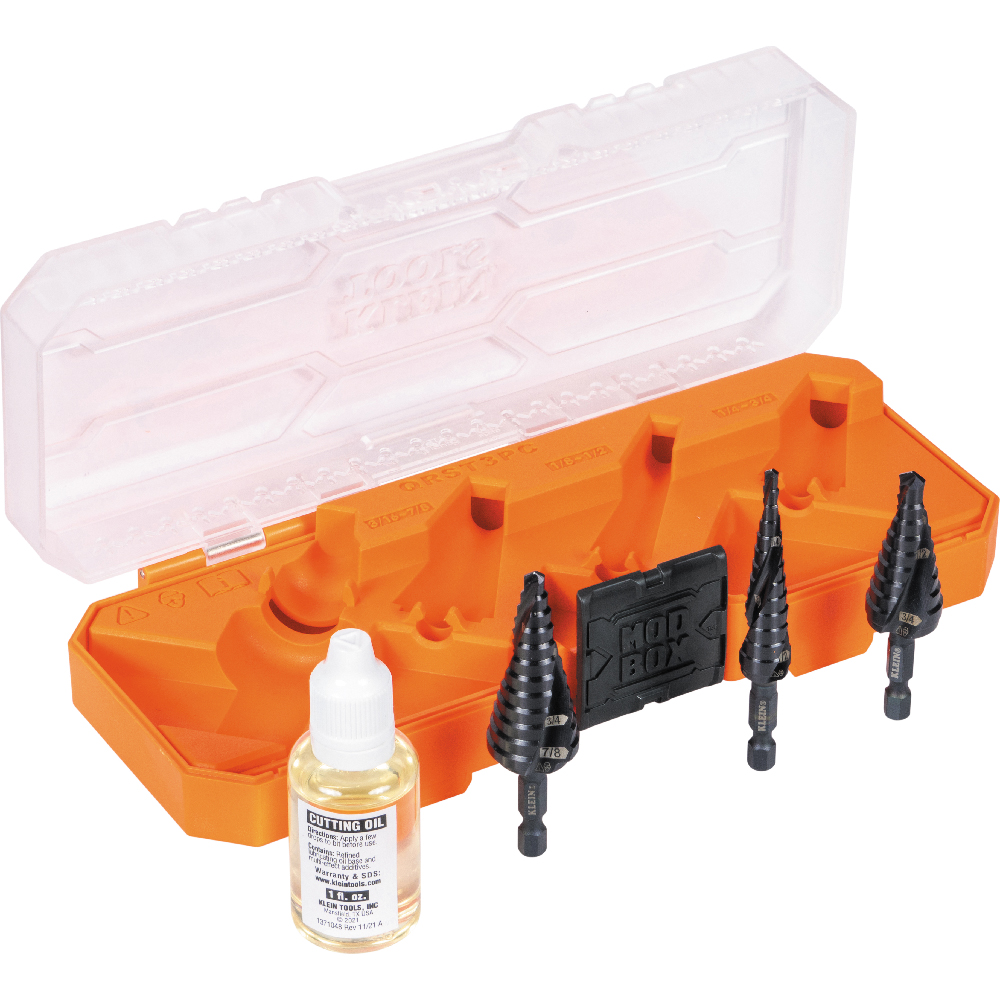

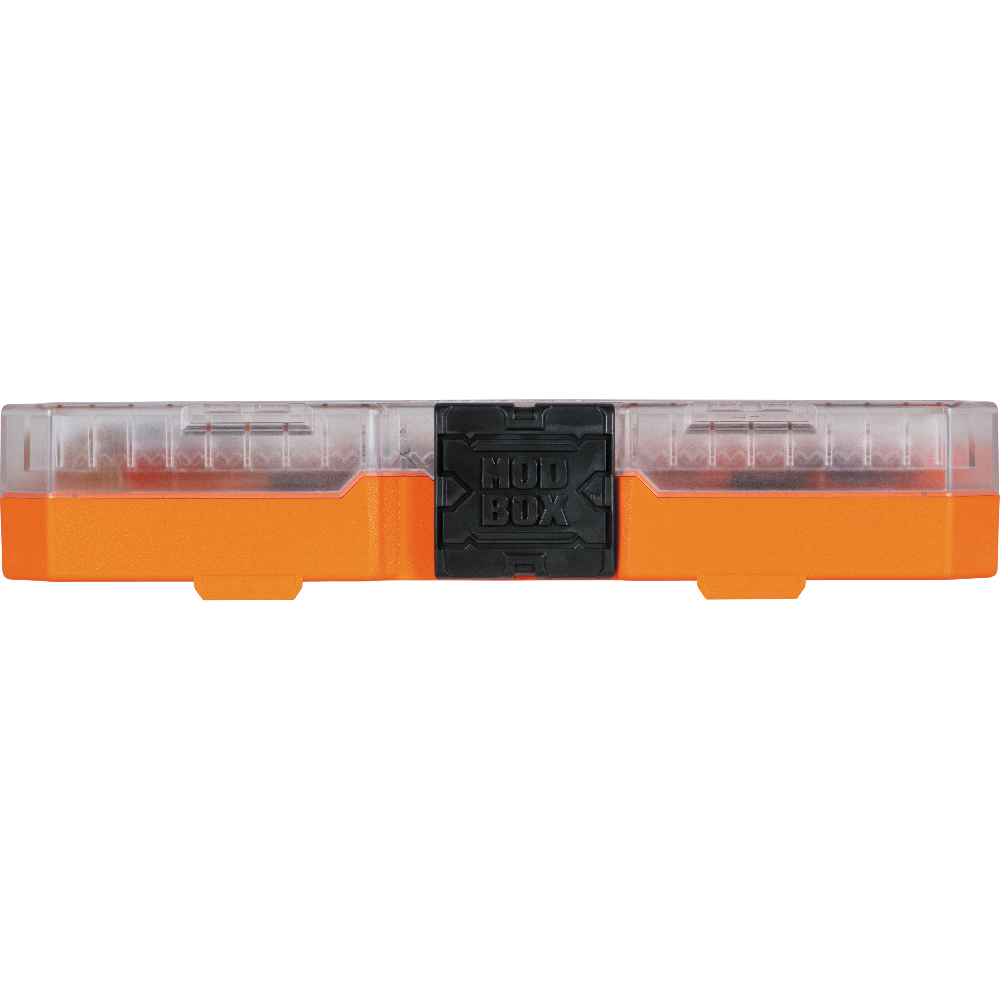

- The compact, modular case comes with cutting oil and is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment

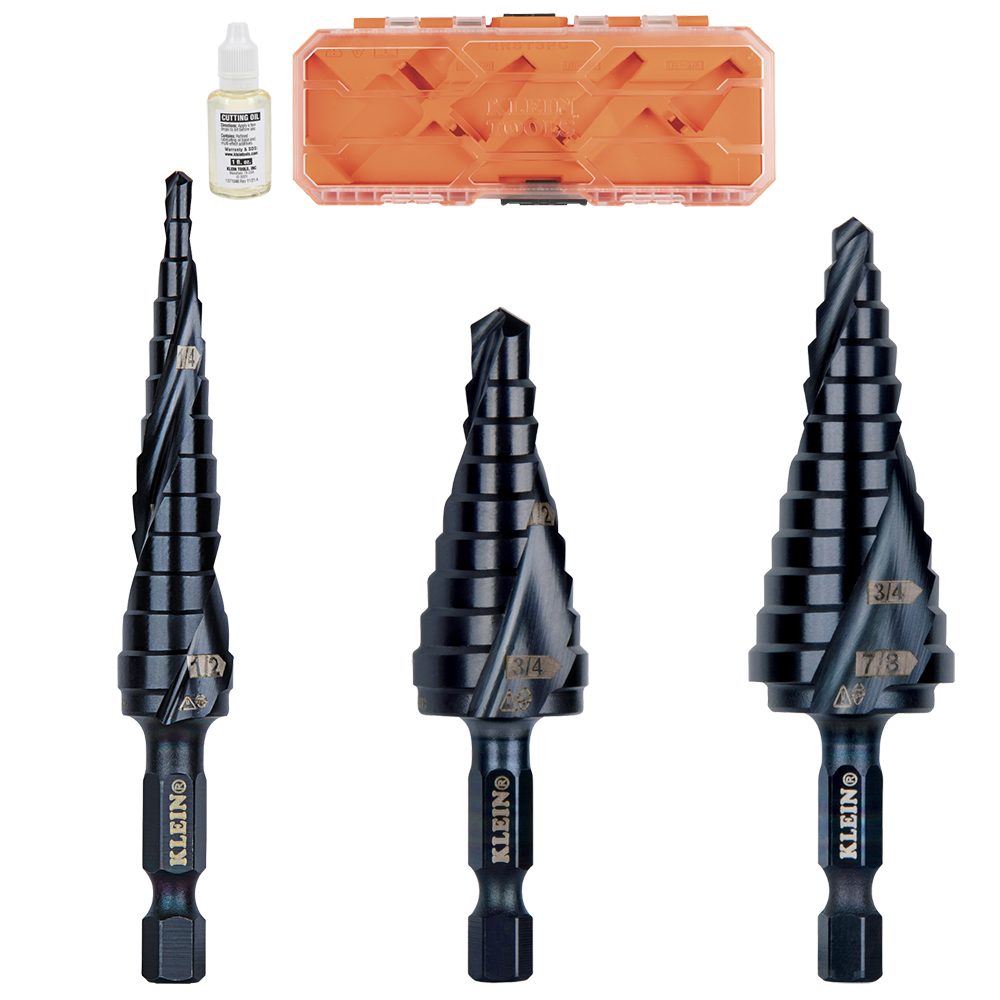

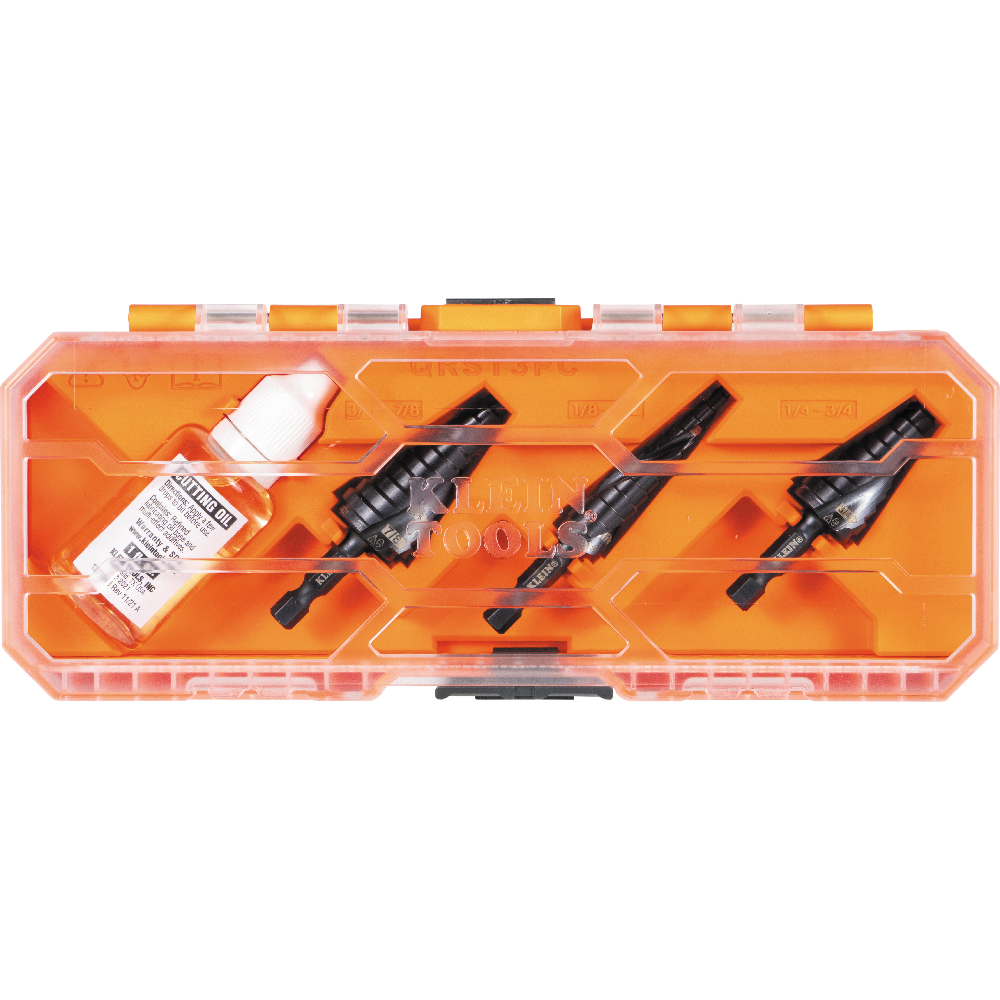

The All Purpose Quick Release Step Bit Set contains three commonly used bits sized 1/2-Inch, 3/4-Inch, and 7/8-Inch plus cutting oil. These Dual Spiral Flutes help pull the step bit through the material for faster cutting. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. Impact rated, the 1/4-Inch hex shank provides a firm, positive grip and allows quick and convenient usage with an impact driver and a drill. The compact, modular case is designed to nest neatly within MODbox™ toolboxes and on the MODbox™ Case Adapter Side Rail Attachment.
Specifications
Type:
Step Drill Bit
Application:
Multi-Material Drilling
Special Features:
Modular Case, Aluminum Titanium Nitride Coating; Dual Spiral Fluting; Cutting Oil Included
Shank Type:
1/4'' Hex
Flute Type:
Spiral
Overall Length:
0.5'' to 0.88'' (1.3 to 2.2 cm)
Overall Height:
2.8'' to 3.4'' (7.1 to 8.6 cm)
Overall Width:
0.5'' to 0.88'' (1.3 to 2.2 cm)
Material:
High Speed Steel
Coating:
Aluminum Titanium Nitride (AlTiN)
Quick Reference:
#1, #3, #14
Number of Holes:
13, 9, and 12
Increment:
1/32'' (0.8 mm); 1/16'' (1.6 mm); 1/16'' (1.6 mm)
Size:
1/8'' to 1/2'' (3.2 to 12.7 mm); 1/4'' to 3/4'' (6.4 to 19.1 mm); 3/16'' to 7/8'' (4.8 mm to 22.2 mm)
Weight:
1.1 oz (31 g) to 2.24 oz (64 g)
UPC:
783423010008
